AX Series for SharePoint 2010 Deployment Guide
12

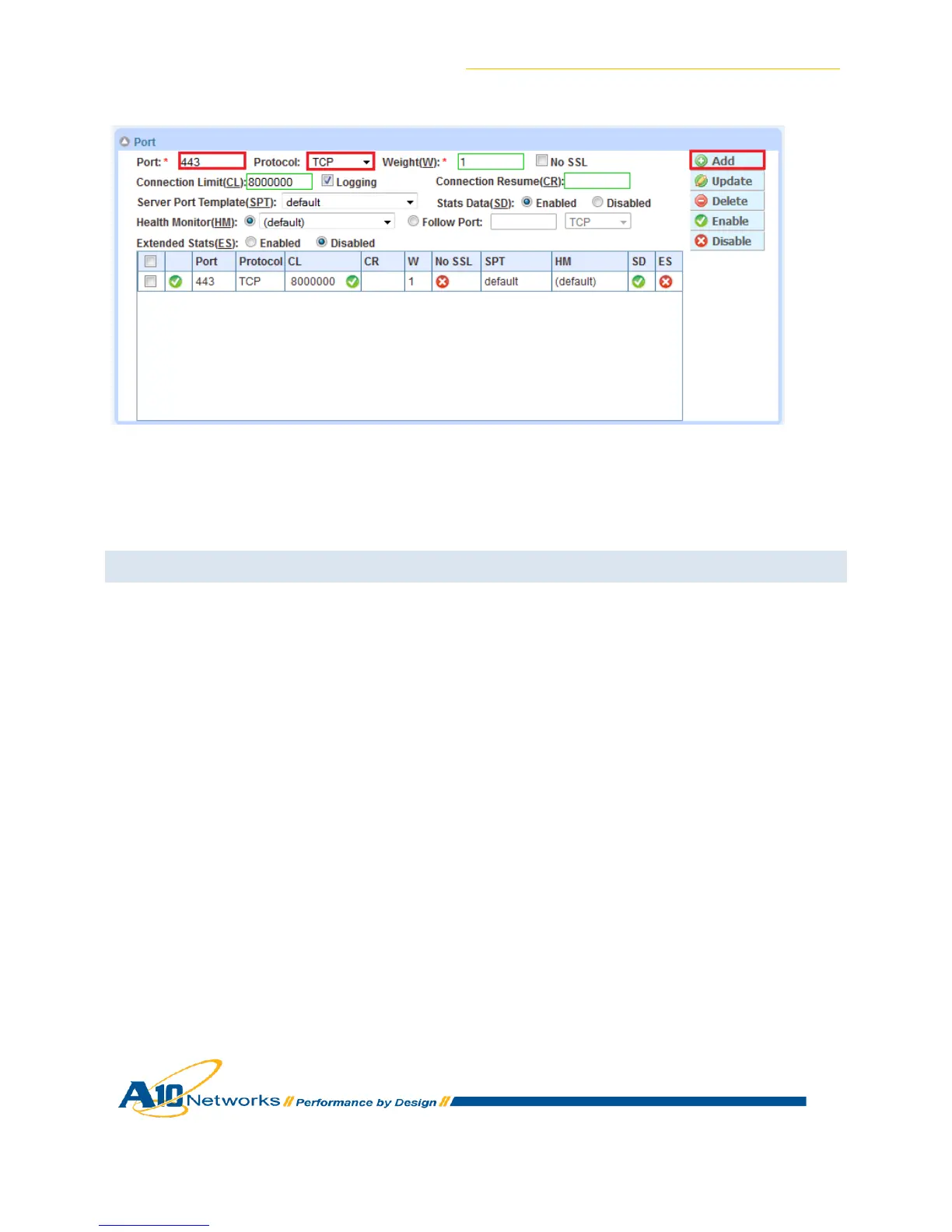

Figure 5: Real Server Port Configuration
7. Click OK and then click Save to store your configuration changes.
8.2 HEALTH MONITOR CONFIGURATION
The AX series automatically initiate the health status checks of real servers (ICMP) and service ports
(TCP Health Check). This provides clients assurance that all request go to functional and available
servers. If a server or a port does not respond appropriately to a health check, the server will be
temporarily removed from the list of available servers. Once the server is restored and starts responding
appropriately to the health checks, the server will be automatically added back to the list of available
servers.
For higher availability Microsoft recommends the test IIS servers with a real http “GET” request.
1. Navigate to Config Mode > SLB > Server Port > Health Monitor.
2. Click Add.
3. For the health monitor Name, enter “SharePoint HC”.
4. For the Type, select “HTTP”.
5. Click OK and then continue with the Service Group configuration.
