AX Series for SharePoint 2010 Deployment Guide
17
8.5 SOURCE IP PERSISTENCE
The AX series can support different modes of persistence; such as Cookie persistence, Destination IP
persistence, Source IP persistence, and SSL session ID persistence. The purpose of persistence is to
direct traffic from the same client to the same server.
This deployment guide focuses on Source IP Persistence in the basic SharePoint configuration. Cookie
persistence configuration will be featured within the Advanced SharePoint section.

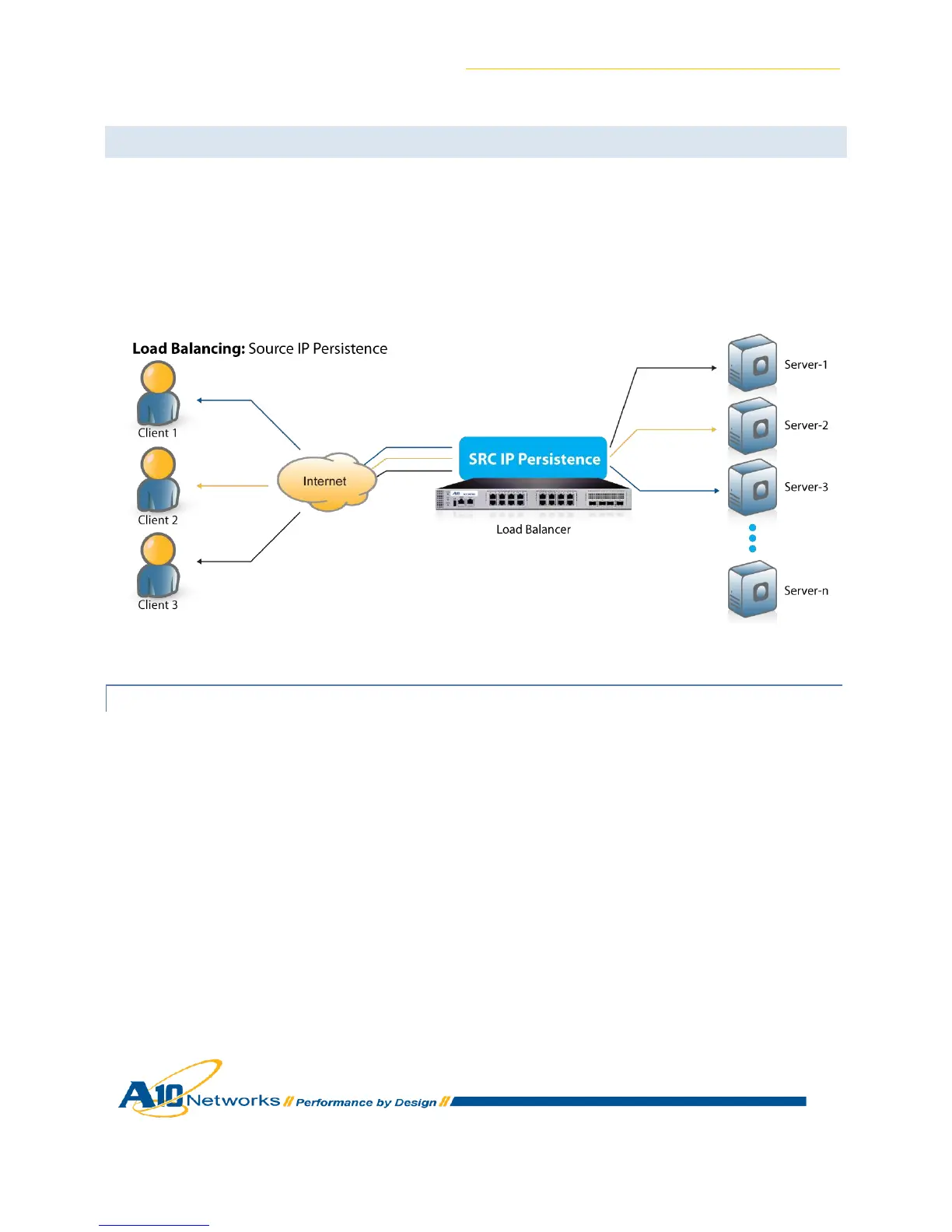

Figure 13: Source IP Persistence
8.5.1 CREATE IP PERSISTENCE TEMPLATE
1. Navigate to Config Mode> Template > Persistent > Source IP Persistence.
2. Click Add.
3. Enter the Source IP Persistence name.
Example: “Source IP Persistence”
4. Click the Match Type drop-down menu and select “Port”.
5. Leave the Timeout set to 5 minutes (Default).
