8.4 VIRTUAL SERVER CONFIGURATION
This section demonstrates how to configure the VIP with the AX Series. Adding the virtual server ports
within the AX Series will generate a virtual service list based on the protocol type selected.
1. Navigate to Config Mode > SLB > Virtual Server > General.
2. Within the General section, enter the following required information:
 Name: “WS-VIP”
 IP Address or CIDR Subnet: 172.16.1.200

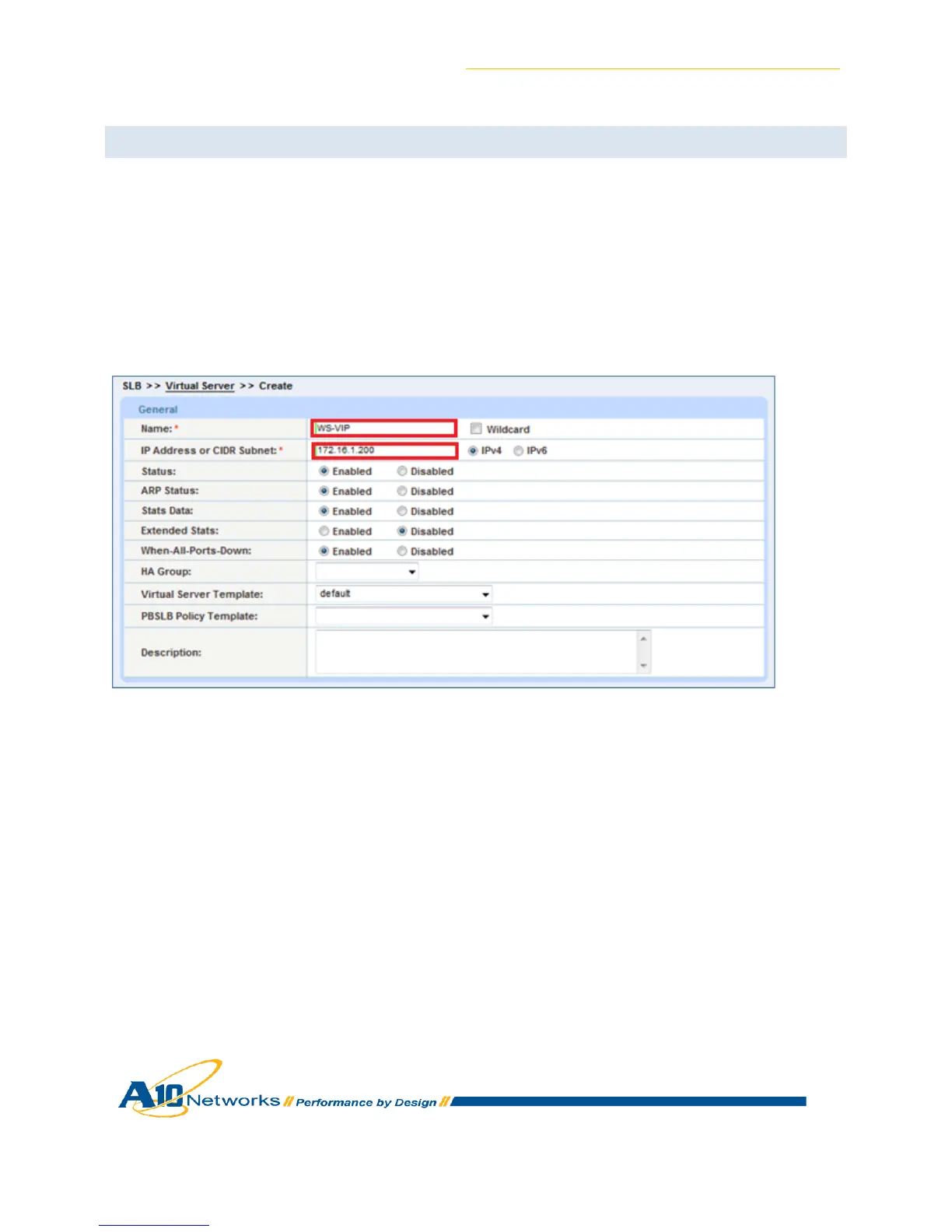

Figure 9: Virtual Server or VIP Configuration
3. Navigate to Config Mode > SLB > Virtual Server > Port.
4. Click Add.
5. Enter the Virtual Server Port information:
 Type: from the drop-down menu, select “TCP”.
 Port: “443”
 Service Group: From the drop-down menu, select “SharePoint Servers” to bind the virtual
server to the real servers.
