AAON RN Series User Manual

119
Table 57 - 55, 65, and 75-140 ton Energy Recovery Wheel Filters
Feature 1A
Quantity / Size
Type
F, G, H, J, Q, R, S, T
10 / 24” x 24” x 2”
Pleated, MERV 8
With Energy Recovery Wheel
Exhaust Air Filters, Feature 6A - D,
F, G, H
OA - 10 / 24” x 24” x 2”
EA - 14 / 25” x 16” x 2”
U, V, W, Y, Z, 1, 2, 3
14 / 24” x 20” x 2”
With Energy Recovery Wheel
Exhaust Air Filters, Feature 6A - D,
F, G, H
OA - 14 / 20” x 24” x 2”
EA - 14 / 25” x 16” x 2”
6-8 and 10 ton Units
9 and 11-15 ton Units
16-25 and 30 ton Units
26, 31, and 40 ton Units
50, 60, and 70 ton Units
Two Coils with Two Filter Layouts

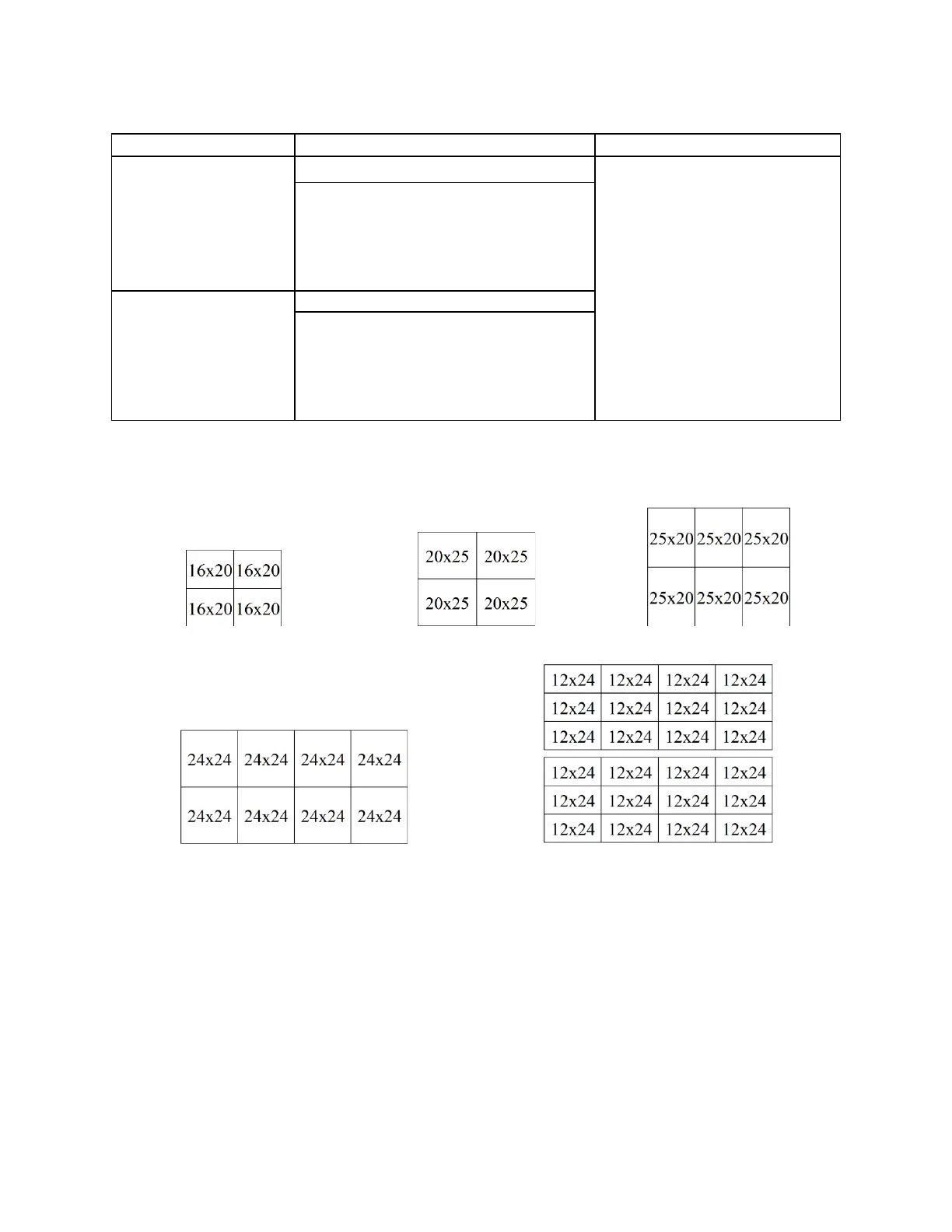

Figure 60 - RN Series 6-50, 60, and 70 ton Standard Filter Layouts
All dimensions are in inches and are height x length.
Layouts are viewed from the upstream side of the cooling coil.

AAON RN Series Specifications

General

Category	Heat Pump
HSPF	Up to 10.0
Refrigerant	R-410A
Compressor Type	Scroll
Efficiency	High
Series	RN
Voltage Options	208-230/460V
Unit Weight	Varies with model
Dimensions	Varies with model
