AAON RN Series User Manual

98
Table 29 - 6-8 and 10 ton Gas Connections
Table 30 - 9, 11, 13, & 15 ton Gas
Connections
Model
Option
B2
Input
MBH
Connections
Quantity
Size
F
195.0
1
3/4” NPT
G
292.5
6
390.0
Table 31 - 14, 16-25 and 30 ton
Gas Connections
Table 32 - 26 and 31-70 ton
Gas Connections
*Obsolete
Table 33 - 55, 65 and 75-140 ton Gas
Connections
Model
Option
B2
Input
MBH
Connections
Quantity
Size
M
800
2
1” NPT
N
1600
2
1-1/2”
NPT
P
2400
After verifying gas inlet pressure and
manifold pressure the service technician shall
time the gas flow rate through the gas meter
with a stopwatch to verify the gas input rate.
Unit nameplate input rate value has been
calculated at the altitude where the unit was
shipped. Above 2,000 ft the input rate is
adjusted 4% for every 1,000 ft.

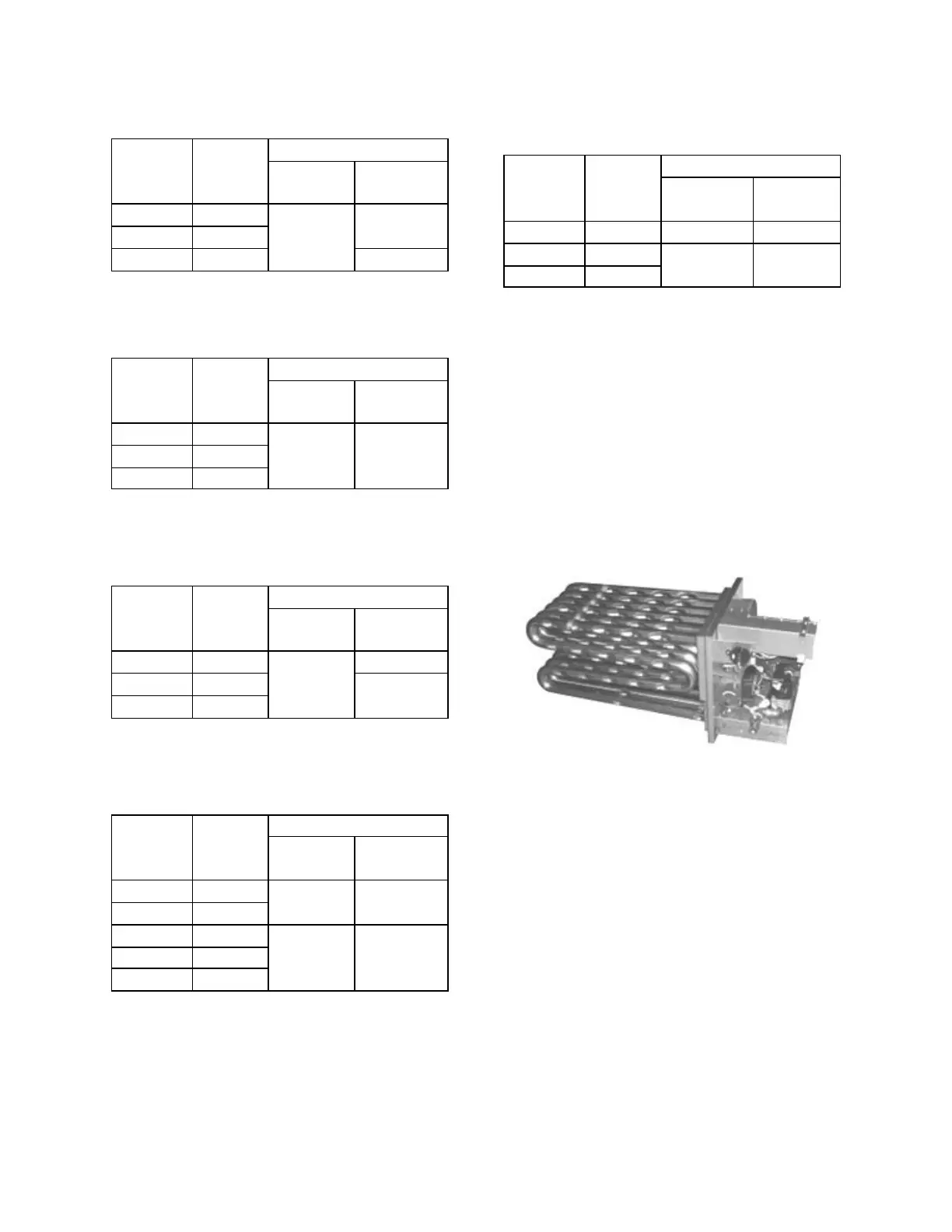

Figure 55 - RN Series Gas Heat Exchanger
Model
Option
B2
Input
MBH
Connections
Quantity
Size
2
90.0
1
1/2” NPT
K
150.0
L
210.0
3/4” NPT
Model
Option
B2
Input
MBH
Connections
Quantity
Size
4
270
1
3/4” NPT
8
405
1” NPT
C
540
Model
Option
B2
Input
MBH
Connections
Quantity
Size
*A
540
2
3/4” NPT
*B
780
C
540
1
1-1/2”
NPT
D
810
E
1080

AAON RN Series Specifications

General

Category	Heat Pump
HSPF	Up to 10.0
Refrigerant	R-410A
Compressor Type	Scroll
Efficiency	High
Series	RN
Voltage Options	208-230/460V
Unit Weight	Varies with model
Dimensions	Varies with model
