44
End Flashing Installation
On RN Series E cabinet units that are 142”
wide (RN-55, 65, 75, 90, 105, 120, 130, 140)
the cabinet width will overhang the shipping
trailer on each side.
In order to secure and protect the unit during
transit the sheet metal end flashings have
been removed from the unit. The slot created
at the base of each end of the unit allows the
unit to set firmly on the trailer deck.
Sheet metal flashings are shipped loose with
the unit and once the unit is set into place the
flashings must be installed on each end of the
unit to complete the finished seal at the base.
The flashings are unit specific and designed
to cover the slot at each end of the unit to
prevent water run-off into the curb.
Failure to attach and seal the end of unit with
the flashings may result in water leakage into
the curb.

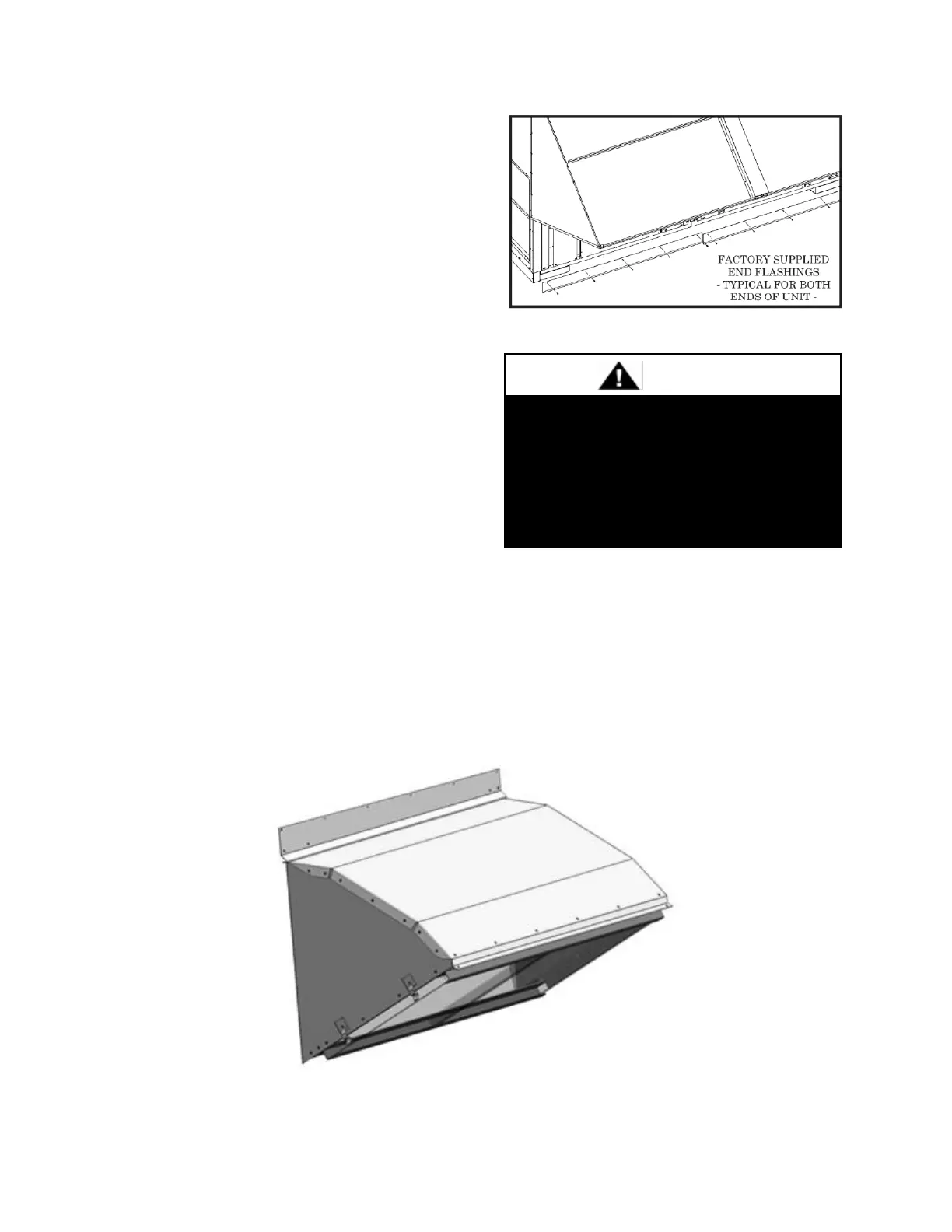

Figure 24 - Factory Supplied End Flashings
Metal Mesh Filters (6-25 and 30 ton
Units)
Metal mesh outside air filters require
installation of the filter rack on the intake of
the rain hood.
Clips which hold the metal mesh filters in the
filter rack face outward.
Figure 25 - Rain Hood with Metal Mesh Filter Rack Installation
In order to prevent water leakage into
the roof curb, the factory provided
sheet metal flashings MUST BE
attached to the unit base to cover the
shipping slots at both ends of the unit.
