LCD SCREENS
RSMD Technical Guide
12
LCD Display Screen & Navigation
Keys
The LCD display screens and buttons allow you to view status and
alarms, and enable force modes. See Figure 4, below and refer to
Table 2 for descriptions.
LCD Display Screen & Navigation Keys

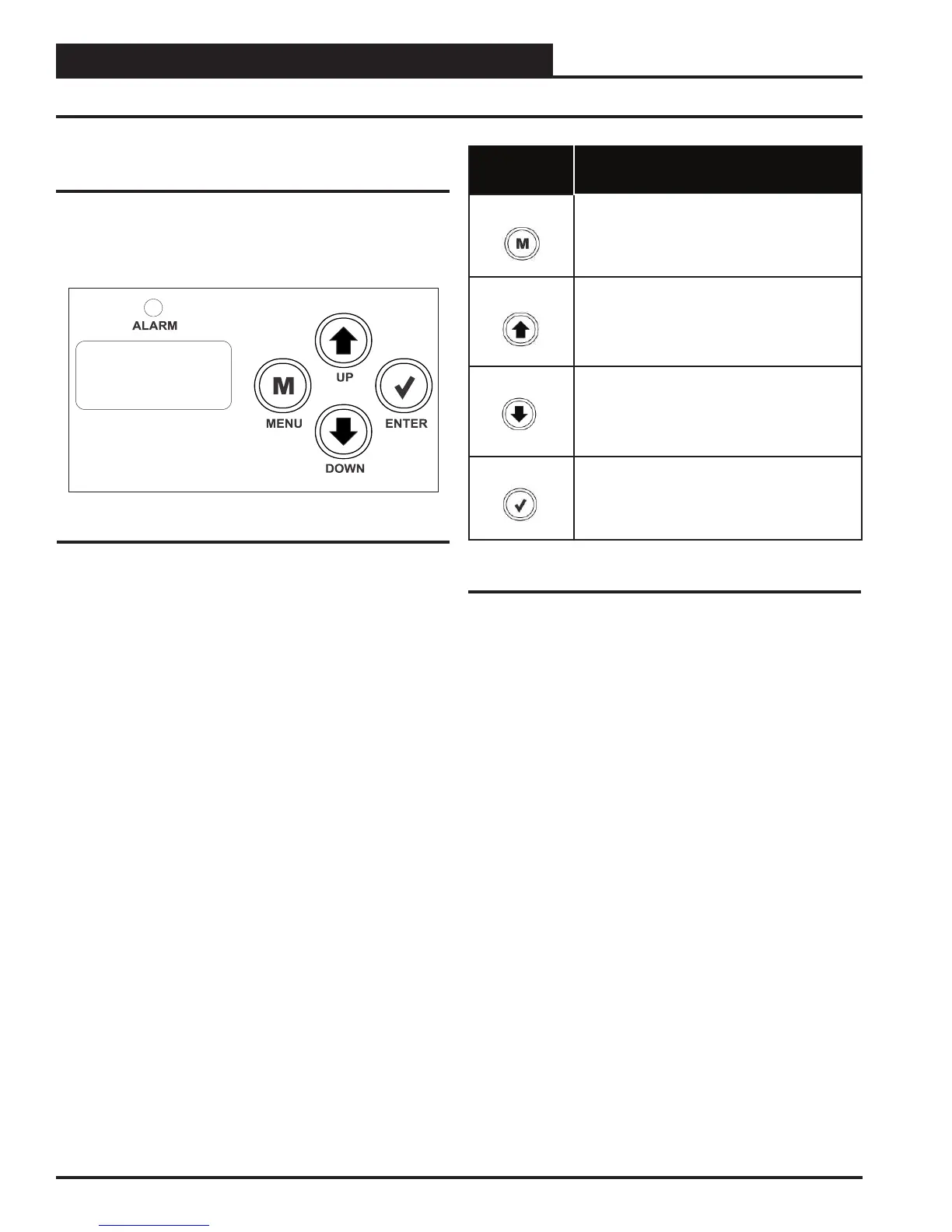

Figure 4: LCD Display and Navigation Keys
Table 2: Navigation Key Functions
NAVIGATION
KEY
KEY FUNCTION
MENU
Use the MENU key to move through
screens within Main Menu categories and
return to the Main Menu while at other
screens.
UP
Use this key to adjust setpoints and change
confi gurations.
DOWN
Use this key to adjust setpoints and change
confi gurations.
ENTER
Use the ENTER key to navigate through the
Main Menu Screen categories.
