RSMD Technical Guide
WIRING
7
RSMD Outputs Wiring
24VAC
GND
Line Voltage
Size Transformer For
Correct Total Load.
RSMD = 18 VA
OE370-26-RSMD
RSM FOR DIGITAL
COMPRESSORS
NOTE:
ALL RELAY OUTPUTS ARE NORMALLY
OPEN AND RATED FOR 24 VAC POWER
ONLY - 1 AMP MAXIMUM LOAD
REVERSING VALVE
COMPRESSOR 2 ENABLE
COMPRESSOR 1 ENABLE
24 VAC ONLY
RLY1
RLY2
COMM
RLY4
RLY3
CONDENSER 1 ENABLE
10A250VAC ~
5A30VDC
SA
VDE
G5Q-1A4 OMRON
DC12V
CHINA
RLY5
CONDENSER 2 ENABLE
DIGITAL
COMPRESSOR 1
+
GND
UNLOAD
24 VAC
DIGITAL
COMPRESSOR 2
+
GND
UNLOAD
COM
+
COM
+
CONDENSER
SIGNAL 1
M
ENTER
UP
DOWN
ALARM
MENU
OE370-26-RSMD
RSM FOR DIGITAL
COMPRESSORS
AAON No.: V61520
+24 VAC
GND
RELAY CONTACT
RATING IS 1 AMP
MAX @ 24 VAC
CONDENSER 1
COMP 1
COMP 2
ANALOG OUTPUTS
REVERSING VALVE
COMMON
RELAY OUTPUT
TERMINALS
www.aaon.com
WattMaster Overlay
# 000072 Rev1DSW
CONDENSER 1
CONDENSER 2
GND
24 VAC
POWER ONLY
WARNING!
POLARITY
MUST BE
OBSERVED
OR THE
CONTROLLER
WILL BE
DAMAGED
CONDENSER 2
SUCTION
PRESSURE 1
SENSOR
HEAD
PRESSURE 1
SENSOR
TEMP
SENSORS
BINARY
INPUTS
+5 V
+5 V
COMP DIS TEMP 1
COMP STATUS 1
SP-1
HP-1
COMP DIS TEMP 2
COMP 2STATUS
GND
GND
OUTSIDE COIL TEMP / POWF
EMERGENCY SHUTDOWN
GND
LEAVING WATER TEMP
GND
SUCTION
PRESSURE 2
SENSOR
HEAD
PRESSURE 2
SENSOR
+5 V
+5 V
SP-2
HP-2
GND
GND
R+
SHD
T-
HH COMMUNICATIONS
E-BUS
R+ SHD T-
DUAL E-BUS
EXPANSION
Connects To VCC-X
or VCCX2 Loop
Communications
Connector When Used
On A Split System.
Connect to
VCC-X or
VCCX2 Controller
CONDENSER
SIGNAL 2
3Y1
2 +
1 COM
WSE BYPASS
VALVE ACTUATOR
Belimo Actuator Wiring
Shown. Consult Factory
For Other Manufacturer
Wiring Instructions
AOUT1
AOUT2
GND

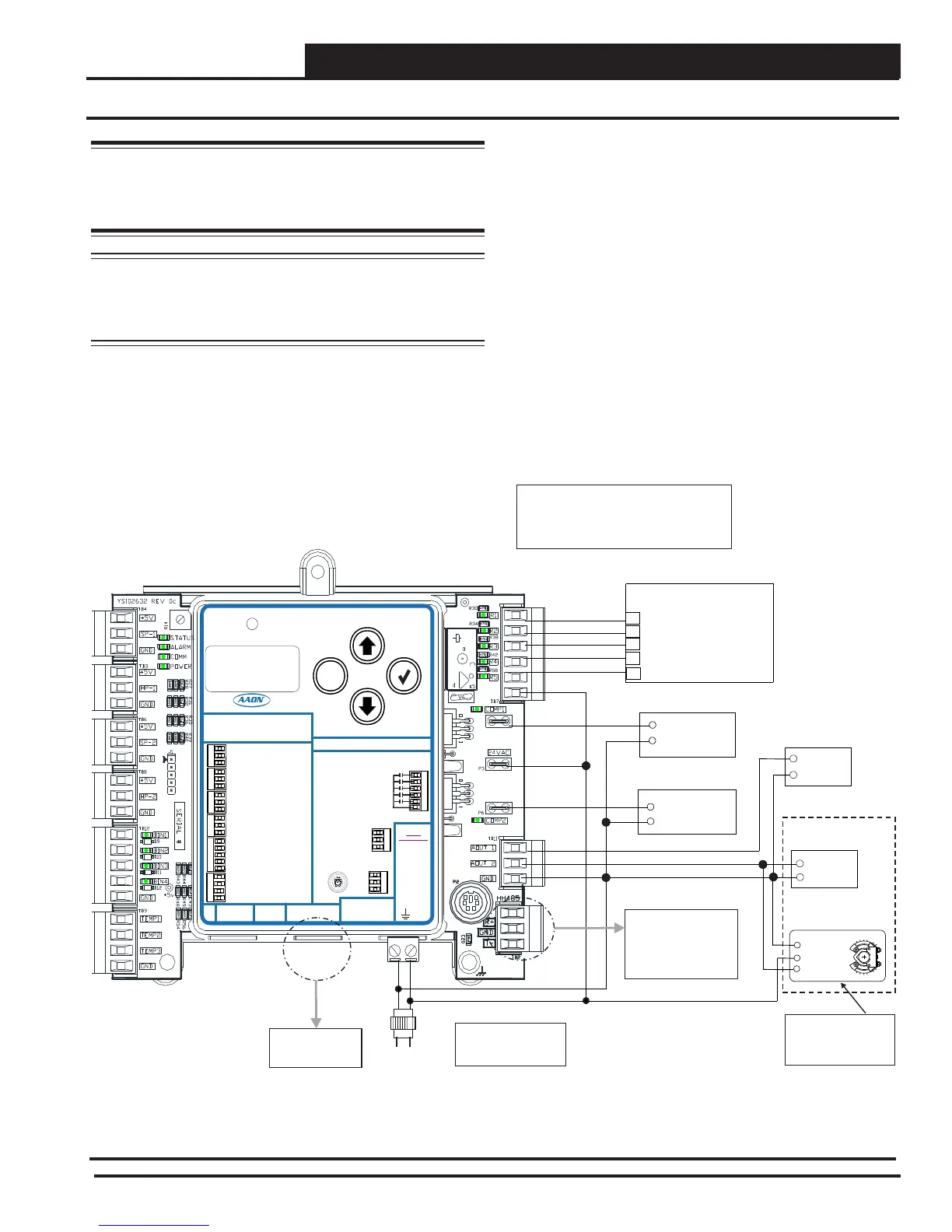

Figure 3: RSMD Outputs Wiring
CAUTION: The Shraeder port used for installation of the
suction pressure transducer should be located in a vertical
position of the suction line to prevent refrigerant oil from
accumulating in the sensor.
NOTE: If there are two Compressors on a single circuit
(a tandem circuit), Suction Pressure 2, Head
Pressure 2, and Condenser Signal 2 would not be
used.
Head Pressure Control
The Head Pressure Transducers are used to measure Head Pressure at
the discharge line. This Head Pressure is used to drive the Condenser
Fans with a 0-10 VDC output signal or valve with a 2-10 VDC output
signal to maintain a given Head Pressure Setpoint.
Compressor Discharge Sensors
The Digital Compressor Discharge Temperature Sensor monitors
the discharge temperature from the Digital Compressor to protect
against overheating.
Leaving Water Temperature Sensor
The Leaving Water Temperature Sensor is used to measure the
Leaving Water Temperature when used on a WSHP unit.
