RSMD LCD SCREENS
RSMD Technical Guide
18
CONFIG
ADDRESS
1(152)
RSMD
1067vxxx
E-BUS
+0
SOFTWARE
1067vxxx
Hold for 5 seconds.
DIAGNSTC
ENTER TO
EXIT

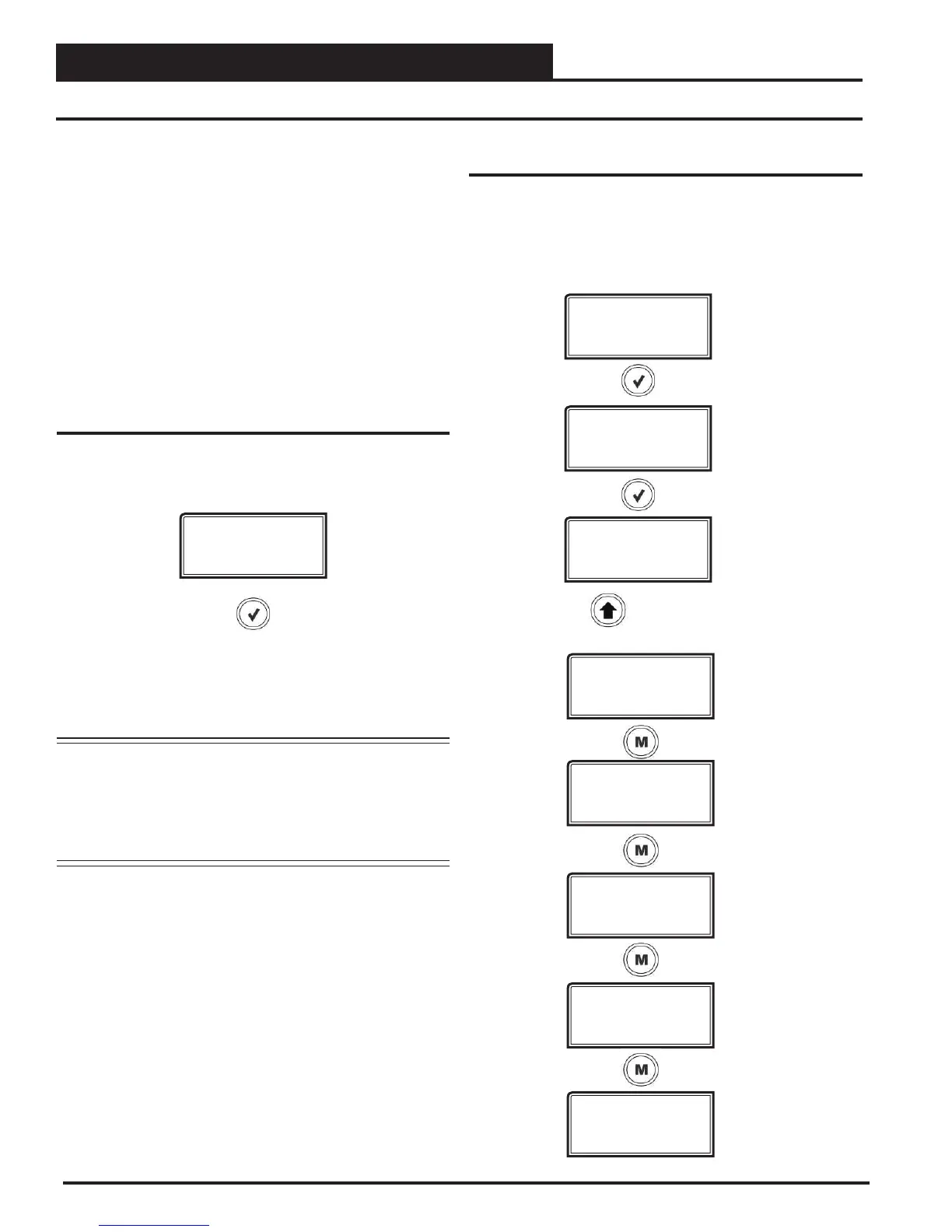

Protected Screens Map
Refer to the following map when navigating through the LCD
Protected Screens. From the RSMD Screen, press
<ENTER>
twice to get to the Software Screen. Then hold the <UP> button
for 5 seconds. To scroll through the rest of the screens, press the
<MENU> button.
Alarm History & Protected Screens
Alarm History Screens
The ALARM HISTORY Screen displays past alarms, if any, and how
long ago the last of each type occurred. From the ALARM HISTORY
Screen, press <ENTER> to scroll through the history screens.
ALARM
HISTORY
The Alarm will appear on the fi rst line and the second line will display
how long ago each alarm last occurred. As a result, the alarms listed
on the ALARMS screen will be abbreviated as follows in order of
the way they are listed in the prior ALARMS screen section.
NOTE: The screen will display minutes for the fi rst 60 minutes
of alarm occurrence, hours for the next 72 hours of
alarm occurrence, and days for the next 30 days of
alarm occurrence. After 30 days, the alarm will clear.
Alarm history is not stored in memory. So, if power
is lost, the alarms will clear.
ALARM
COUNTS
EMERGENCY SHUTDOWN: If the Emergency Shutdown binary in-
put is not activated, the compressors will shut off .
COMPRESSOR 1 FALSE ACTIVE INPUT: If the compressor relay
is off but the compressor binary active input is activated for 60 seconds,
it will cause an alarm.
COMPRESSOR 1 FALSE ACTIVE INPUT: If the compressor relay
is off but the compressor binary active input is activated for 60 seconds,
it will cause an alarm.
