RSMD Technical Guide
APPENDIX: CONDENSER OPTIONS
29
Default: Two Condenser Operation

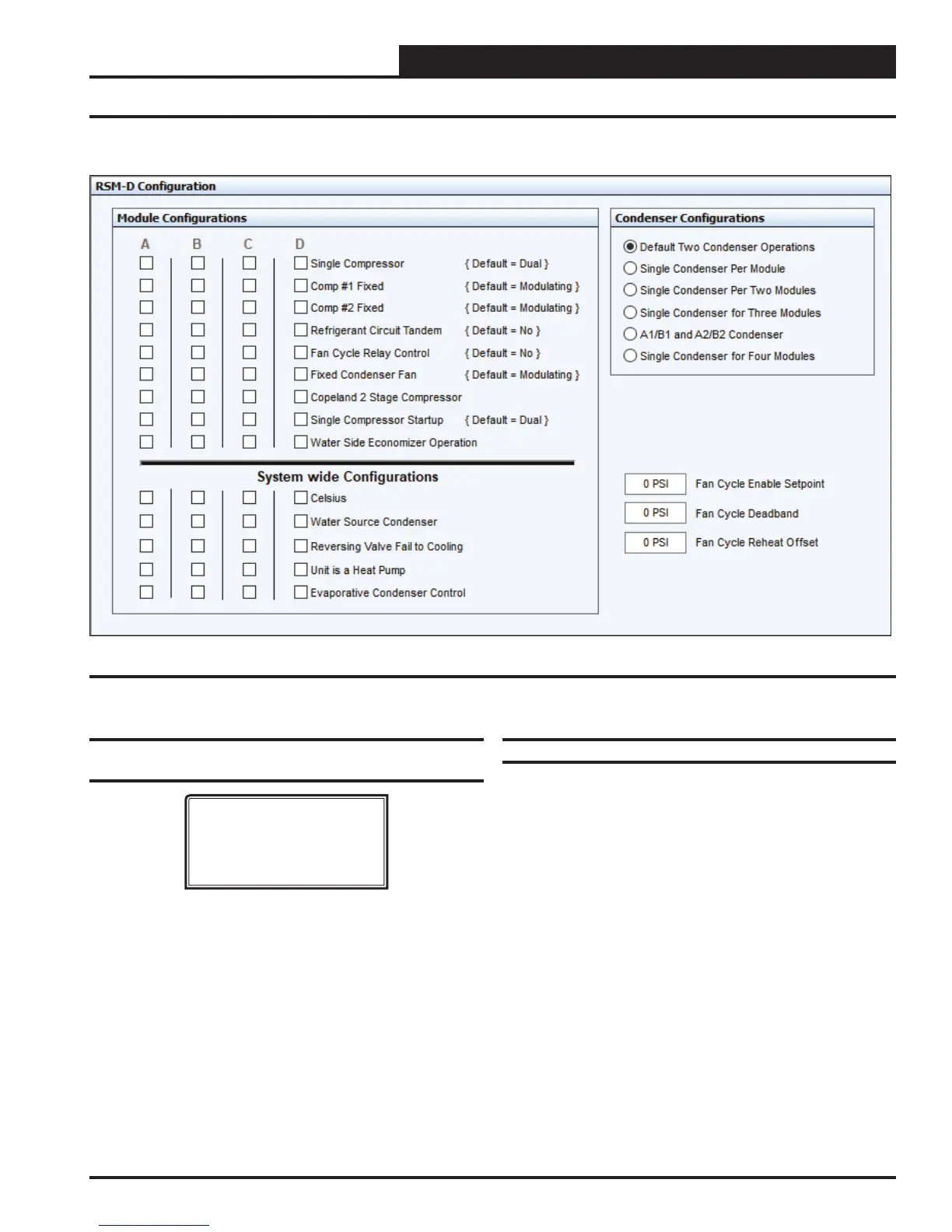

Figure 7: Prism 2 Condenser Confi guration
RSMD Main Confi guration Screen #2 -
Condenser Options
RSMD CONFIGURATION
Condenser Options
2 Cond per RSMD
USE < or > TO CHANGE
Select the “2 Condensers for per RSMD” option on the above Hand
Held Service Tool Screen.
HVAC Unit Application
The Two Condenser per RSMD confi guration is used with the
following HVAC units:
• D-BOX 26-40 Ton
• C-BOX 16-20 Ton
• B-BOX
