RSMD Technical Guide
APPENDIX: CONDENSER OPTIONS
31
Single Condenser Per Module

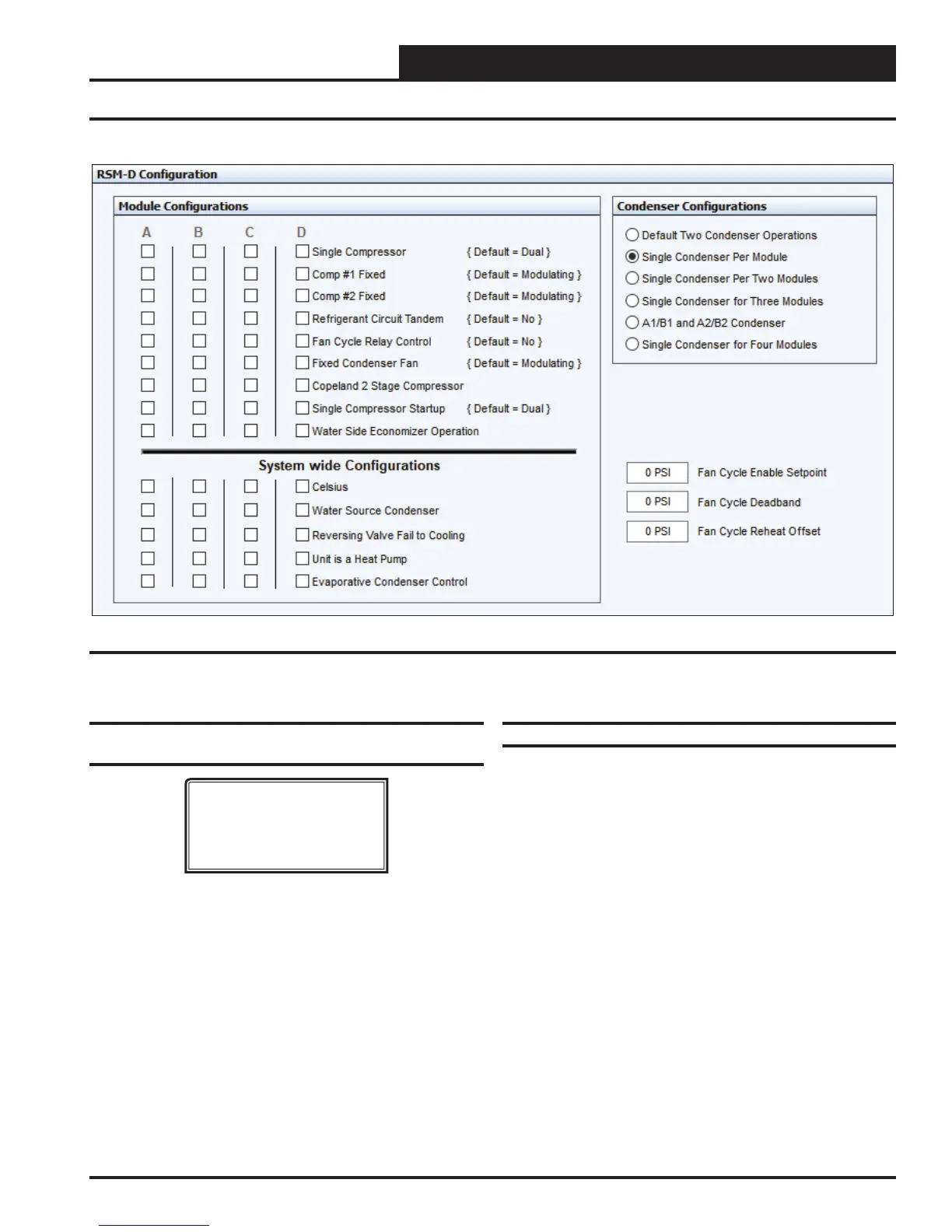

Figure 9: Prism 2 Condenser Confi guration
RSMD Main Confi guration Screen #2 -
Condenser Options
RSMD CONFIGURATION
Condenser Options
1 Cond for 1 RSMD
USE < or > TO CHANGE
Select the “1 Condenser for 1 RSMD” option on the above Hand
Held Service Tool Screen.
HVAC Unit Application
The One Condenser per RSMD confi guration is used with the
following HVAC units:
• B-BOX Air to Air Heat Pump
• B-BOX WSHP
• C-BOX 25-30 Ton
• C-BOX Air to Air Heat Pump
• C-BOX WSHP
To Next Page
