RSMD2R Technical Guide
LCD SCREENS

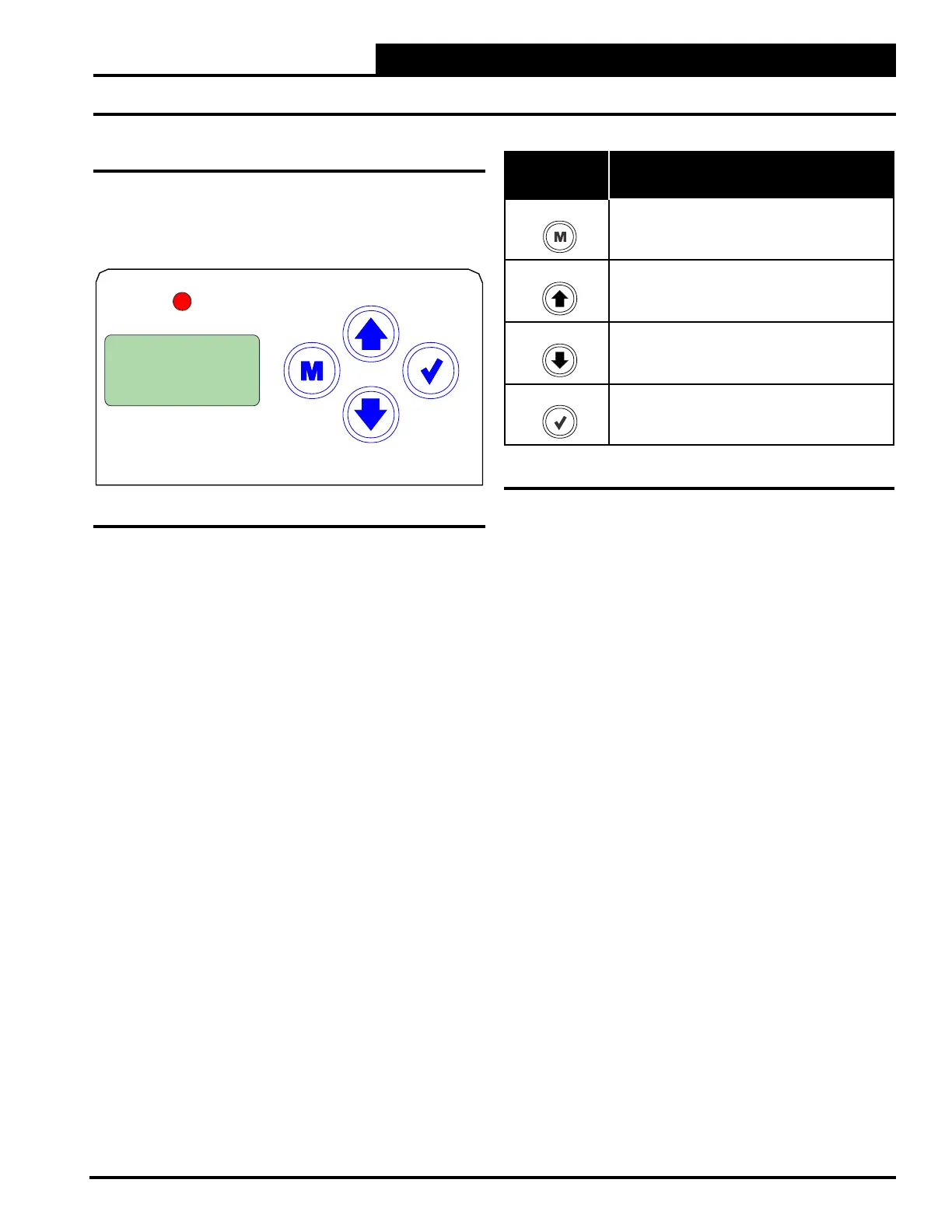

LCD Display Screen and Navigation Keys
LCD Display Screen & Navigation Keys
The LCD display screens and buttons allow you to view status
and alarms, and enable force modes. See Figure 4, this page
and refer to Table 3, this page for descriptions.
Navigation
Key
Key Function
MENU Use the MENU key to move through screens
within Main Menu categories and return to the
Main Menu while at other screens.
UP Use this key to adjust setpoints and change
congurations.
DOWN Use this key to adjust setpoints and change
congurations.
ENTER Use the ENTER key to navigate through the
Main Menu Screen categories.
ALARM
UP
DOWN
ENTERMENU
Figure 4: LCD Display and Navigation Keys
Table 3: Navigation Key Functions
