APPENDIX A: CONDENSER OPTIONS
Single Condenser Per Module
Figure 9: Prism 2 Condenser Conguration: Single Condenser Per Module

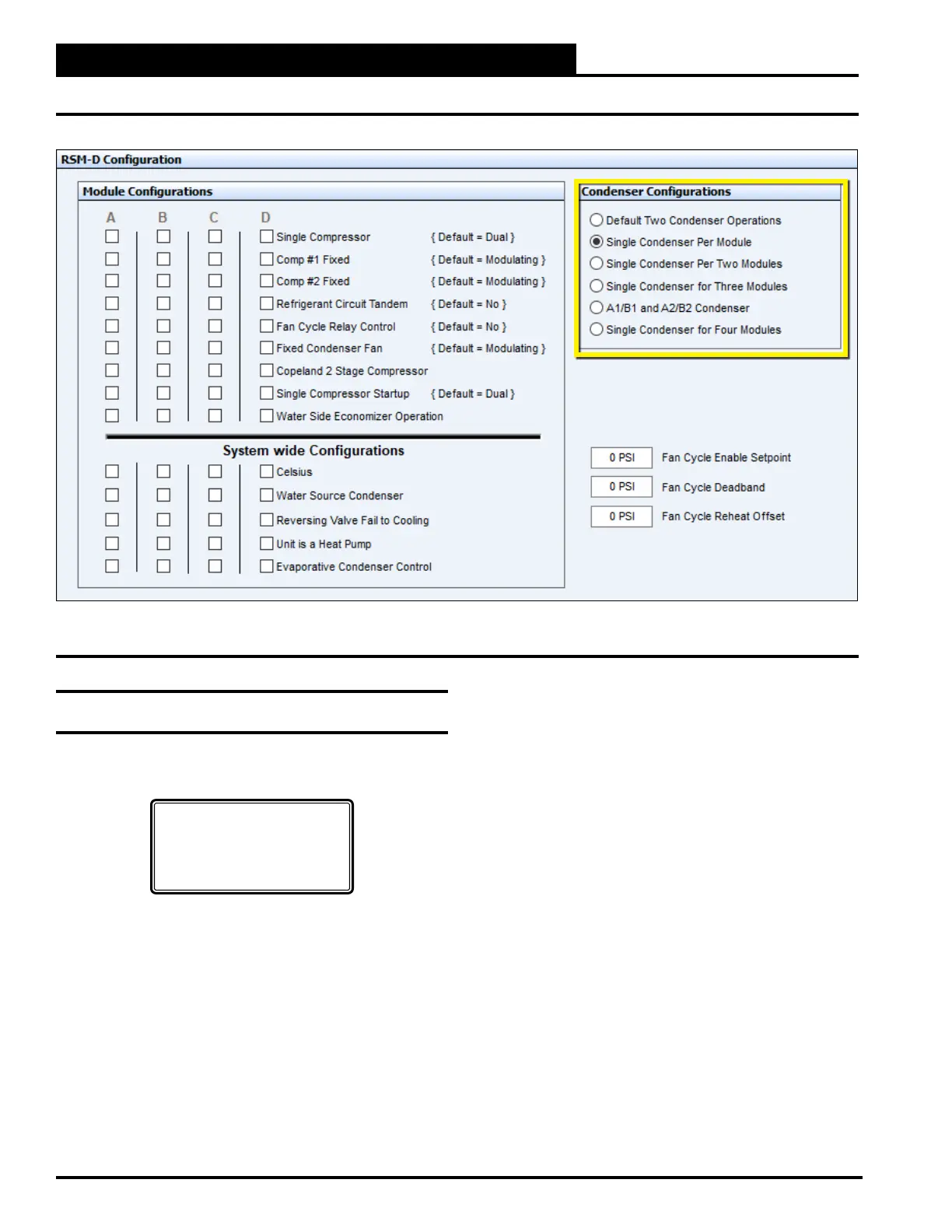

RSMD2R Main Conguration Screen #2 -
Condenser Options
Select the “1 Condenser for 1 RSMD2R” option on the above
Hand Held Service Tool Screen.
HVAC Unit Application
The Single Condenser for One RSMD2R conguration is used
with the following HVAC units:
• B-BOX Air to Air Heat Pump
• B-BOX WSHP
• C-BOX 25-30 Ton
• C-BOX Air to Air Heat Pump
• C-BOX WSHP
RSMD2R CONFIGURATION
Condenser Options
1 Cond for 1 RSMD2R
USE < or > TO CHANGE
