RSMD2R Technical Guide
APPENDIX A: CONDENSER OPTIONS
Two Condensers Per Two Modules
GND
18-30
VAC
Line Voltage
Size transformer for
correct total load.
RSMD2R = 18 VA
10A250VAC ~
5A30VDC
SA
VDE
G5Q-1A4
OMRON
DC12V
CHINA
ALARM
UP
DOWN
ENTERMENU
AAON P/N: ASM02869
+24 VAC
GND
RELAY CONTACT
RATING IS 1 AMP
MAX @ 24 VAC
CONDENSER 1
COMP 1
COMP 2
ANALOG OUT
REVERSING VALVE
COMMON
RELAY OUTPUT
TERMINALS
LABEL P/N:
G088060
COND 1
COND 2
GND
24 VAC
POWER ONLY
WARNING!
POLARITY
MUST BE
OBSERVED
OR THE
CONTROLLER
WILL BE
DAMAGED
CONDENSER 2
HEAD PRES 1
+5 V
+5 V
COMP DIS 1
COMP 1
SP-1
HP-1
COMP DIS 2
COMP 2
GND
GND
OA COIL / POWF
EMER SHDN
GND
LEAVING H20
GND
SUCTION PRES 2
HEAD PRES 2
+5 V
+5 V
SP-2
HP-2
GND
GND
R+
SHD
T-
E-BUS
R+ SHD T-
DUAL E-BUS
EXPANSION
RSMD2R
www.aaon.com
SUCTION PRES 1
Note:
All relay outputs are normally open
and rated for 24 VAC power only.
1 Amp maximum load.
24 VAC ONLY
COMPRESSOR 1 ENABLE
COMPRESSOR 2 ENABLE
CONDENSER 1 ENABLE
CONDENSER 2 ENABLE
REVERSING VALVE
Digital Compressor B1
Digital Compressor B2
RLY2
RLY1
RLY4
RLY3
RLY5
COMM
UNLOAD
24 VAC
UNLOAD
Connects to VCCX2
Loop Communications
connector when used on
a split system.
GND
+
GND
+
Only used when unit
is controlling digital
compressors

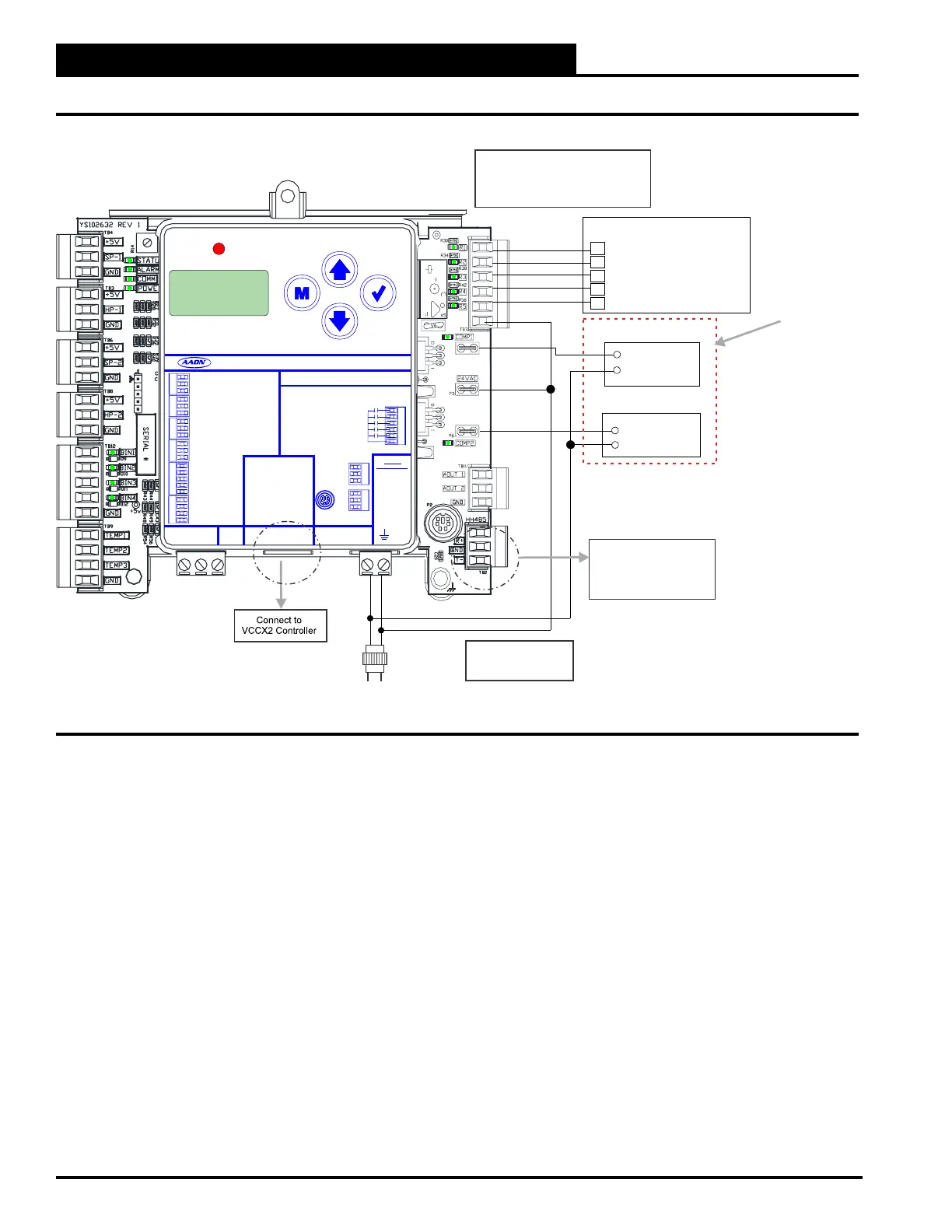

Figure 15: A2/B2 Wiring
