RSMD2R Technical Guide
LCD SCREENS

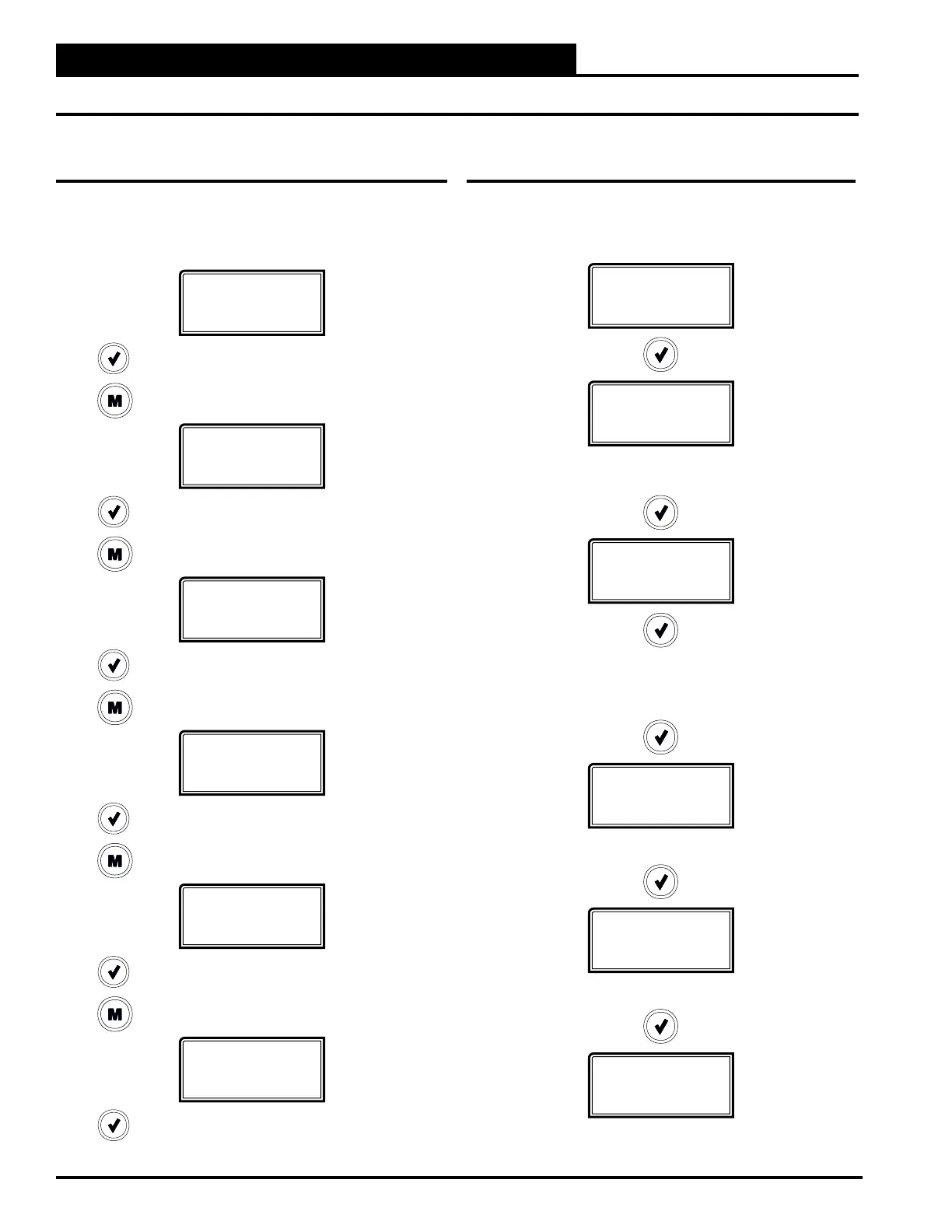

Main Screens Map and RSMD2R Module Screens
RSMD2R Main Screens Map
Refer to the following map when navigating through the LCD
Main Screens. To scroll through the screens, press the <MENU>
button.
RSMD2R Module Screens
Refer to the following map when navigating through the
RSMD2R Screens. From the RSMD2R Screen, press <ENTER>
to scroll through the screens.
SENSOR
STATUS
Press to scroll through REFRIG MODULE screens.
Press to go to SYSTEM STATUS screens.
SYSTEM
STATUS
Press to scroll through SYSTEM STATUS screens.
Press to go to SENSOR STATUS screens.
SENSOR
STATUS
Press to scroll through SENSOR STATUS screens.
Press to go to ALARMS screens.
ALARMS
Press to scroll through ALARMS screens.
Press to go to ALARM HISTORY screens.
ALARM
HISTORY
Press to scroll through ALARM HISTORY screens.
Press to go to SETPOINT STATUS screens.
SETPOINT
STATUS
Press to scroll through SETPOINT STATUS screens.
RSMD2R
1067vxxx
EBUS COMM
PACKETS
E-BUS COMMUNICATION DIAGNOSTICS
Number of COMM packets received.
SOFTWARE
1067vXXX
CURRENT SOFTWARE VERSION
You can access the protected screens from this screen by holding
the <UP> button for 5 seconds.
BOARD/EBUS
ADDRESS
CURRENT BOARD ADDRESS
#COMP
CONFIGURED
# OF COMPRESSORS CONFIGURED
#COND
CONFIGURED
# OF CONDENSERS CONFIGURED
