APPENDIX A: CONDENSER OPTIONS
Single Condenser Per Three Modules
Figure 13: Prism 2 Condenser Conguration: Single Condenser for Three Modules

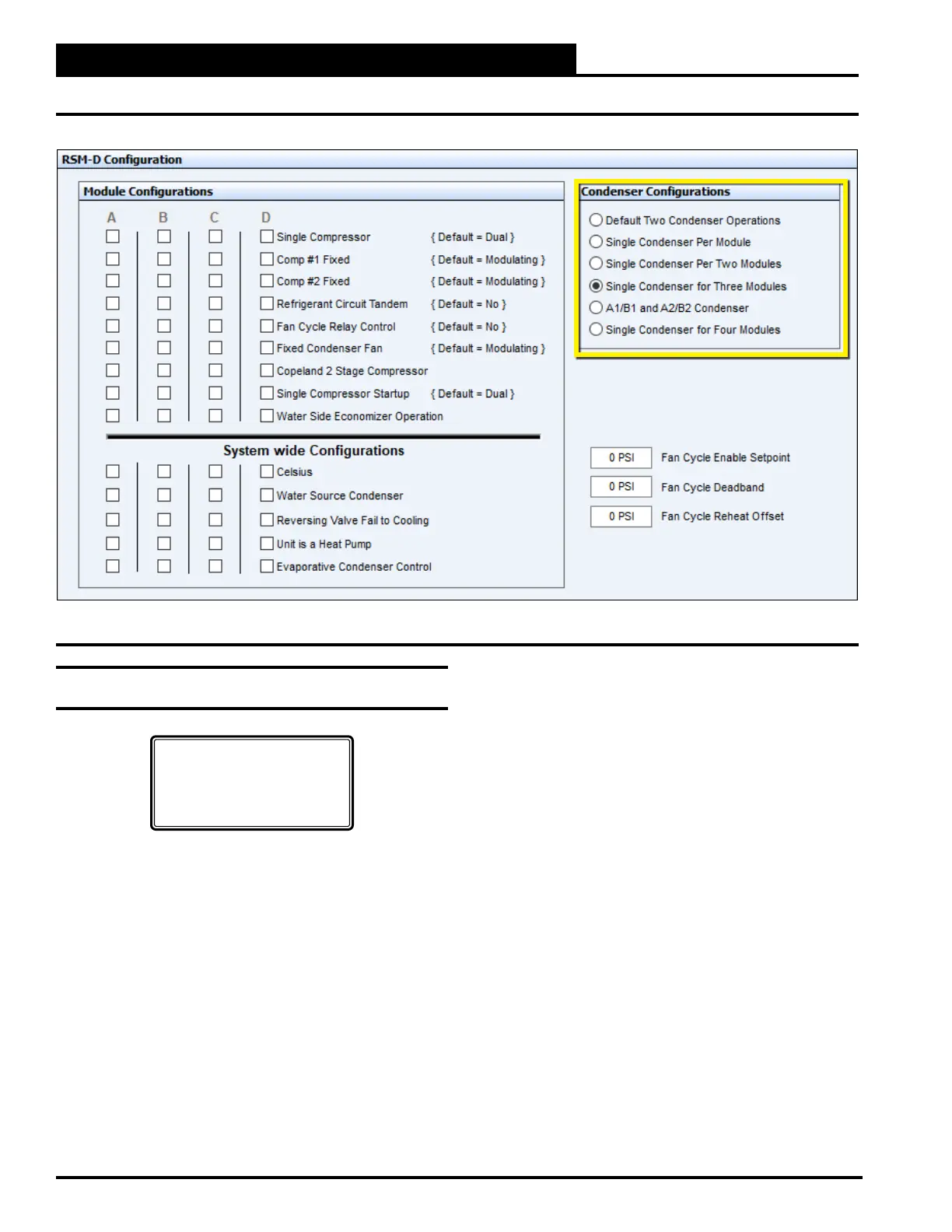

RSMD2R Main Conguration Screen #2 -
Condenser Options
Select the “1 Condenser for 3 RSMD2Rs” option on the above
Hand Held Service Tool Screen.
HVAC Unit Application
The One Condenser for Three RSMD2Rs conguration is used
with the following HVAC units:
• RLC BOX
• RLD BOX
RSMD2R CONFIGURATION
Condenser Options
1 Cond for 3 RSMD2Rs
USE < or > TO CHANGE
