RSMD2R Technical Guide
APPENDIX A: CONDENSER OPTIONS
Single Condenser Per Two Modules

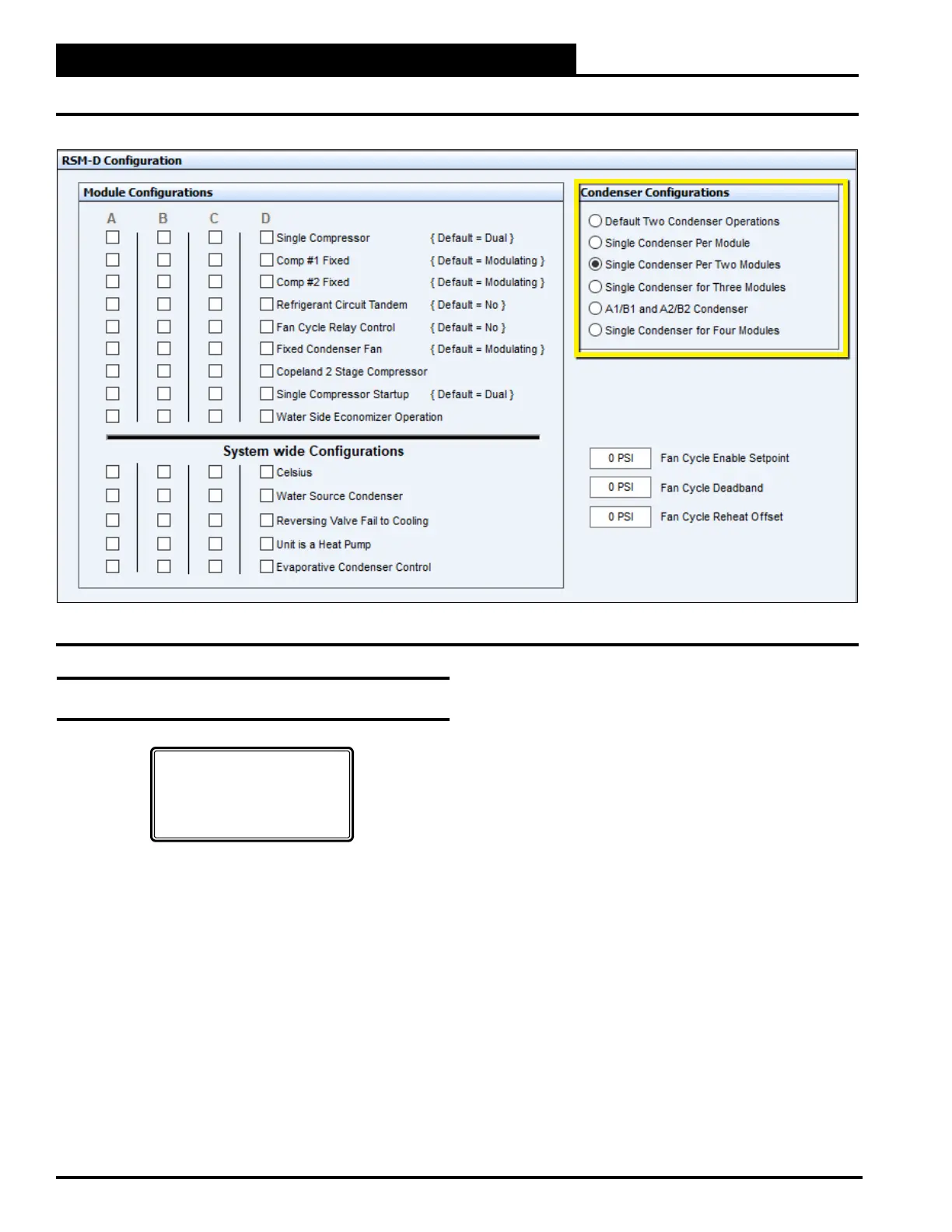

Figure 11: Prism 2 Condenser Conguration: Single Condenser Per Two Modules
RSMD2R Main Conguration Screen #2 -
Condenser Options
Select the “1 Condenser for 2 RSMD2Rs” option on the above
Hand Held Service Tool Screen.
HVAC Unit Application
The Single Condenser for Two RSMD2Rs conguration is used
with the following HVAC units:
• RLA BOX
• RLB BOX
• RLE BOX
RSMD2R CONFIGURATION
Condenser Options
1 Cond for 2 RSMD2Rs
USE < or > TO CHANGE
