RSMD2R Technical Guide
APPENDIX A: CONDENSER OPTIONS
Two Condensers Per Two Modules

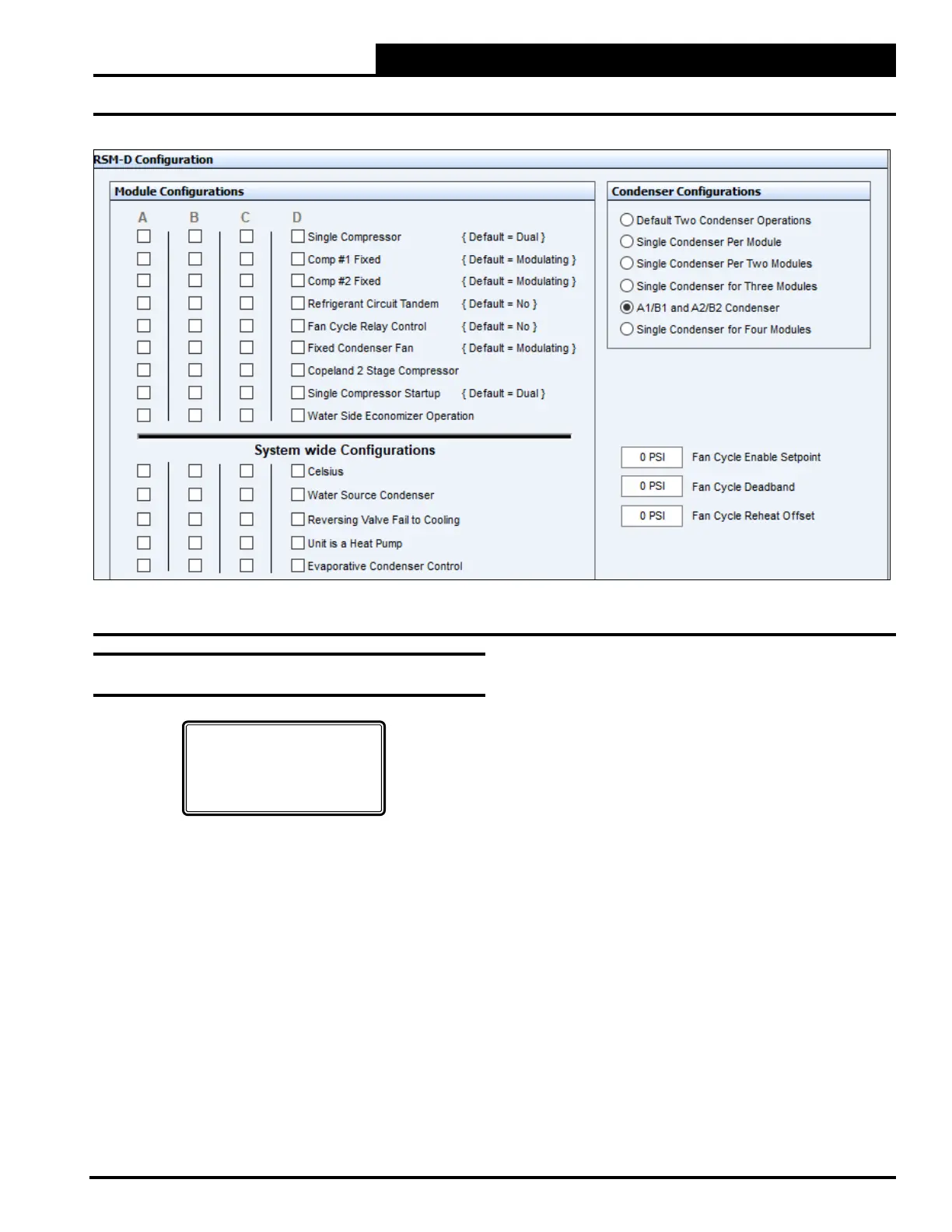

Figure 16: Prism 2 Condenser Conguration: A1/B1 and A2/B2 Condenser Conguration
RSMD2R Main Conguration Screen #2 -
Condenser Options
Select the “2 Condensers for 2 RSMD2Rs” option on the above
Hand Held Service Tool Screen.
HVAC Unit Application
The Two Condensers per Two RSMD2Rs conguration is used
with the following HVAC units:
• D-BOX 50-70 Ton
• D-BOX Air to Air Heat Pump
• D-BOX WSHP
RSMD2R CONFIGURATION
Condenser Options
2 Cond for 2 RSMD2Rs
USE < or > TO CHANGE
