APPENDIX A: CONDENSER OPTIONS
Default: Two Condenser Operation

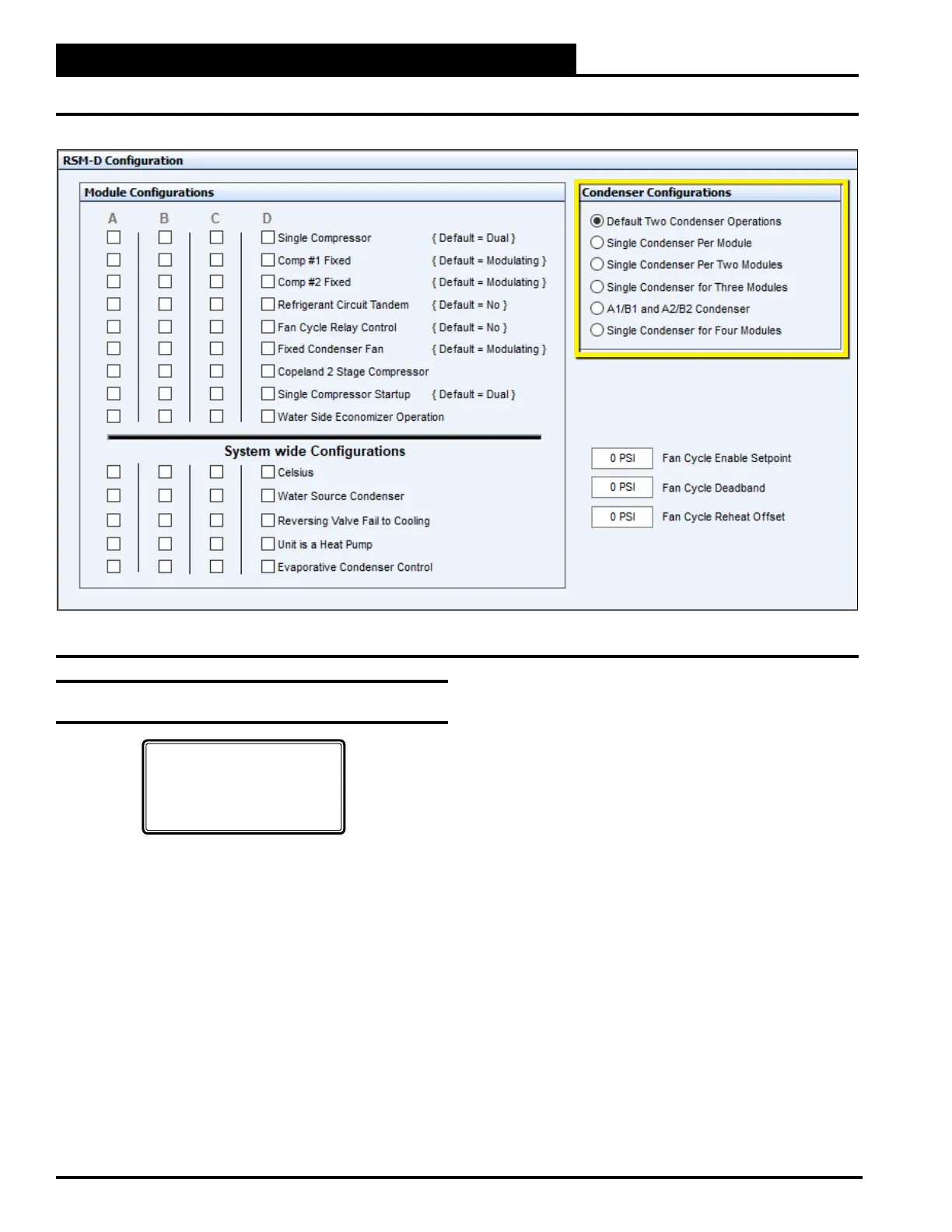

Figure 7: Prism 2 Condenser Conguration: Default Two Condenser Operations
RSMD2R Main Conguration Screen #2 -
Condenser Options
Select the “2 Condensers per RSMD2R” option on the above
Hand Held Service Tool Screen.
HVAC Unit Application
The Two Condenser per RSMD2R conguration is used with
the following HVAC units:
• D-BOX 26-40 Ton
• C-BOX 16-20 Ton
• B-BOX
RSMD2R CONFIGURATION
Condenser Options
2 Cond per RSMD2R
USE < or > TO CHANGE
