8.3 Removing air inlets
NOTICE
Marking casing position for assembly
ABB Turbo Systems recommends marking the casing positions prior to
disassembly.

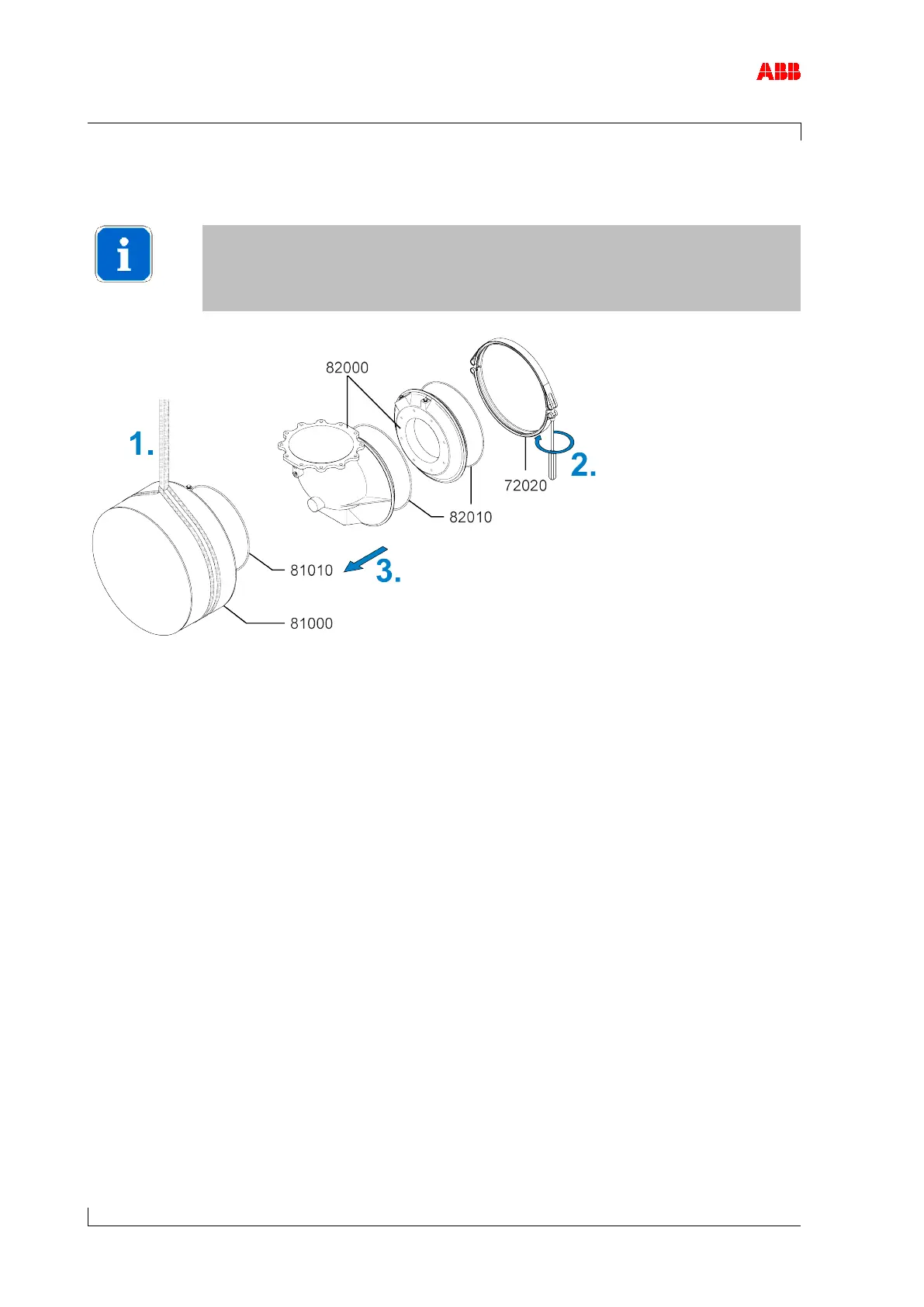

Figure 29: Removing the air inlets
1. Loop around the filter silencer (81000) with lifting gear.
2. Loosen the V-clamp (72020).
3. Remove the filter silencer (81000) with the O-ring (81010) or the air suction
branch (82000) with the O-ring (82010).
