8.17 Installing air inlets

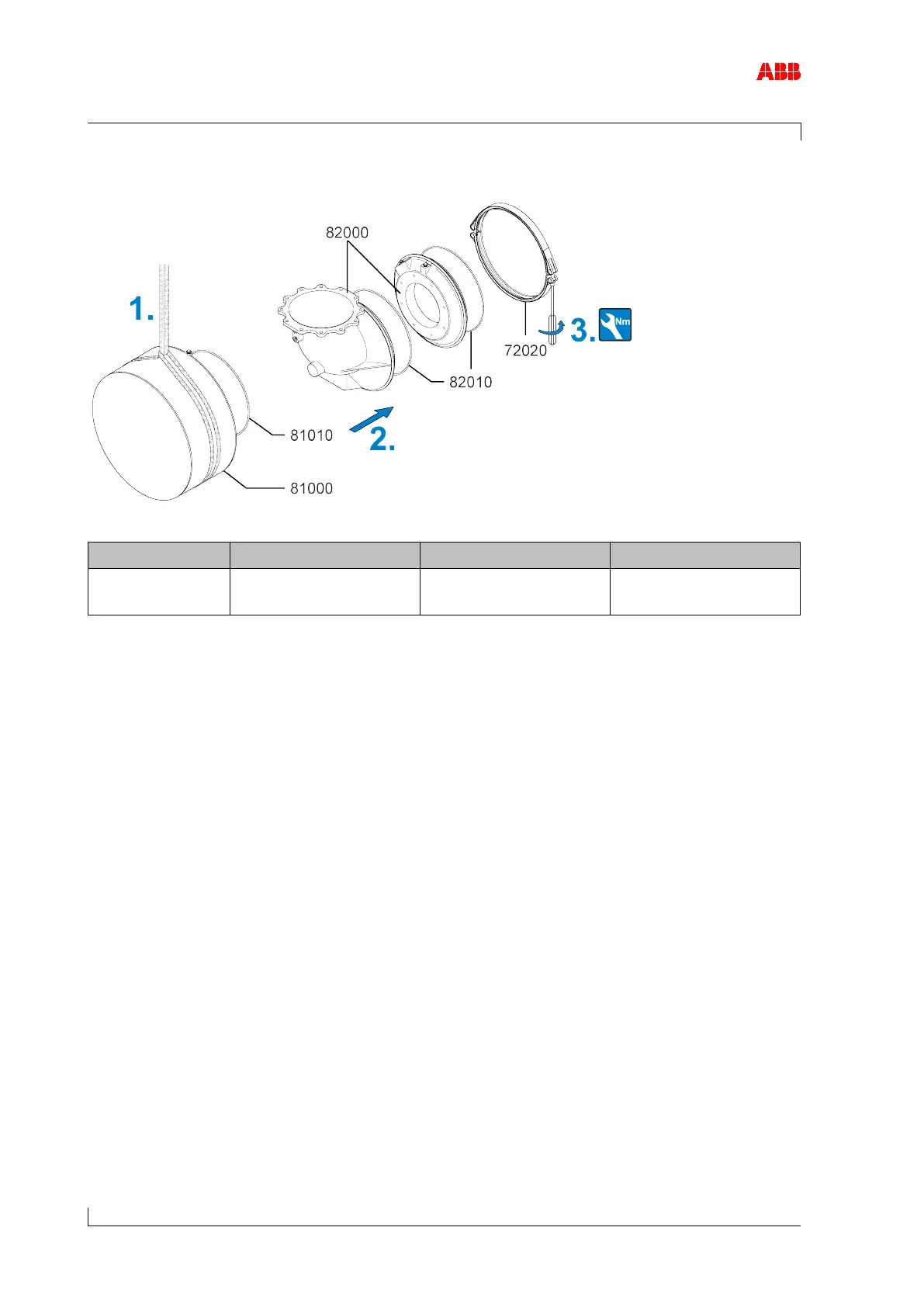

Figure 50: Installing the air inlets
Part number
A130
A135
A140
72020 M12
60 Nm
M12
60 Nm
M12
60 Nm
Table 43: Tightening torque (72020)
1. Loop around the filter silencer (81000) with lifting gear.
2. Fit the filter silencer (81000) with the O-ring (81010) or the air suction branch (82000) with
the O-ring (82010) and V-clamp (72020).
3. Tighten the V-clamp (72020).
