8.5 Removing the gas outlet flange
NOTICE
Marking casing position for assembly
ABB Turbo Systems recommends marking the casing positions prior to
disassembly.

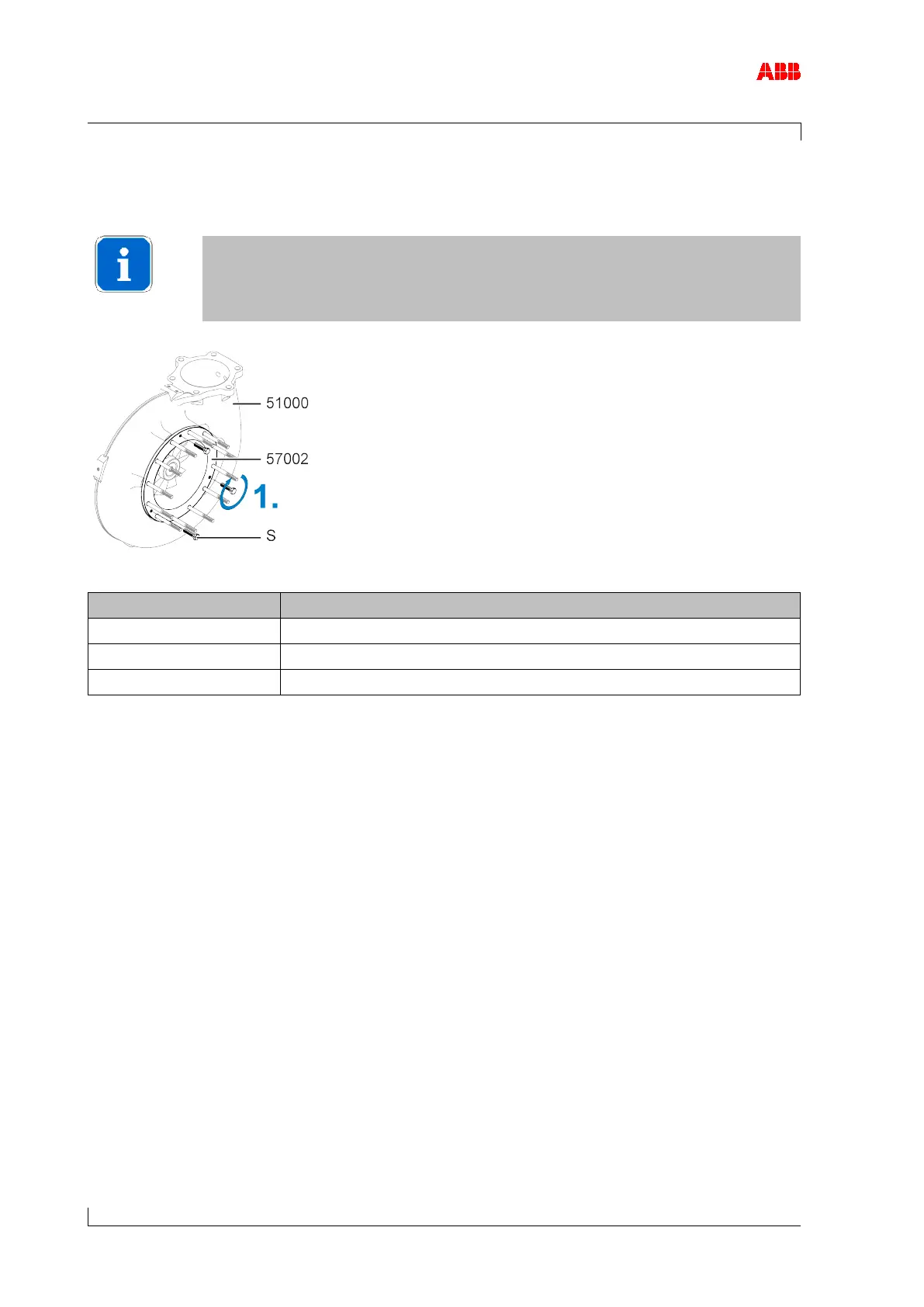

Figure 31: Removing the gas outlet flange
Product
Press-off screws to be used (strength 8.8)*
A130 6x M6
A135
6x M8
A140 6x M10
Table 36: Gas outlet flange press-off screws
*Not included in the ABB Turbo Systems scope of delivery.
1. Press off and remove the gas outlet flange (57002) with screws (S) according to the table.
