3.1.5 Oil orifice in the bearing casing

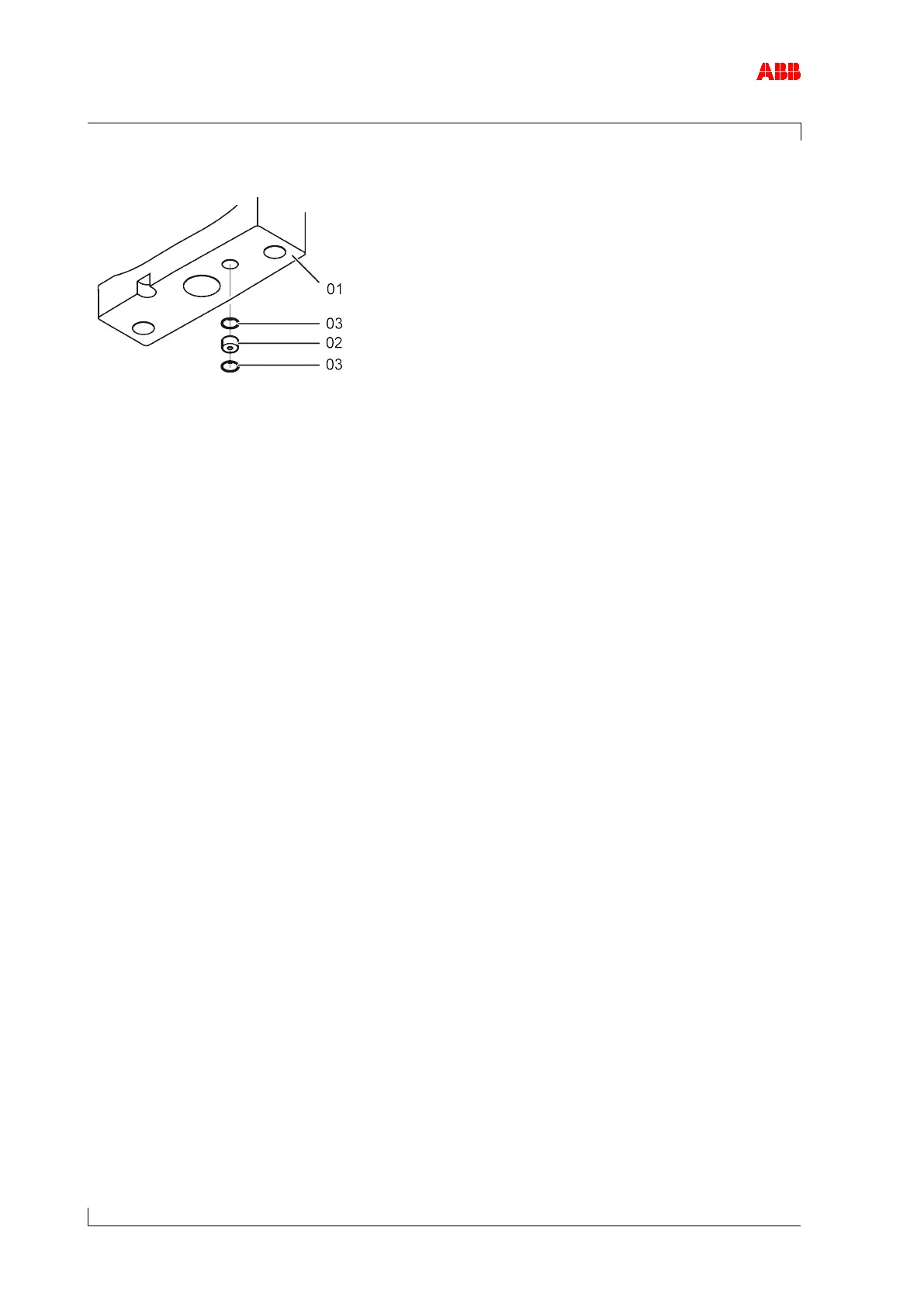

Figure 17: Oil orifice
01 Bearing casing
02 Oil orifice
03 Circlip
With an oil inlet pressure of more than 3 bar (when engine under load) before the
turbocharger, the bearing casings are equipped as standard with an orifice at the oil inlet.
