ABB A170-M Series User Manual

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.11 Installing the compressor casing
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022
9.11 Installing the compressor casing
Installing the compressor casing

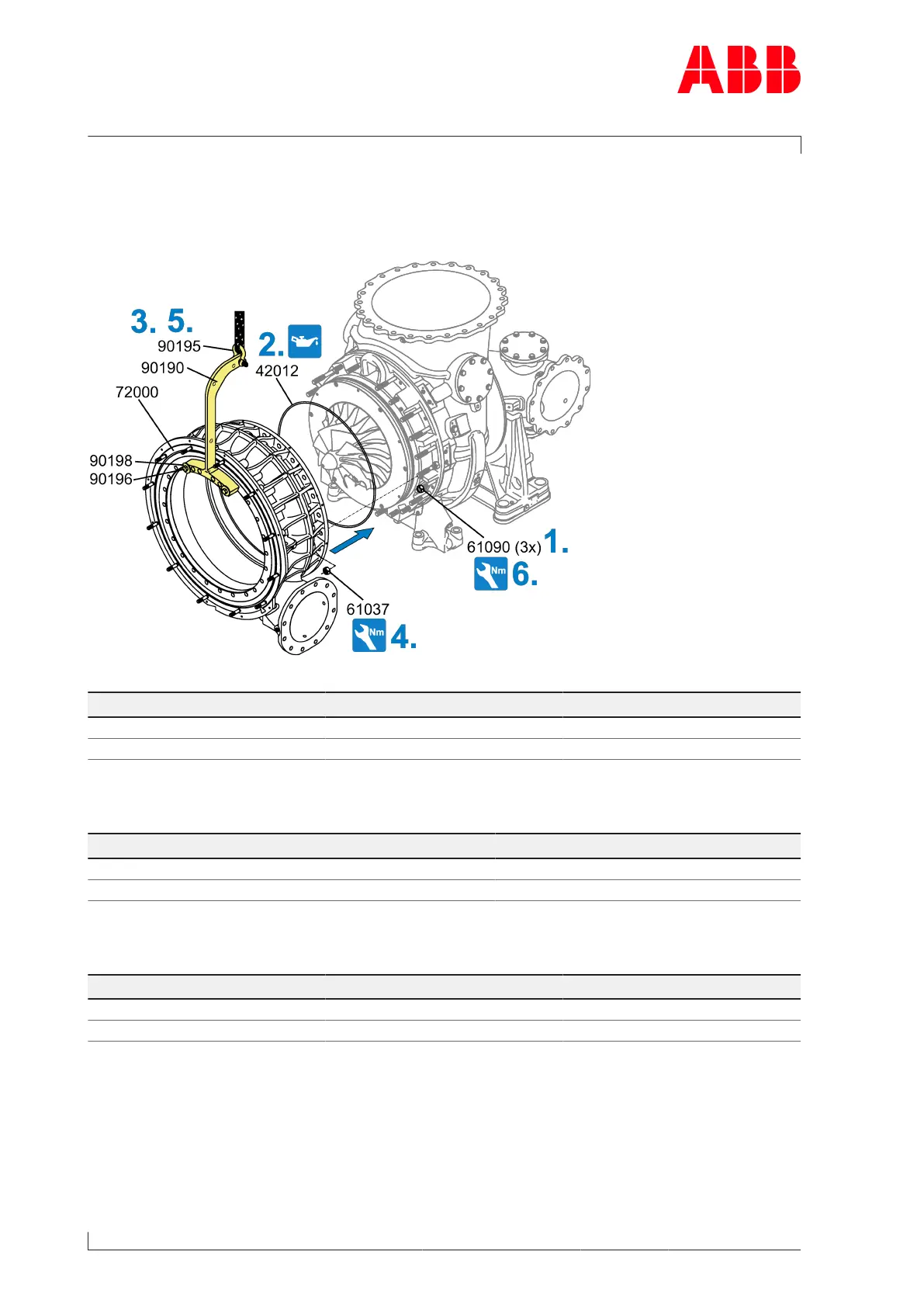

Fig.60: Installing the compressor casing
Product Size Tightening torque [Nm]
A170-M M22 400
A175-M M24 490
Table44: Tightening torque (61037)
Product Pre-tightening torque [Nm] Tightening angle [°]
A170-M 30 45° ±5°
A175-M 40 45° ±5°
Table45: Tightening torque, nuts that are difficult to access (61037)
Product Size Tightening torque [Nm]
A170-M M22 50
A175-M M24 50
Table46: Tightening torque (61090)
1. Distributed evenly around the circumference, screw the press-off nuts (61090) onto the
studs of the bearing casing and turn them by hand until they are at the end of the thread.
2. Grease the new O-ring (42012) and fit it.
3. Using screws (90196) and washers (90198), fasten lifting device (90190 / 90195) to com-
pressor casing (72000) and secure to crane.
Page 104 / 146
