9.7 Removing the nozzle ring
Removing the turbine diffuser
CAUTION
Risk of mixing up the press-off screws
In size A170-M, the press-off screw(90915) for pressing off the turbine dif-
fuser with thread size M18x1.0 can easily be mixed up with the press-off
screw(90901) with thread size M18x1.5. If the press-off screws are mixed up,
the thread of the turbine diffuser can be damaged.
u Always use the appropriate press-off screws.

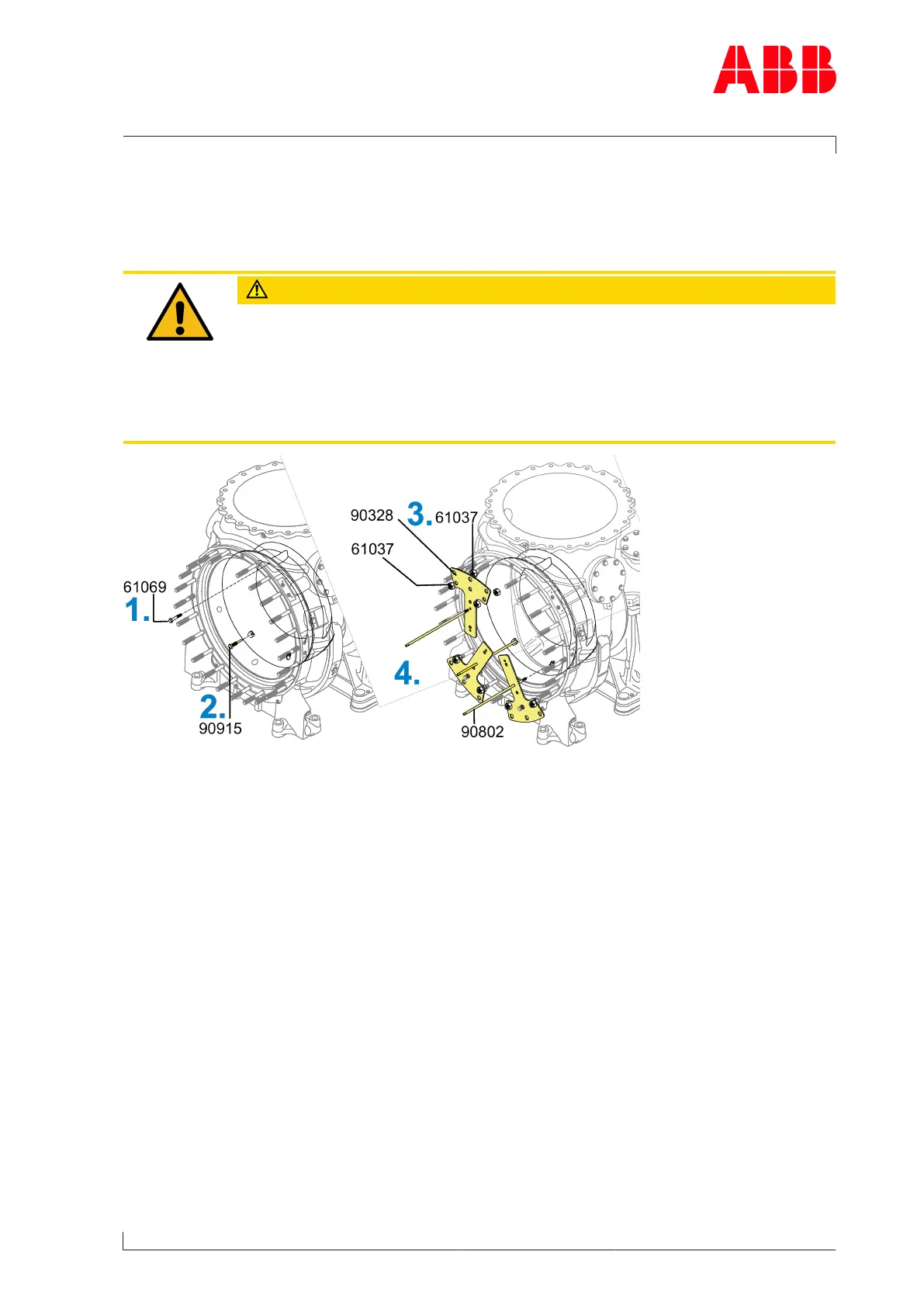

Fig.44: Removing turbine diffuser 1
1. Remove screws(61069).
2. Using press-off screws (90915), press off turbine diffuser.
3. Fit guide plates (90328) with nuts (61037).
4. Screw in guide stud (90802).
