Operation Manual / A170-M.. - A175-M..
1 Introduction / 1.5 Layout and function of the turbocharger
© Copyright 2022 ABB. All rights reserved. HZTL4033_EN Rev.K January 2022
1.5 Layout and function of the turbocharger

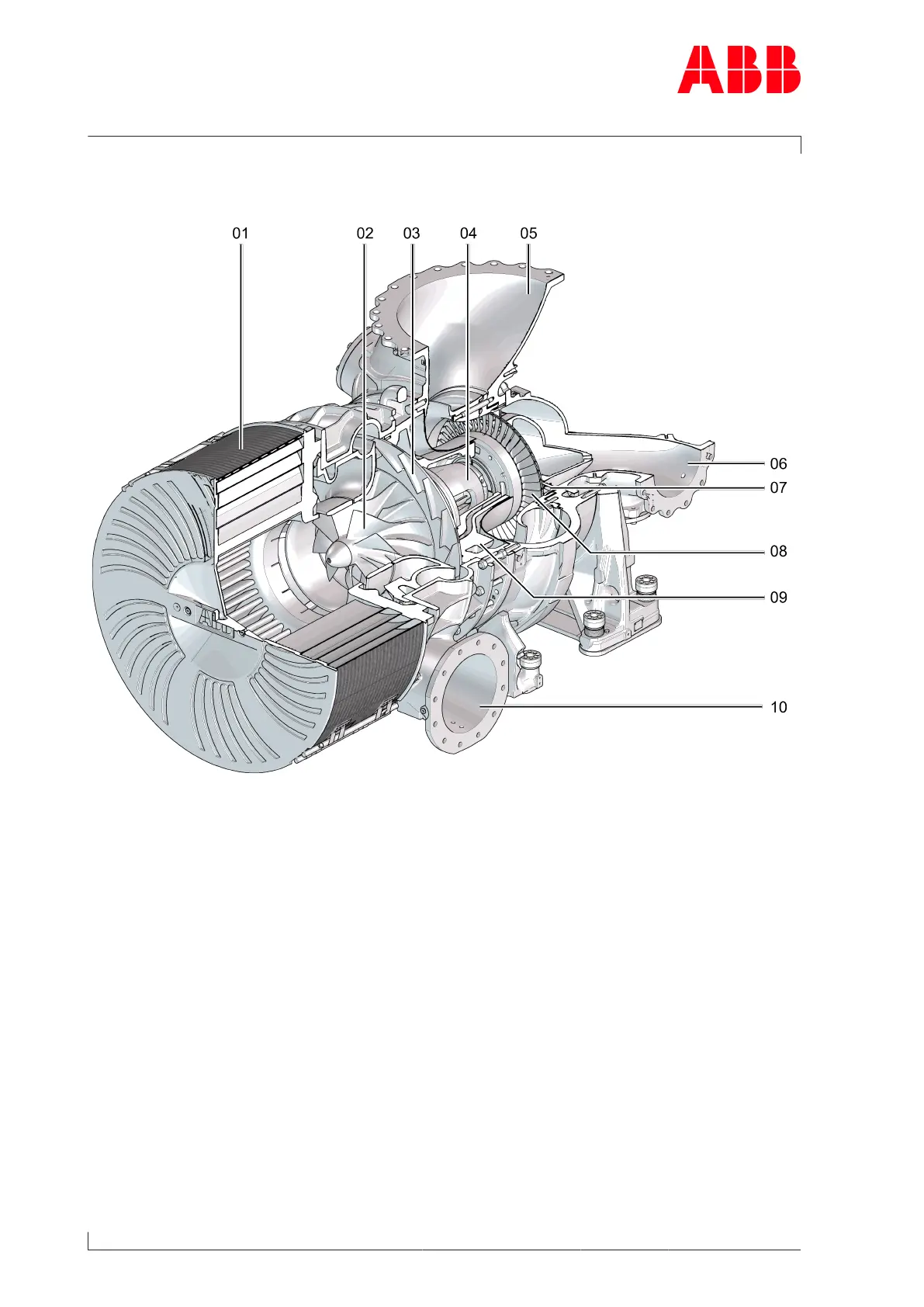

Fig.2: Layout and function
01 Filter silencer / air suction branch 06 Gas inlet casing
02 Compressor wheel 07 Nozzle ring
03 Diffuser 08 Turbine
04 Bearing bush 09 Bearing casing
05 Gas outlet casing 10 Compressor casing
