Maintenance
100

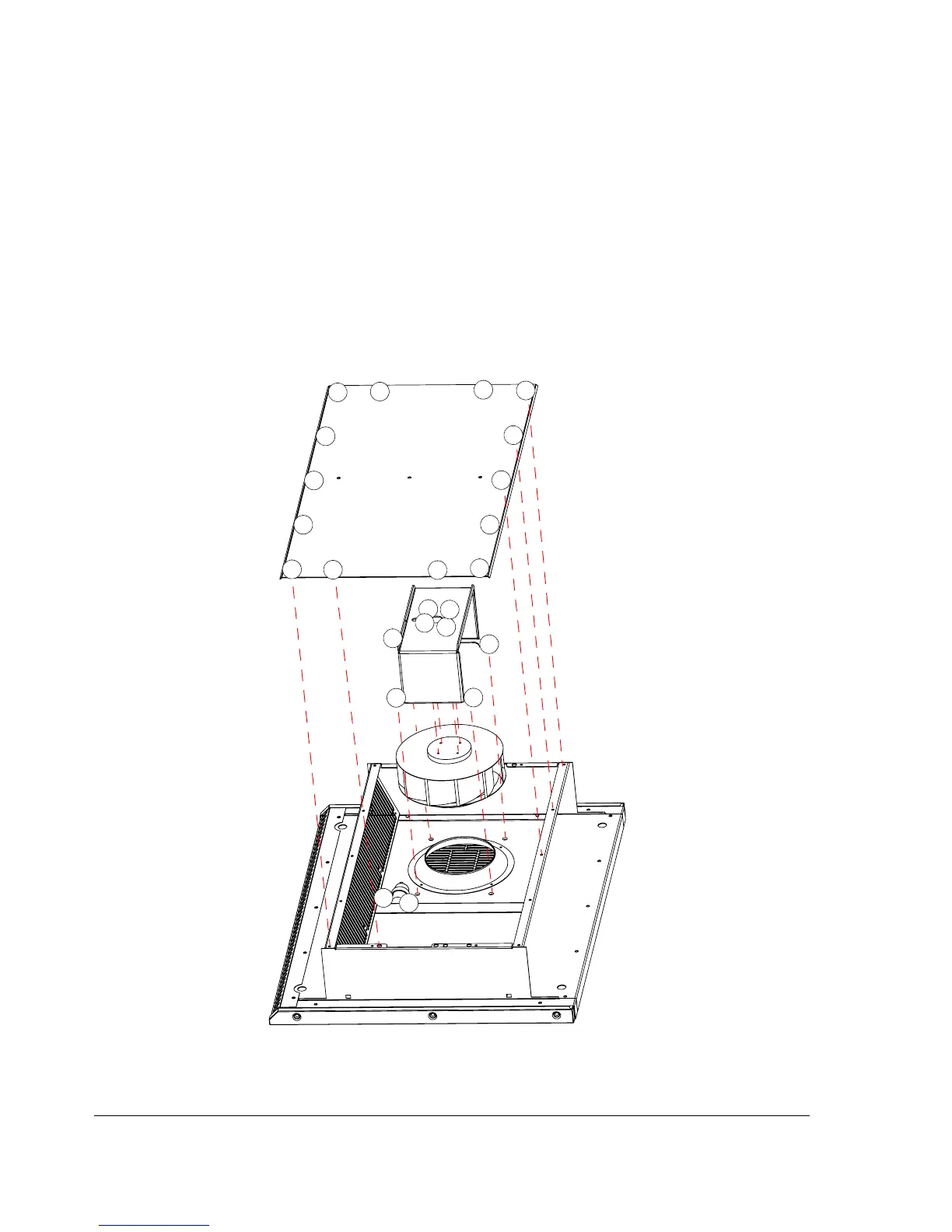

Replacing the additional cabinet fan (frame sizes R7 and R8 only with IP22 and
IP42 when cabling: bottom entry/exit)
1. Remove the top plate of the cabinet roof by undoing the fastening screws.
2. Remove the fan cover by undoing the fastening screws.
3. Disconnect the fan supply wires (detachable connector) and undo the cable ties
on the fan cover.
4. Remove the fan capacitor by undoing the fastening screw of the clamp.
5. Pull the fan out.
6. Install the new fan and fan capacitor in reverse order to the above.
3
4
Pro/E: 6469 4952 (cab-r7-8_roof_fan_bot-ee.asm), 6471 7154
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
Cabinet front
