ABB ACS800-U7 - Free Space Around the Unit

Technical data
128

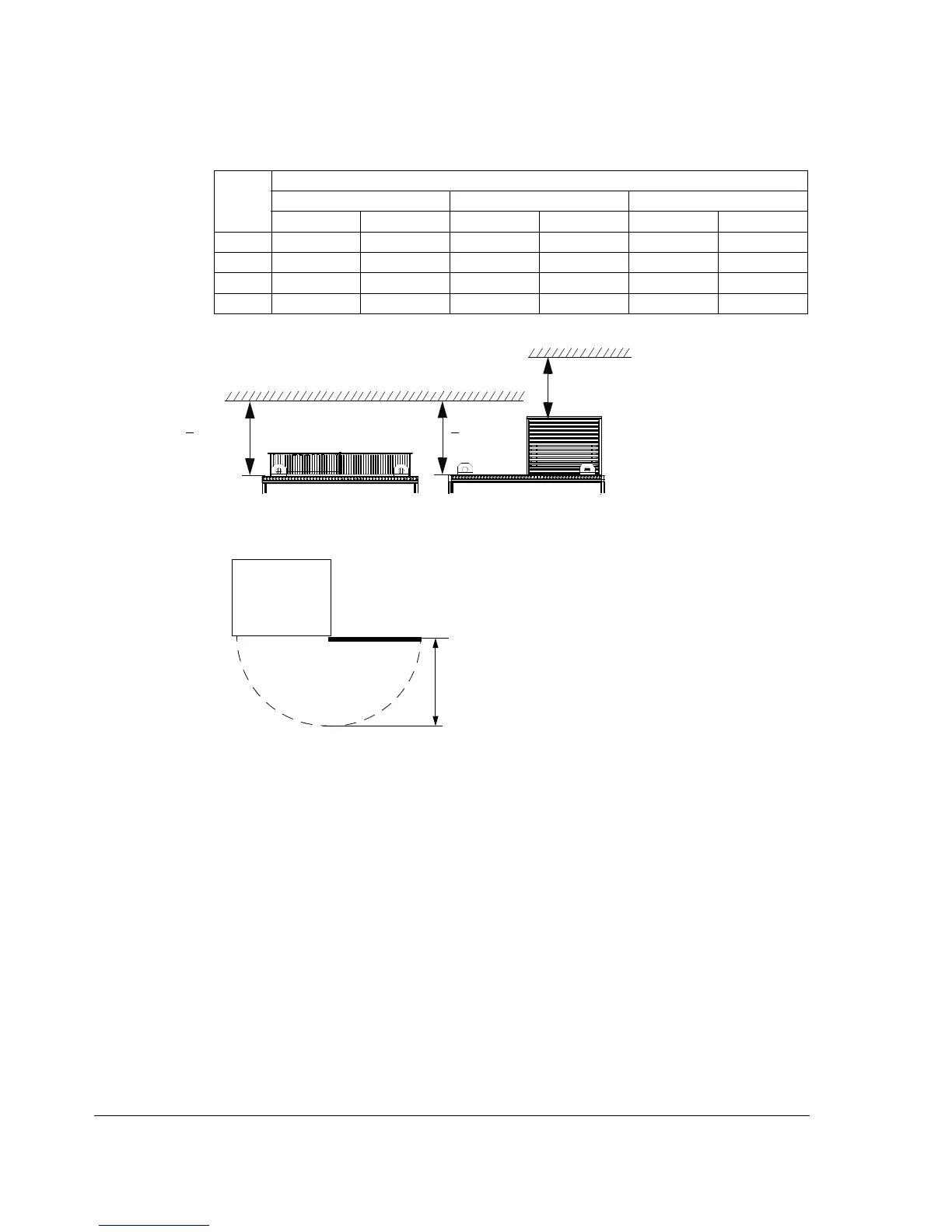

Free space around the unit
* measured from the base plate of the cabinet top
Space requirement for the door opening:
Frame
size
Required free space around the unit for cooling
Front Side Above*
mm in. mm in. mm in.
R5 150 5.91 - - 400 15.75
R6 150 5.91 - - 400 15.75
R7 150 5.91 - - 400 15.75
R8 150 5.91 - - 400 15.75
IP54
IP21/22/42
> 400 mm
(15.75 in.)
> 400 mm
(15.75 in.)
320 mm (12.28 in.) for fan replacement
in frame sizes R7 and R8
Frame sizes R5 and R6: 400 mm (15.75 in.)
Frame sizes R7 and R8: 800 mm (31.5 in.)
