Electrical installation
66

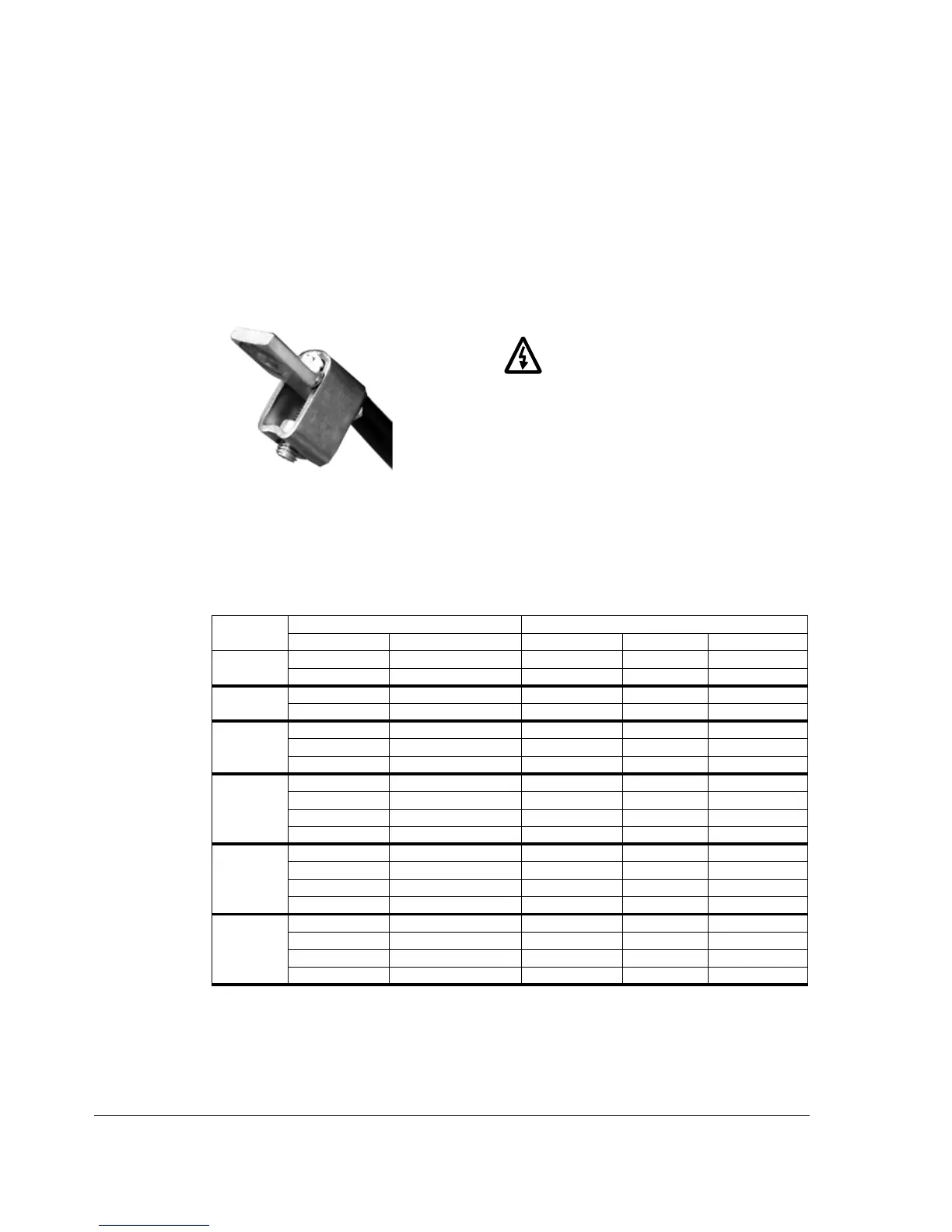

Additional instructions for frame size R6
Cable terminals R+ and R-
Power cable conductors of sizes 95 to 185 mm
2
(3/0 to 350 AWG) are connected to
the cable terminals as follows:
• Undo the fastening screw of the terminal.
• Connect the conductor to the terminal.
• Screw the terminal to the original location.
Cable lug installations to R+ and R- screws
Cables of sizes 16 to 70 mm
2
(6 to 2/0 AWG) can be connected to the screws with
cable lugs. Isolate the ends of the cable lugs with insulating tape or shrink tubing. To
meet UL requirements, use UL listed cable lugs and tools given below or
corresponding.
Wire size Compression lug Crimping tool
kcmil/AWG Manufacturer Type Manufacturer Type No. of crimps
6 Burndy YAV6C-L2 Burndy MY29-3 1
Ilsco CCL-6-38 Ilsco ILC-10 2
4 Burndy YA4C-L4BOX Burndy MY29-3 1
Ilsco CCL-4-38 Ilsco MT-25 1
2 Burndy YA2C-L4BOX Burndy MY29-3 2
Ilsco CRC-2 Ilsco IDT-12 1
Ilsco CCL-2-38 Ilsco MT-25 1
1 Burndy YA1C-L4BOX Burndy MY29-3 2
Ilsco CRA-1-38 Ilsco IDT-12 1
Ilsco CCL-1-38 Ilsco MT-25 1
Thomas & Betts 54148 Thomas & Betts TBM-8 3
1/0 Burndy YA25-L4BOX Burndy MY29-3 2
Ilsco CRB-0 Ilsco IDT-12 1
Ilsco CCL-1/0-38 Ilsco MT-25 1
Thomas & Betts 54109 Thomas & Betts TBM-8 3
2/0 Burndy YAL26T38 Burndy MY29-3 2
Ilsco CRA-2/0 Ilsco IDT-12 1
Ilsco CCL-2/0-38 Ilsco MT-25 1
Thomas & Betts 54110 Thomas & Betts TBM-8 3
Cable terminal
WARNING! If the wire size is less than
95 mm
2
(3/0 AWG), a cable lug must
be used. A cable of wire size less than
95 mm
2
(3/0 AWG) connected to this
terminal will loosen and may damage
the drive.
