ABB ACS800-U7 - Layout Drawing of Factory Installed Optional Equipment; Frame Sizes R5 and R6; Additional Terminal Blocks

Electrical installation
74

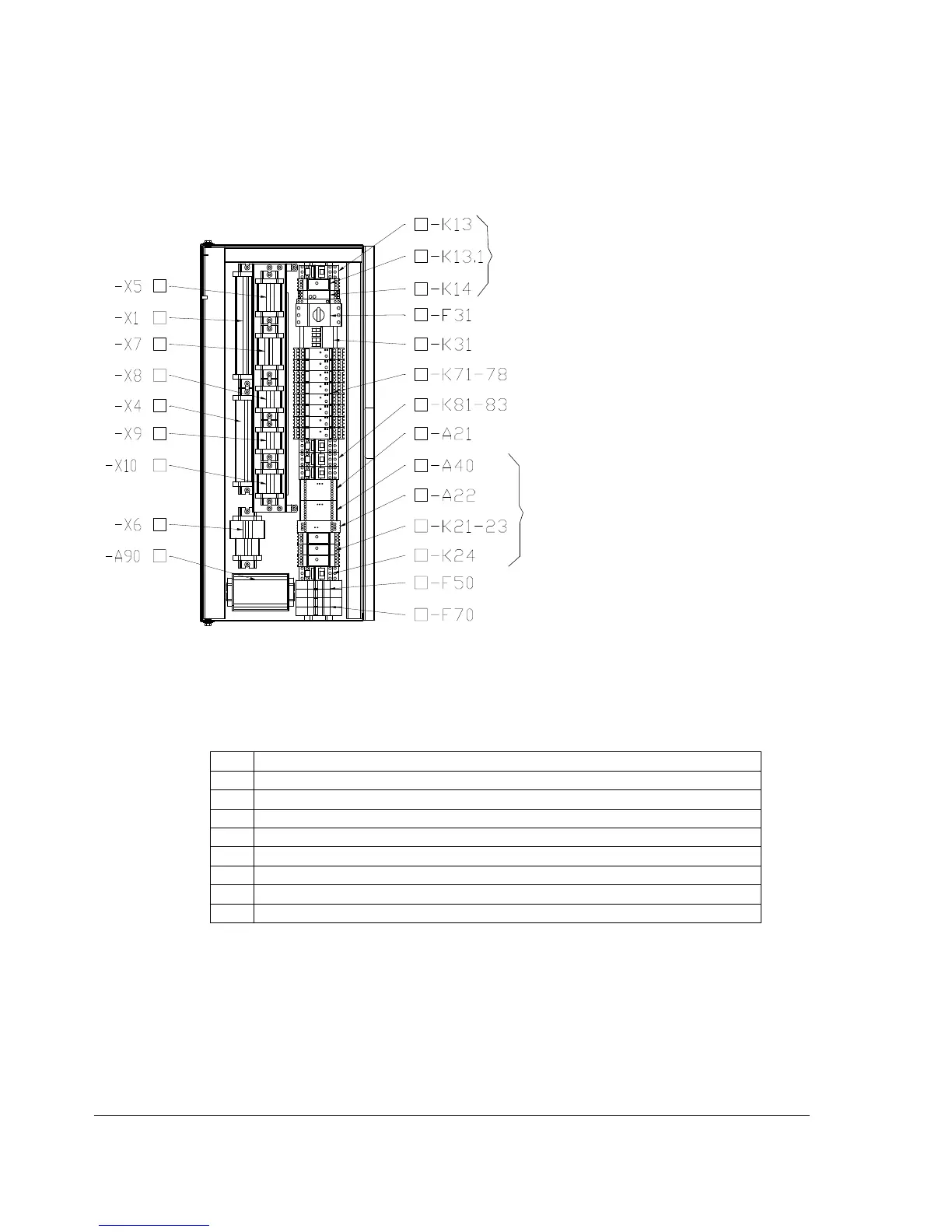

Layout drawing of factory installed optional equipment
Frame sizes R5 and R6
Additional terminal blocks
*X1 line contactor control and auxiliary voltage supply
*X2 RMIO/RDCU
*X4 temperature supervision
*X5 cabinet heaters
*X6 motor auxiliary fan supply
*X7 motor heater
*X8 emergency stop of Category 1
*X9 Prevention of unexpected start-up (option +Q950) or Safe torque off (option +Q968)
*X10 earth fault protection
68328861 B
*Thermistor/Pt100 relays
* Motor auxiliary fan circuit breaker
* Main contactor control relays
*Relay for Prevention of unexpected start-up
(option +Q950) or Safe torque off (option +Q968)
*Emergency stop of Category 1
*Circuit breakers for cabinet heaters
*Earth fault
protection
device
* Denotes optional equipment not present on all units.
*
*
*
*
*
*
*
*
* Motor auxiliary fan contactor
*Thermistor/Pt100 control relays
*Circuit breakers for motor heaters
Swing-out frame (front view)
