ABB ACS800-U7 - Replacing the cabinet fans (frame size R8 only)

Maintenance
99

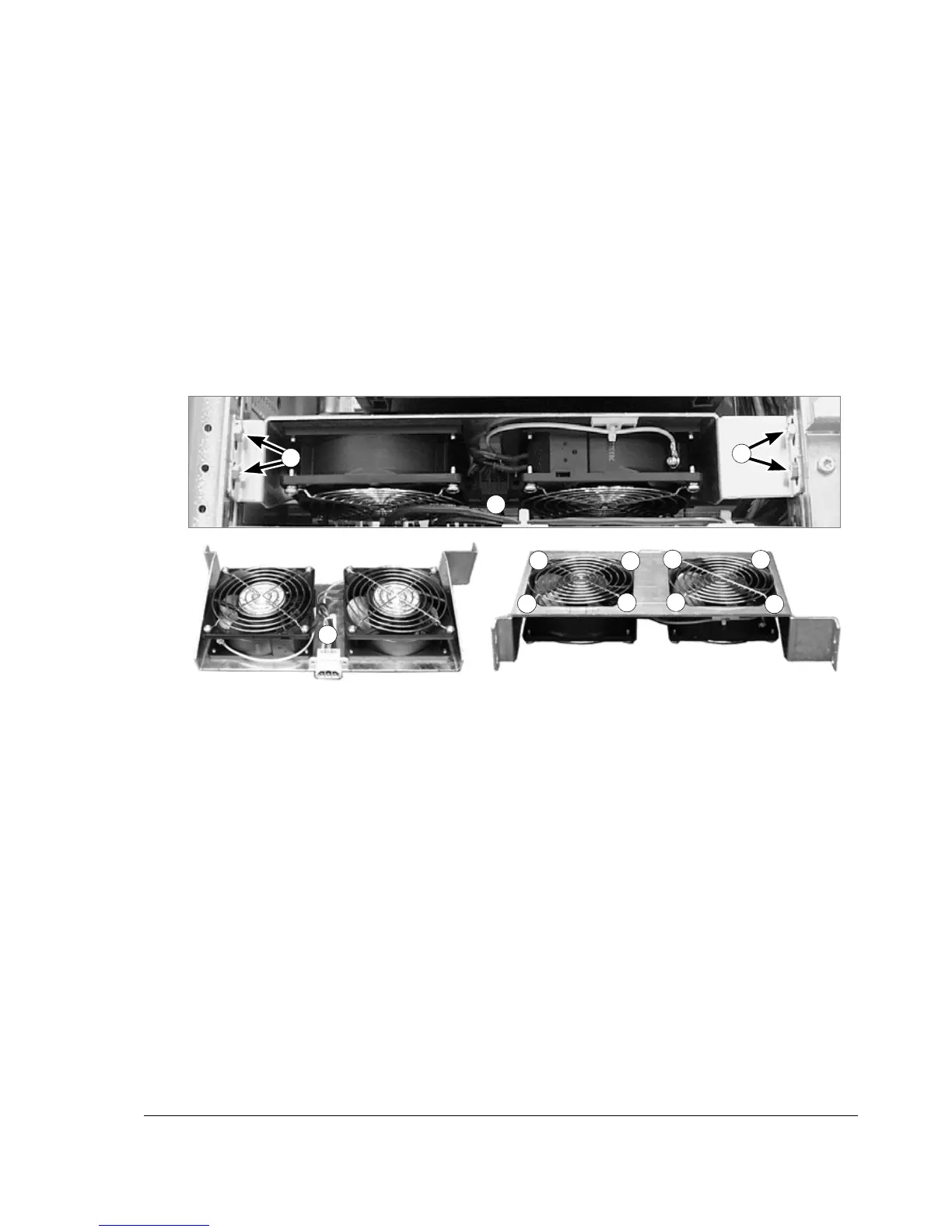

Replacing the cabinet fans (frame size R8 only)
For location of the cabinet fans, see section Cabinet layout on page 89.
1. Undo the fastening screws.
2. Disconnect the fan supply wires (detachable connector at the back edge of the
fan cassette).
3. Pull the fan cassette out.
4. Disconnect the fan wires from the terminal.
5. Undo the fastening screws of the fans.
6. Install the new fans in reverse order to the above.
1
1
2
4
5
5
5
5
5
5
5
5
