Maintenance
109

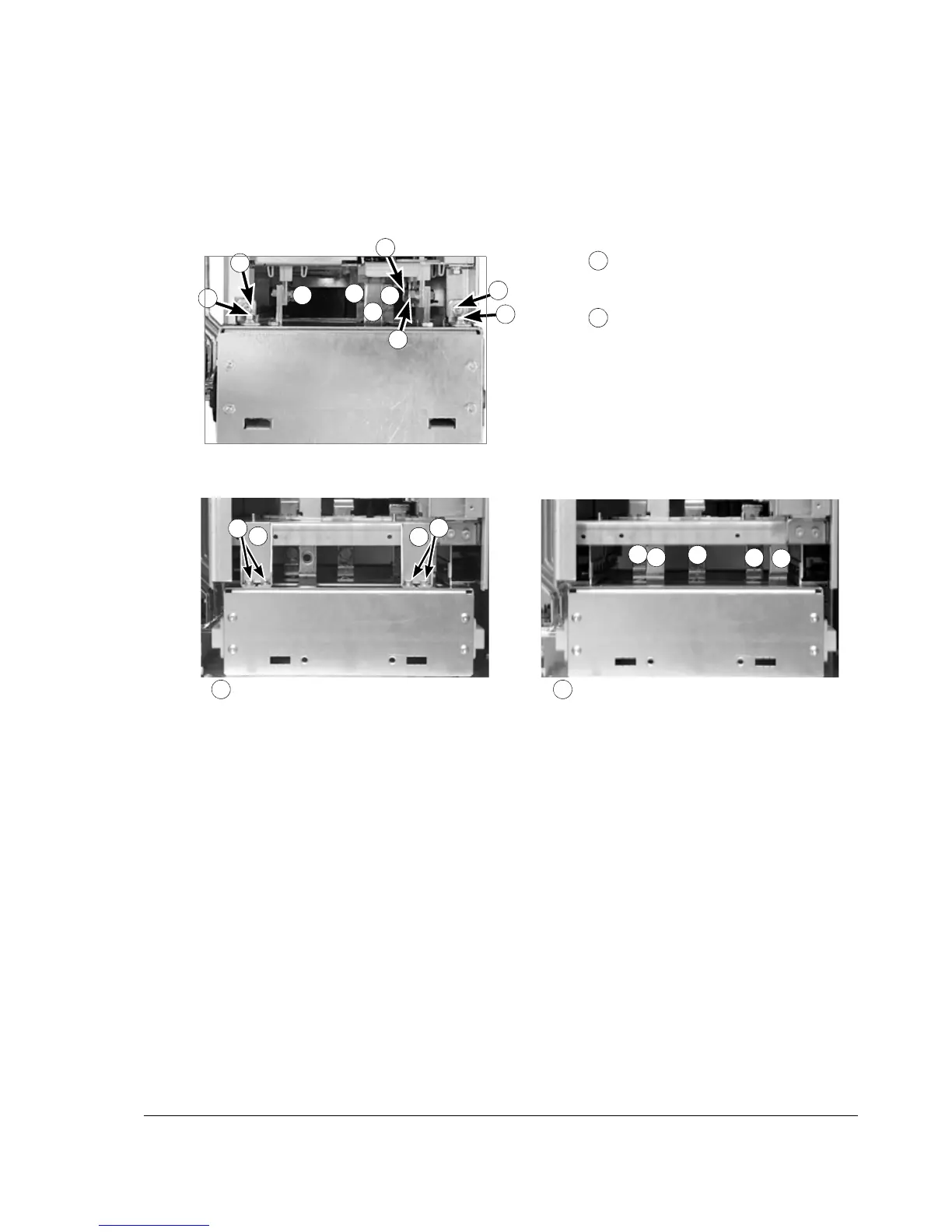

10.Disconnect the pedestal from the module by undoing the fastening (a) and
busbar connecting (b) screws.
b
b
b
Frame size R8
M10x25 combi screws
Tightening torque: 30...44 Nm (22...32 lbf ft)
b
b
b
b
b
b
a
a
M6x16 combi screws
Tightening torque: 5 Nm (3.7 lbf ft)
a
M6 combi screw
Tightening torque: 5 Nm (3.7 lbf ft)
M8x25 combi screw
Tightening torque: 15...22 Nm
(11...16 lbf ft)
a
b
Frame size R7
b
b
a
a
a
a
a
a
b
