Parameters 111
SpRef ramped 03.05 SpeedRef ramped (see page 71). 1073742597
SpRef used 03.06 SpeedRef used (see page 71). 1073742598
TorqRef used 03.14 Torq ref used (see page 71). 1073742606
Process act 04.03 Process act (see page 72). 1073742851
Proc PID out 04.05 Process PID out (see page 72). 1073742853
Pointer Value pointer setting (see Terms and abbreviations on page
63).
-
15.08 AO2 filt time Defines the filtering time constant for analogue output AO2.
See parameter 15.02 AO1 filt time.
0.000 … 30.000 s Filter time constant. 1000 = 1 s
15.09 AO2 out max Defines the maximum output value for analogue output AO2.
-10.000 … 10.000 V Maximum AO2 output value. 1000 = 1 V
15.10 AO2 out min Defines the minimum output value for analogue output AO2.
-10.000 … 10.000 V Minimum AO2 output value. 1000 = 1 mA

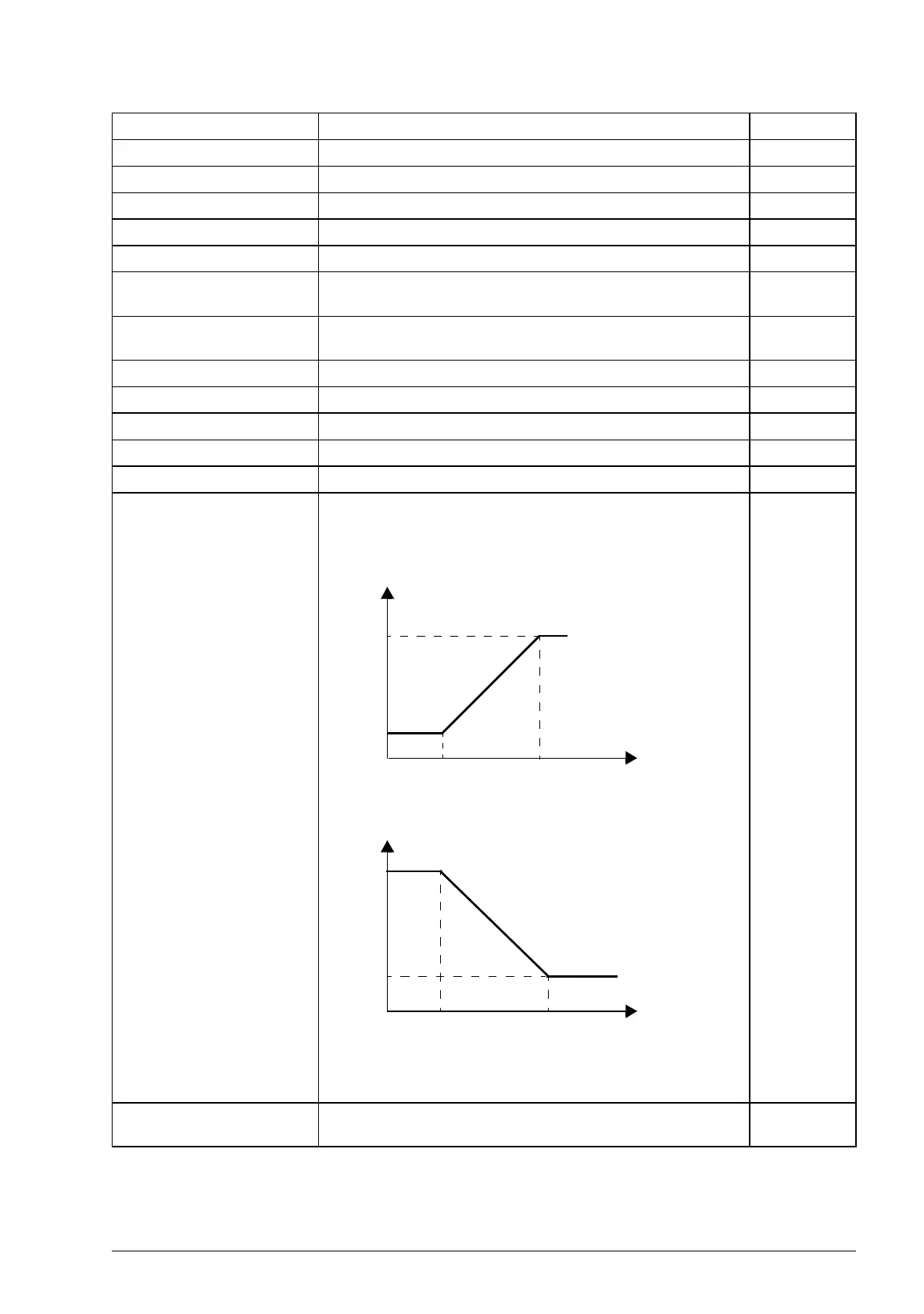

15.11 AO2 src max Defines the real value of the signal (selected by parameter
15.07 AO2 src) that corresponds to the maximum AO2 output
value (defined by parameter 15.09 AO2 out max).
-32768.000 …
32768.000
Real signal value corresponding to maximum AO2 output
value.
1000 = 1
No. Name/Value Description FbEq
I
AO2
(V)
15.09
15.10
15.11 15.12
15.1115.12
15.09
15.10
Signal (real)
selected by par.
15.07
I
AO2
(V)
Signal (real)
selected by par.
15.07
