ABB ACSM1 Series - Page 113

113
4. Select the ABB drive (FENA) and click Device view to configure PROFNET IP address and
device name.
 In the General tab, click General to add the device name.

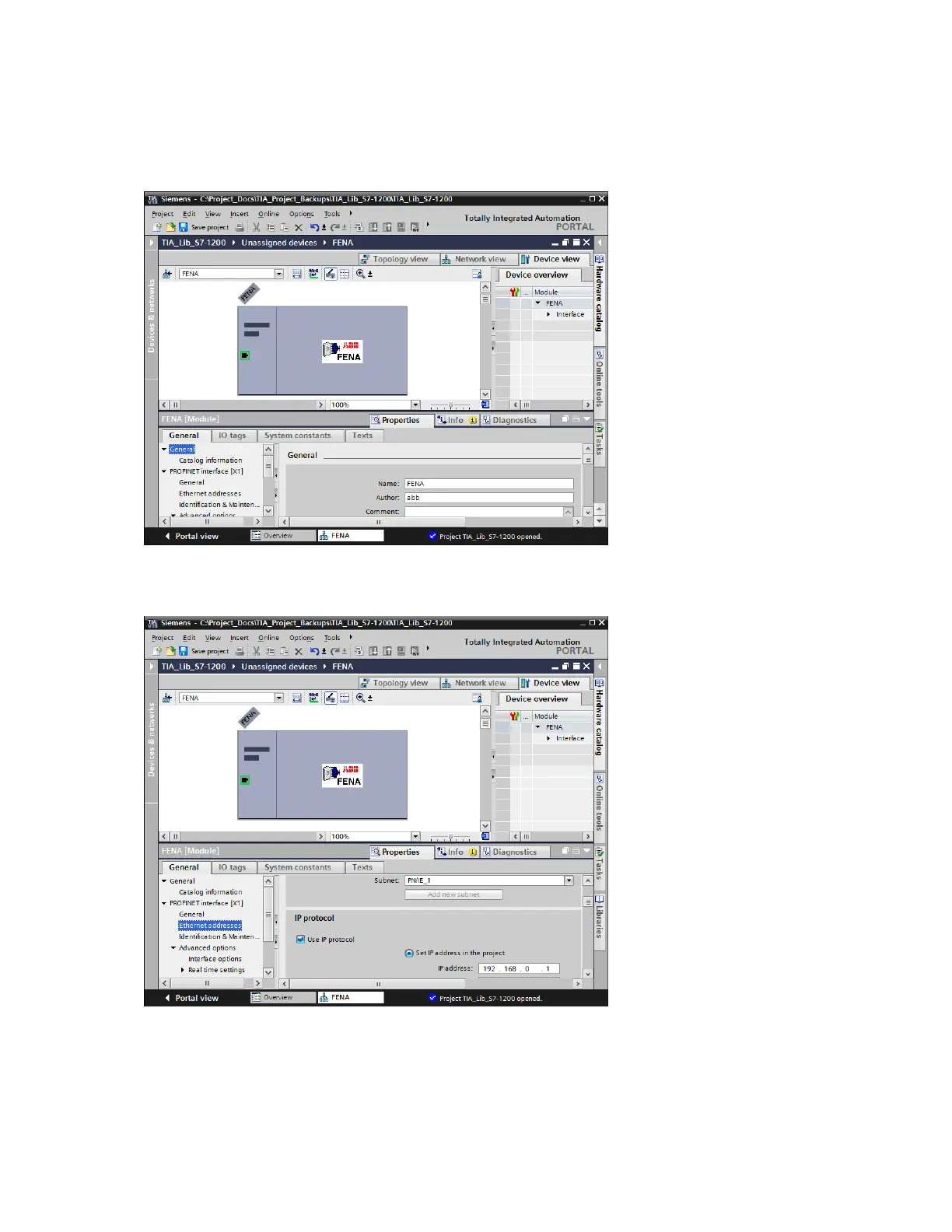

Figure 127 Device name
 In the PROFINET interface [X1], click Ethernet address to add Subnet and IP address.
Figure 128 Ethernet address
