Scalable variables and data types
Scalable
variable
Data type
Variable to which the scaling value is entered
PZD2
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD2_SCALE
PZD3
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD3_SCALE
PZD4
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD4_SCALE
PZD5
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD5_SCALE
PZD6
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD6_SCALE
PZD7
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD7_SCALE
PZD8
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD8_SCALE
PZD9
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD9_SCALE
PZD10
REAL
“DRIVE1”.INTERNAL_PZD.SCALE.PZD10_SCALE
Map the fieldbus process data parameters of the drive according to the application. See chapter Drive
configuration.
See example below from an ACS355 where Current (1.04), Torque (1.05), Power (1.06), DC bus voltage
(1.07) are read from drive to PLC through PZD3 to PZD6, and Constant speed 1 to 4 (12.02 to 12.05) are
written from PLC to drive through PZD3 to PZD6.

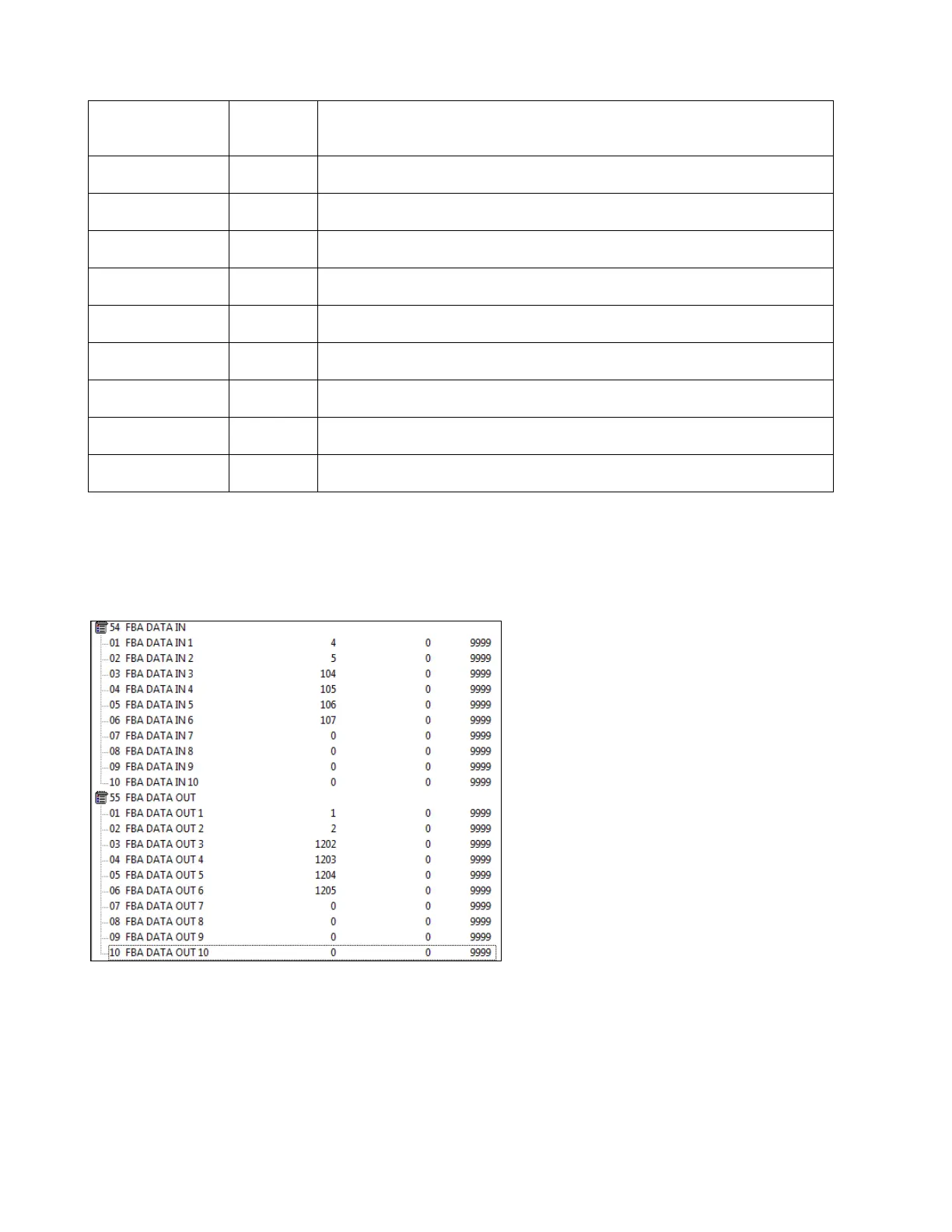

Figure 45 Example ACS355
