Configuring S7-1200 and S7-1500 PLC
In the following example, S7-1200 PLC is configured. Similarly, you can configure S7-1500 PLC.
To configure TIA Portal with the PLC and ABB Drive libraries, follow these steps:
1. To configure S7-1200 PLC, follow steps 1…3 in Configuring S7-300 PLC.
2. Select Add new device in the left pane and select the required PLC and then click Add.

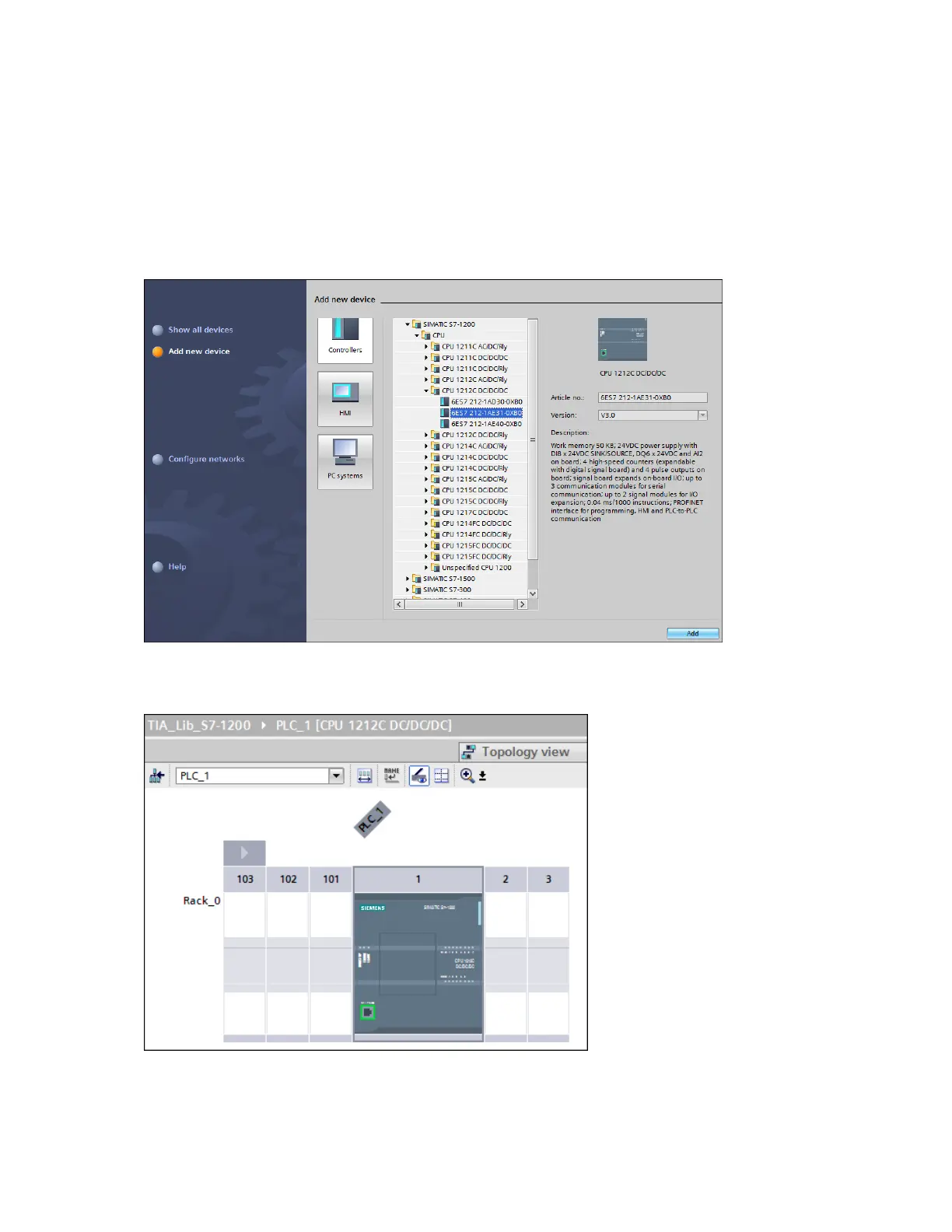

Figure 108 Adding new device S7-1200
New PLC device is added to hardware configuration.
Figure 109 PLC device S7-1200
