Downloading configuration to PLC
1. Click to download the configuration to PLC.

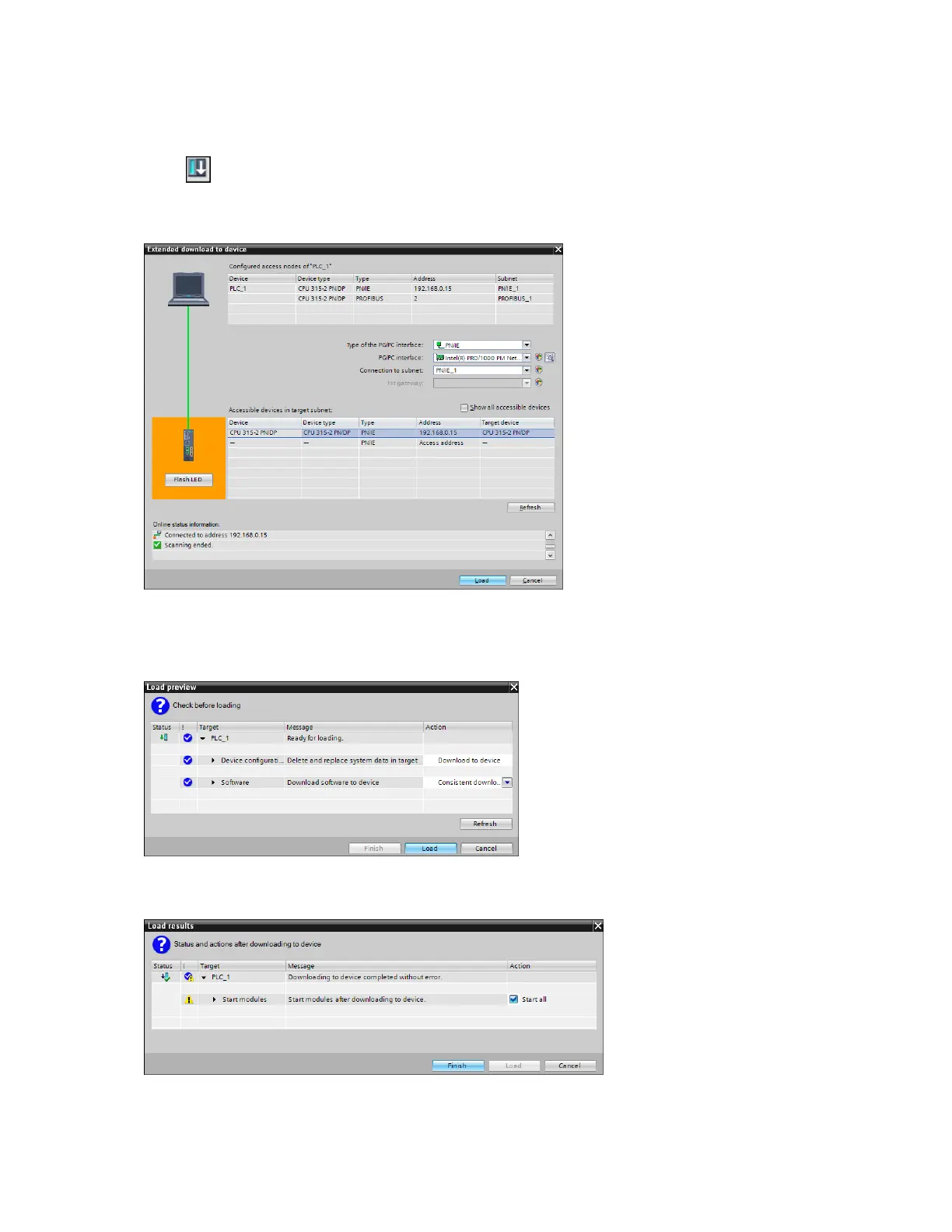

2. In the Extended download to device window, select PG/PC interface and Connection to subnet
from the drop-down list and click Load.
Figure 81 Extended download to device
The Load preview window is displayed with the PLC ready for loading.
3. Select the required PLC device and click Load.
Figure 82 Load preview
4. In the Load results window, select Start all and click Finish.
Figure 83 Load results
