ABB ACSM1 Series User Manual

93
Adding PLC tags to S7-300
1. In the Project tree pane, expand PLC tags and double-click Add new tag table to create
symbols.

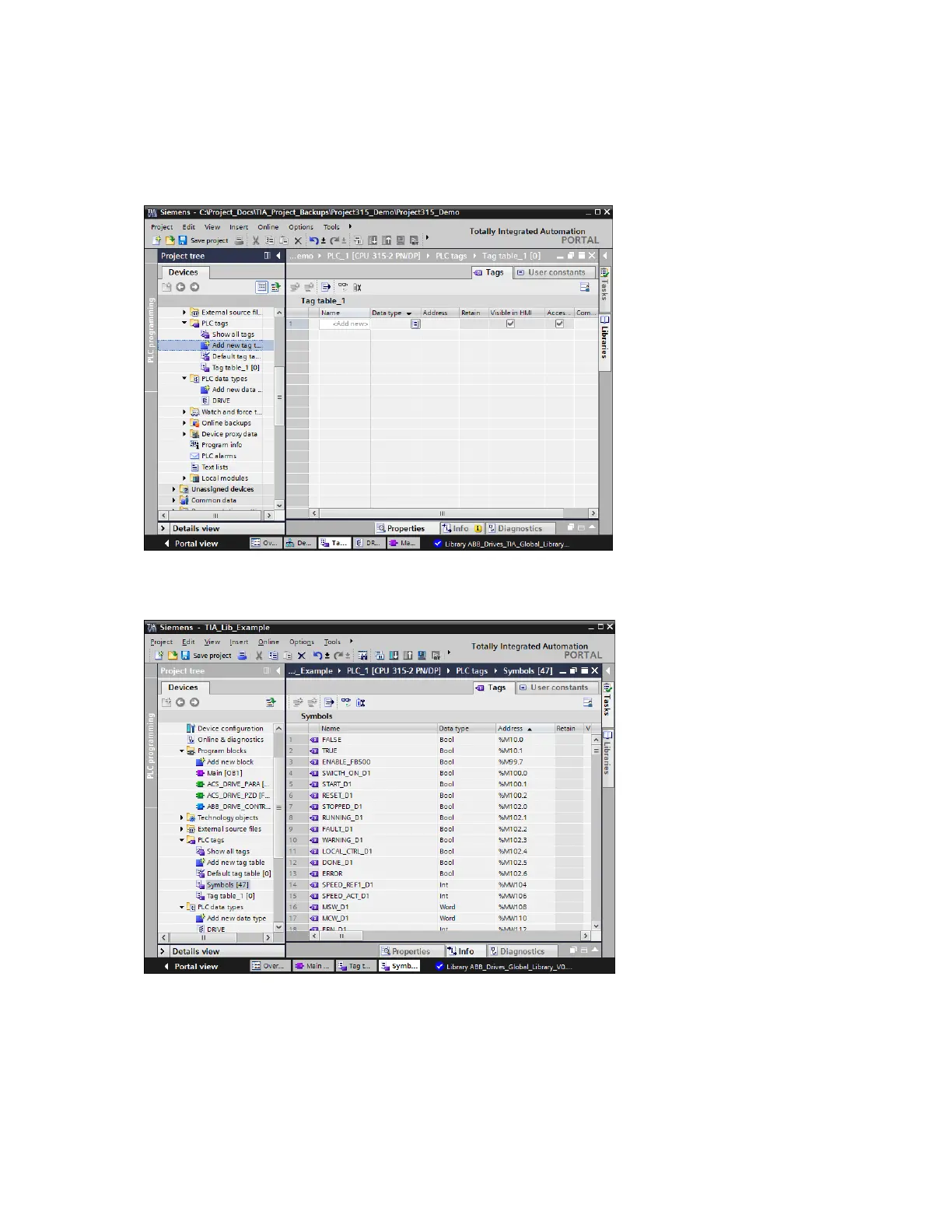

Figure 91 New tag table
2. Add tag Name, Data type and Address to connect block inputs and outputs.
Figure 92 PLC tags
For information on Data types of tags, see sections Block variables and data types (page 60),
Block variable and data types for FC501 (page 66) and Block variables and data types for FC500
(page 69).

ABB ACSM1 Series Specifications

General

Product Type	AC drive
Control Type	Scalar Control
Communication Interfaces	Modbus RTU
Protection Class	IP20
Mounting	Wall Mounting
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Storage Temperature	-40°C to +70°C
Input Voltage	380 V to 480 V AC
Operating Temperature	-10 to +40 °C (without derating)
