After selecting ABB drive libraries, a Libraries pane is displayed with the selected libraries at the right
side of the TIA portal window.

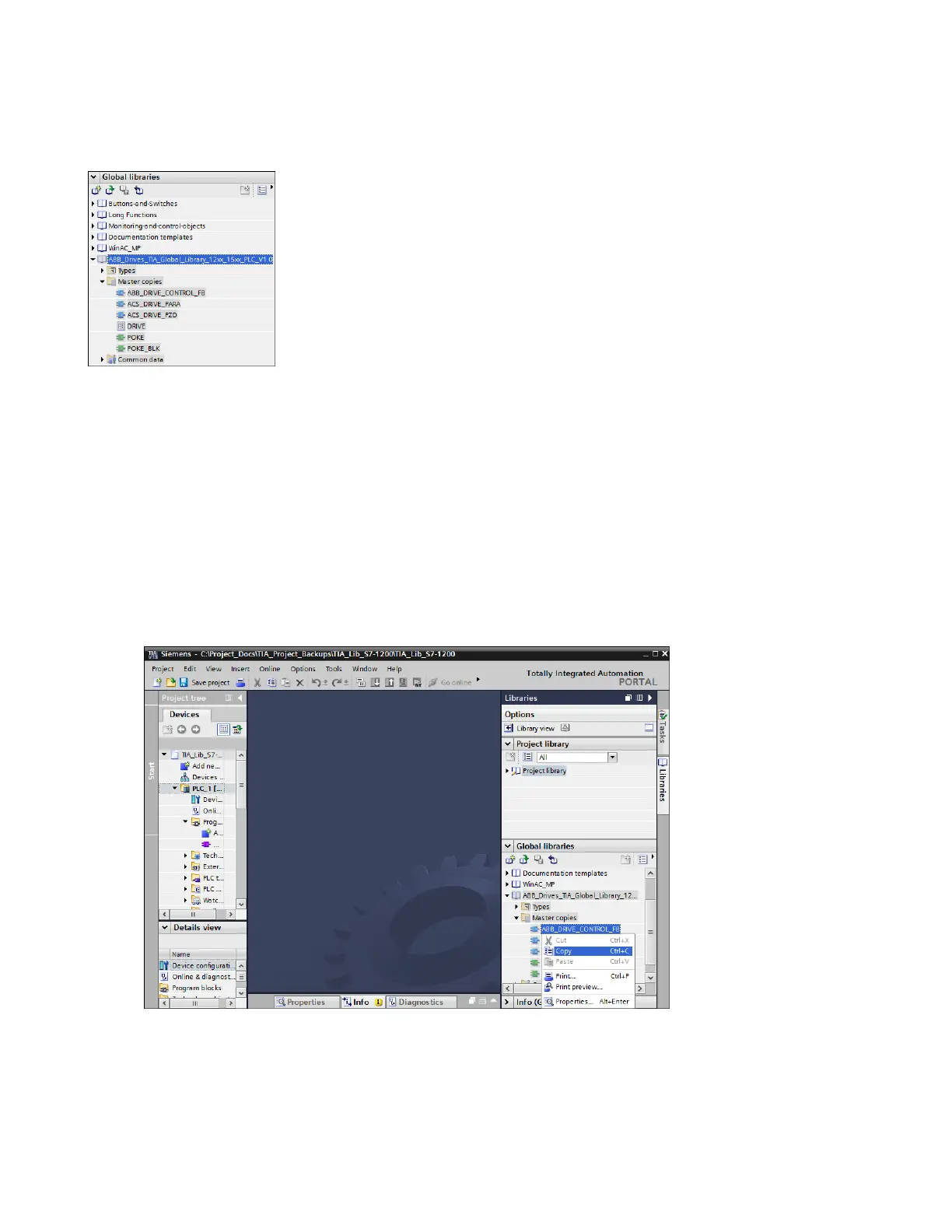

Figure 138 Global libraries pane
Following are the libraries available for S7-1200 series:
 ABB_DRIVE_CONTROL_FB (FB500)
 ACS_DRIVE_PARA (FB501)
 ACS_DRIVE_PZD (FB502)
 POKE (FC1, supported block for FB501 and FB502)
 POKE_BLK (FC2, supported block for FB501 and FB502)
Note: POKE and POKE_BLK are SCL language blocks used in FB501 and FB502. Copy these blocks to
Program blocks, if not compilation errors are generated while compiling FB501 and FB502 blocks.
3. Expand ABB_Drives_TIA_Global_Library → Master copies and right-click
ABB_DRIVE_CONTROL_FB and then click Copy.
Figure 139 Libraries

ABB ACSM1 Series Specifications

General

Product Type	AC drive
Control Type	Scalar Control
Communication Interfaces	Modbus RTU
Protection Class	IP20
Mounting	Wall Mounting
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Storage Temperature	-40°C to +70°C
Input Voltage	380 V to 480 V AC
Operating Temperature	-10 to +40 °C (without derating)
