Example 2: The Instance Data Block of FB500 ABB_DRIVE_CONTROL_FB has been named
ABB_DRIVE_CONTROL_FB_DB and an ACS880 with FENA-11 PRONET module has been
used.

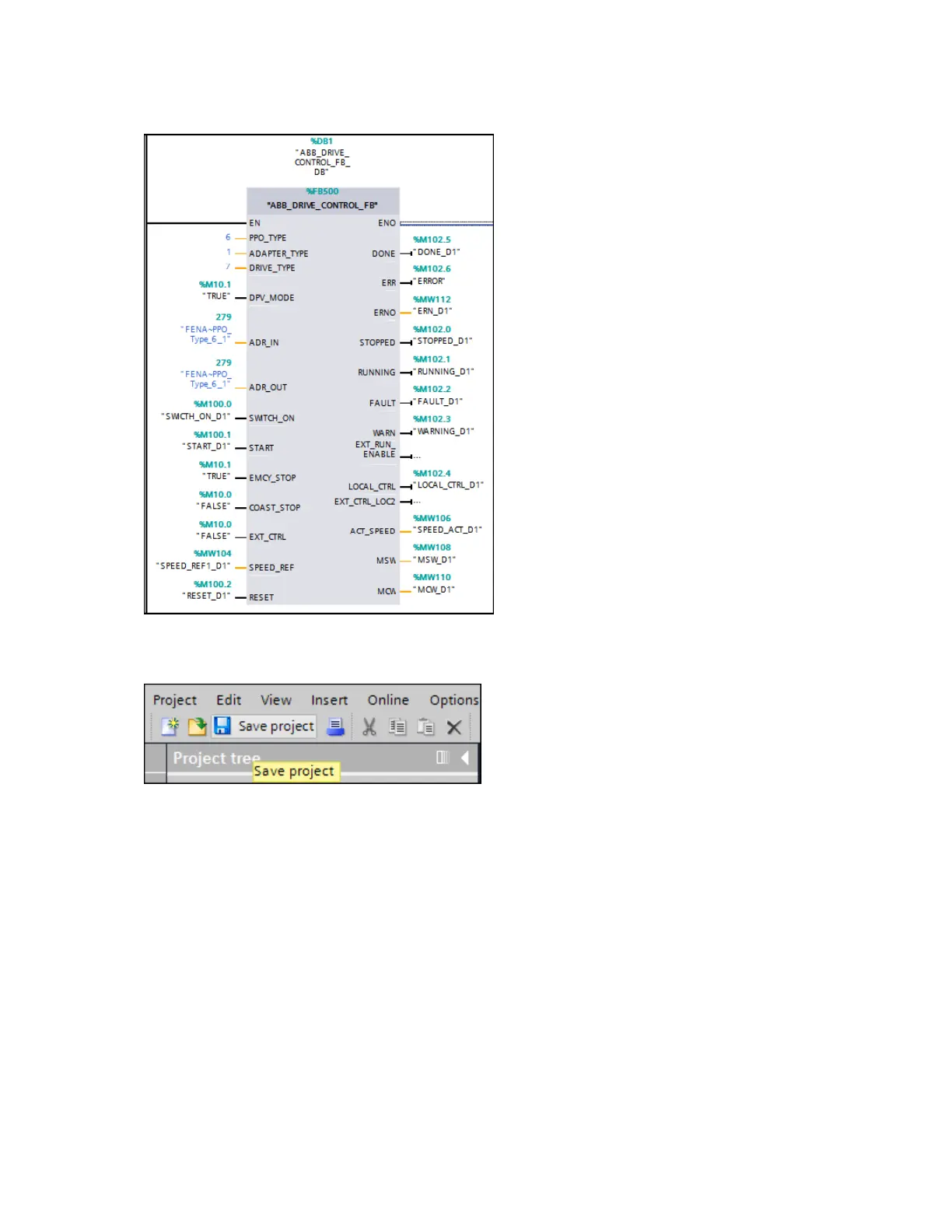

Figure 152 Example FENA-11
6. Click Save to save to the project.
Figure 153 Save project
After saving and compiling, download the program to a PLC.
To set the drive in standby mode and run mode, see sections Setting the drive in standby mode (page
61) and Setting the drive in run mode (page 62).
To add watch and force tables, see section Adding watch and force tables (page 96).
