ABB ACSM1 Series - Page 47

47
3. In the Ethernet interface pop-up window, click New (1) and then click OK (2) → OK (3) to
activate the Ethernet connection.

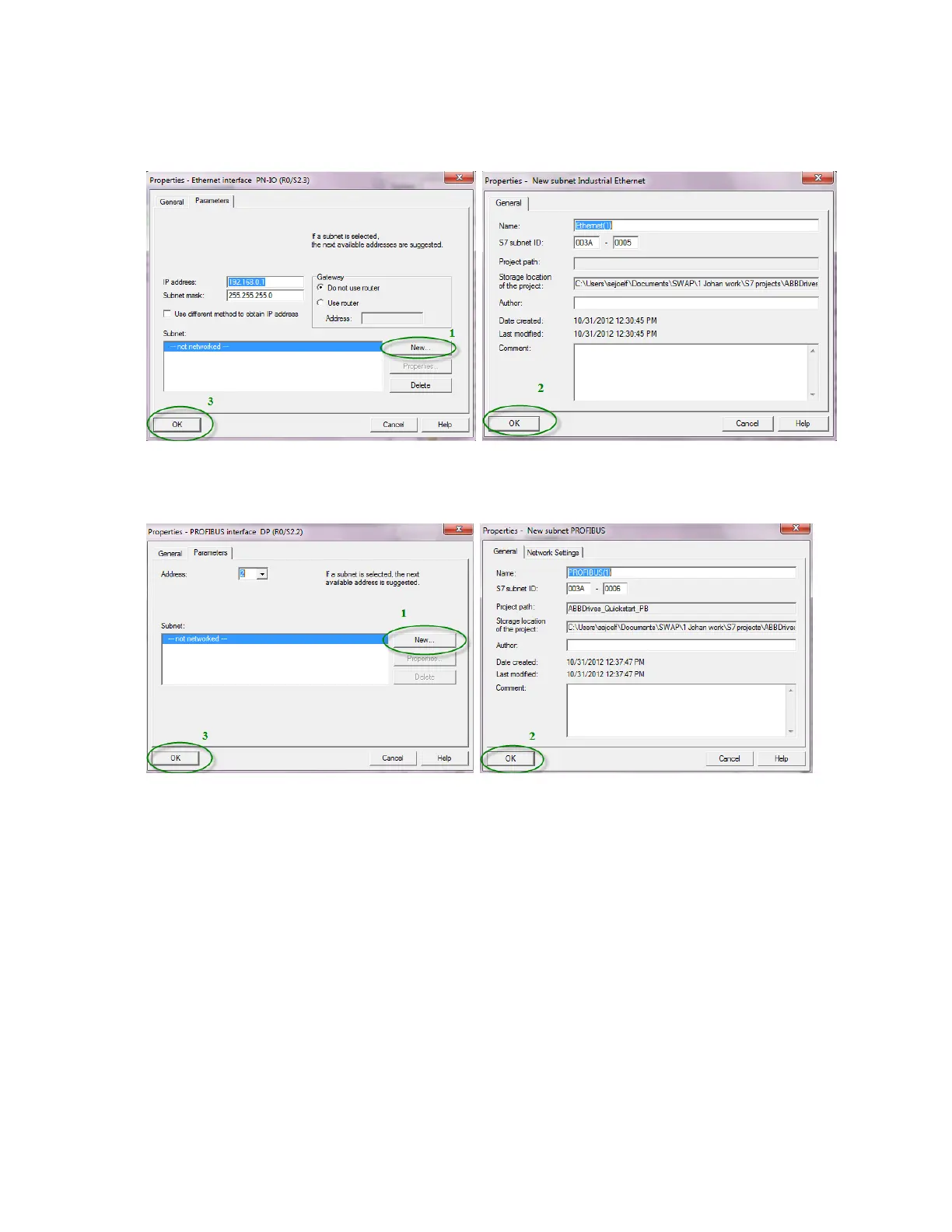

Figure 8 Ethernet interface
If the PROFIBUS interface window pops up, press New (1) and then click OK (2) → OK (3) to
activate the PROFIBUS connection. Otherwise follow instructions below these pictures.
Figure 9 PROFIBUS properties
