77

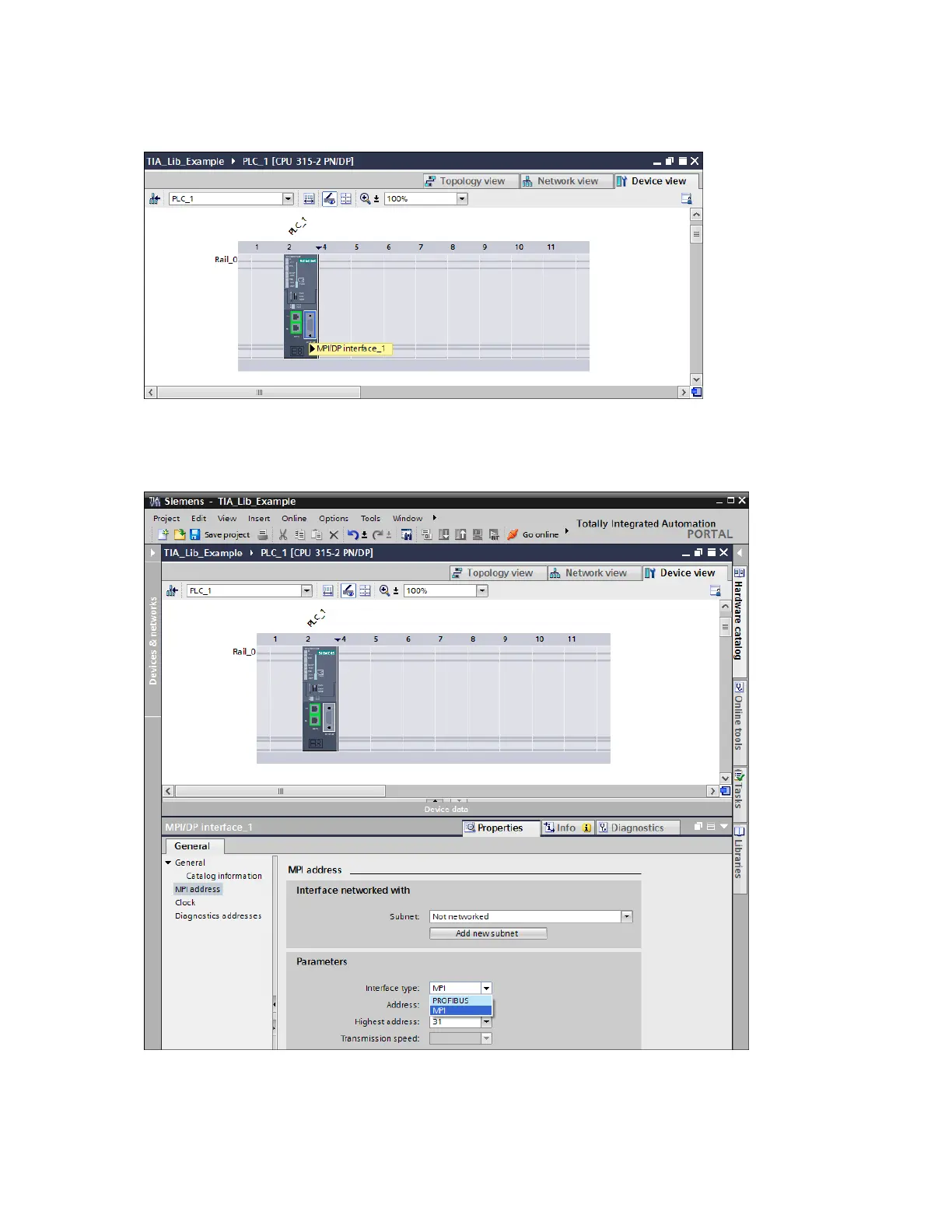

6. In the Device view, select PLC_1 (MPI/DP interface) which is highlighted.
Figure 57 Selecting MPI DP
7. In the General tab, select MPI address and in the Parameters Interface type drop-down list,
select PROFIBUS as interface to assign PROFIBUS address.
Figure 58 MPI PROFIBUS address change
