87
4. In the Hardware catalog pane, double-click the required PPO type.
The selected PPO type is displayed in the Device overview.

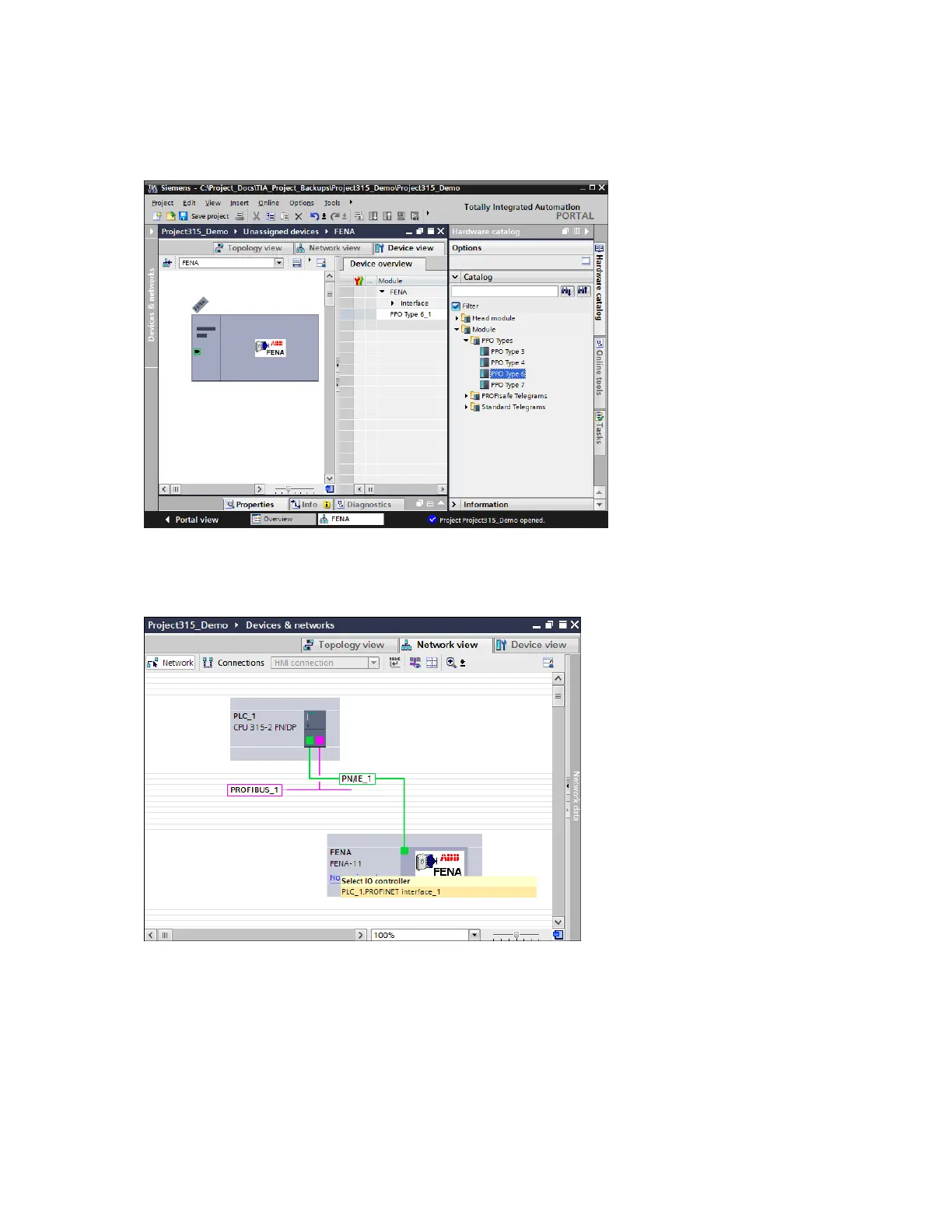

Figure 78 PPO type
5. In the Network view, click Not assigned and select PLC_1.PROFINET interface_1 to assign
PLC to the ABB drive.
Figure 79 Assigning PLC PROFINET
