ABB ACSM1 Series User Manual

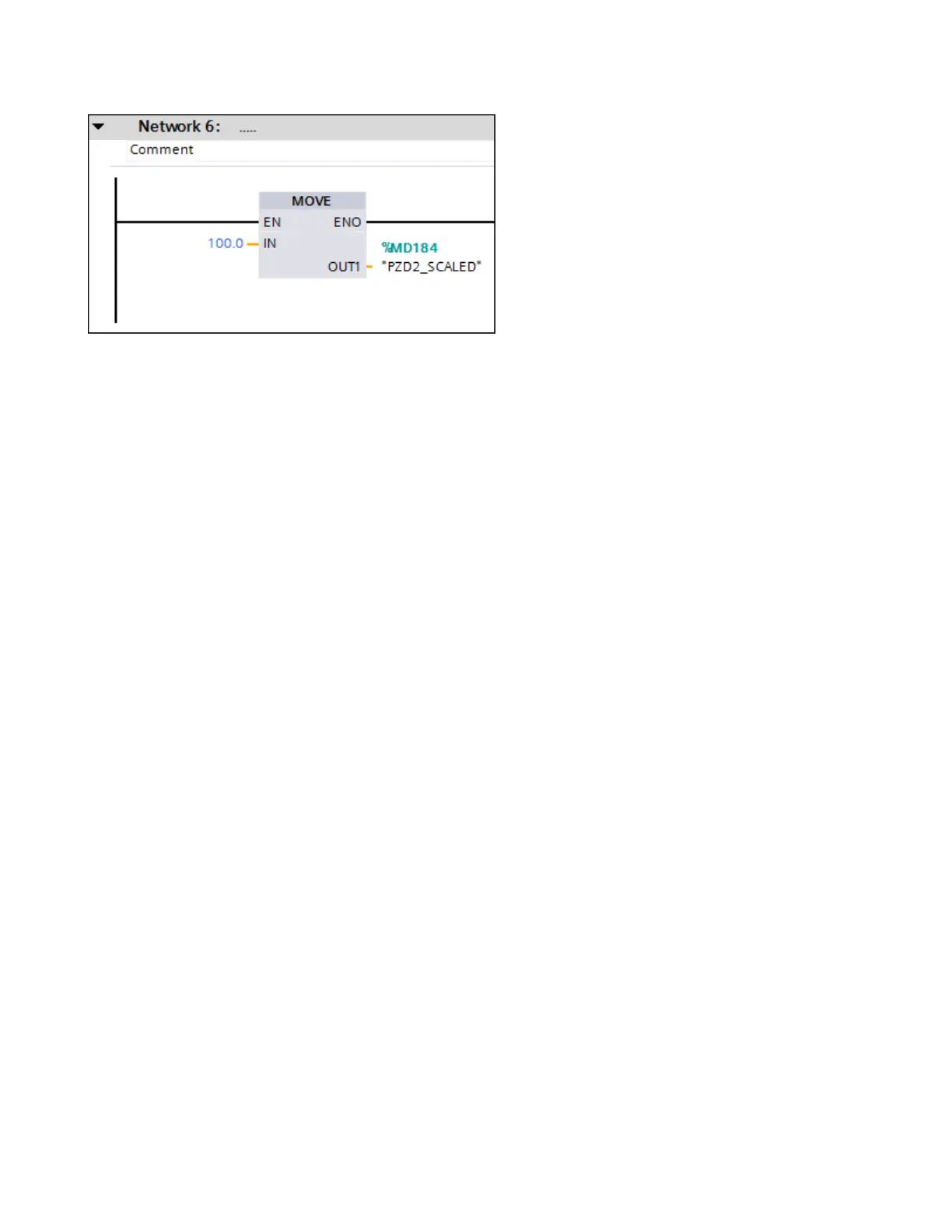

If you want to scale Process Data values, set the scaling values in the program before calling FC501
ACS_DRIVE_PZD block. See example below where PZD3 is scaled with the value 100.
Figure 103 Scaling process data values
For more information on mapping fieldbus process data parameters of the drive according to the
application, see section Scalable variables and data types (page 68 ).

ABB ACSM1 Series Specifications

General

Product Type	AC drive
Control Type	Scalar Control
Communication Interfaces	Modbus RTU
Protection Class	IP20
Mounting	Wall Mounting
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Storage Temperature	-40°C to +70°C
Input Voltage	380 V to 480 V AC
Operating Temperature	-10 to +40 °C (without derating)
