ABB Advant Controller 450 - Figure 5-2. Maximum Cabinet Configuration for Advant Controller 450 with S100 IO Assembled in RM500 V1 Cabinets; Table 5-1. RM500 V1 Configurations for Advant Controller 450 with S100 IO

Advant Controller 450 Product Guide
Section 5.2 Product Design
3BSE 015 953R201 Rev B 5-3
NOTE
DI boards are the last group. Connection units for higher voltage than 24 V
occupies more space than the corresponding units for 24 V. Expansion with the
extra cabinet no 7 may be necessary.

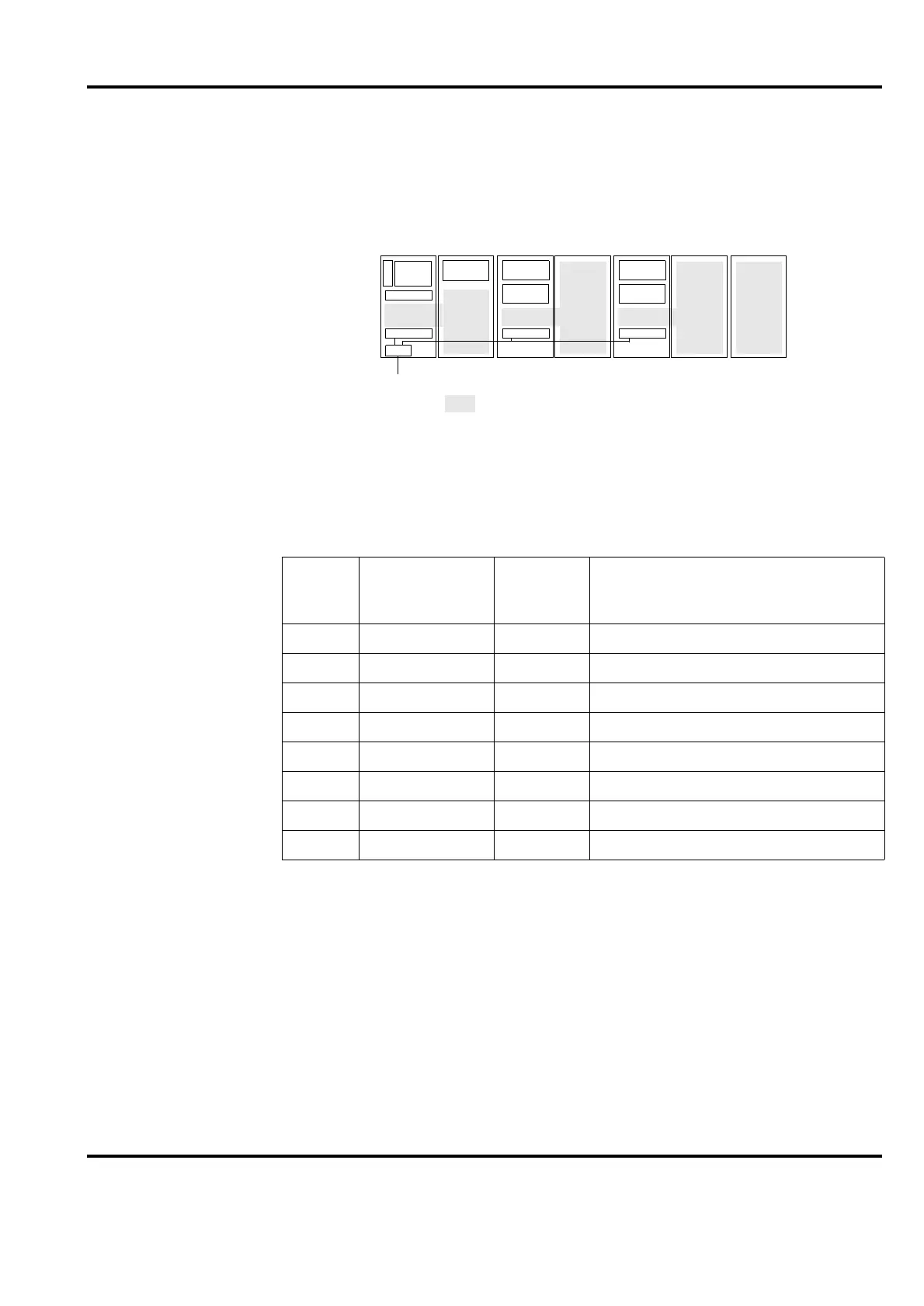

Figure 5-2. Maximum cabinet configuration for Advant Controller 450 with
S100 I/O assembled in RM500V1 cabinets
Table 5-1. RM500V1 configurations for Advant Controller 450 with S100 I/O
Configur
ation
RM500V1
cabinet
No
No. of I/O
Subracks
Remark
A1 1 (+7) 0
A2 1 - 2 (+7) 1
A3 1 - 3 2 Only I/O 2 subrack in cabinet 3
A4 1 - 4 (+7) 2 Only I/O 2 subrack in cabinet 3
A5 1 - 4 (+7) 3
A6 1 - 5 4 Only I/O 4 subrack in cabinet 5
A7 1 - 6 (+7) 4 Only I/O 4 subrack in cabinet 5
A8 1 - 6 (+7) 5
PS
PS
SW
Mains
I/O 2
I/O 3
I/O 1
Conn.
units
PS Power Supply
SW Power Switch
CTR
PS
I/O 4
I/O 5
Extra
Cabinet
12
3
45
6
7
