7 Operation
Safety instructions
When safe operation can no longer be assured
If it is apparent that safe operation is no longer possible, the
device should be taken out of operation and secured against
unauthorized use.
The possibility of safe operation is excluded:
• If the device is visibly damaged,
• If the device no longer operates,
• After prolonged storage under adverse conditions,
• After severe transport stresses.
LCD indicator
Note
For detailed information on the operation and parameterization
of the device, consult the associated operating instructions (OI)!
Note
All representations of the LCD indicator in these Commissioning
Instruction are examples.
The indications on the IED will usually differ from this.
LCD indicator
LCD display
Operating buttons for menu
navigation

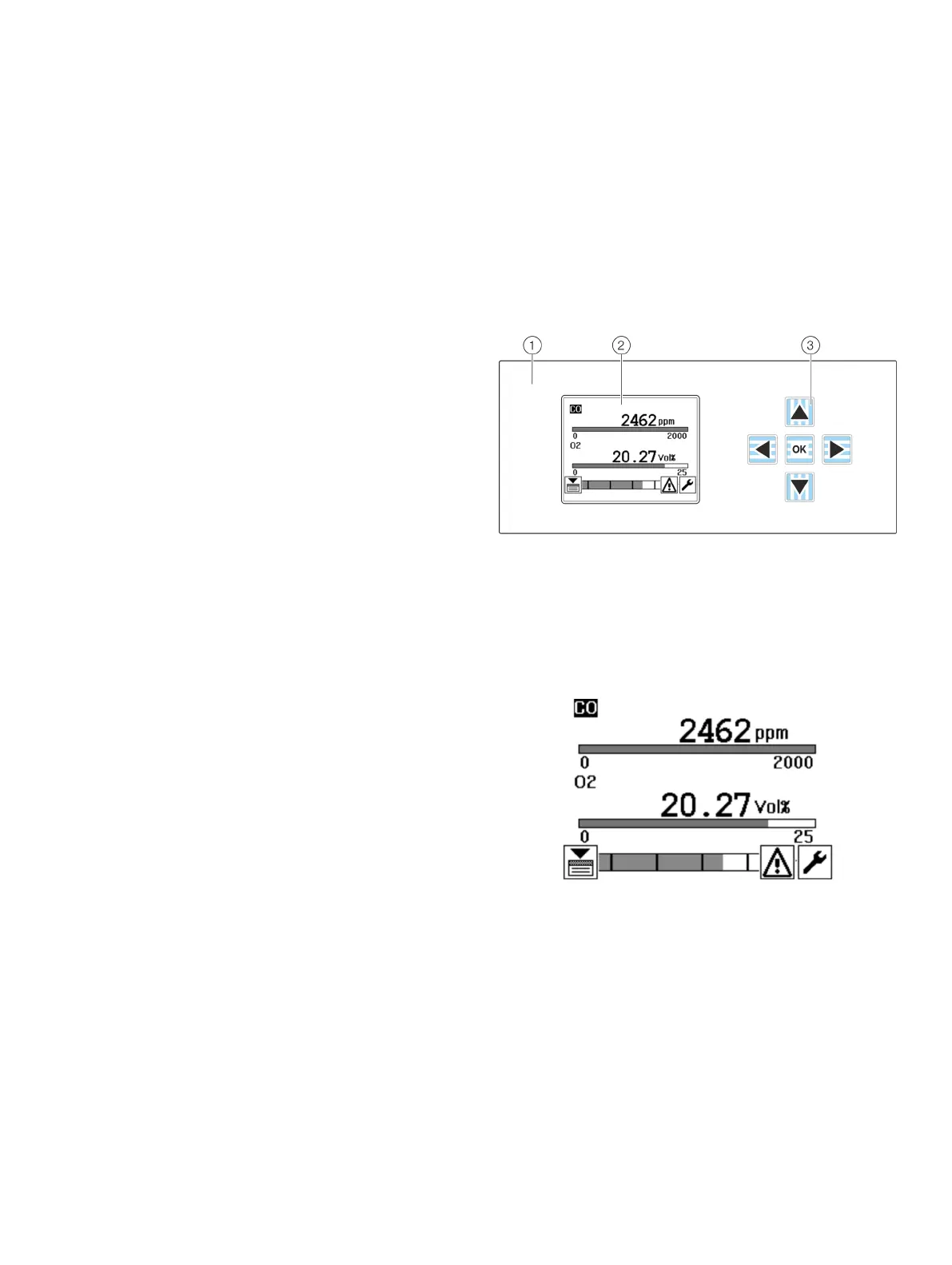

Figure 49: LCD indicator on the device
The gas analyzer is operated via the LCD indicator on the device.
LCD display in measurement mode
Figure 50: LCD display in measurement mode (example)
In measurement mode, the LCD display displays the name, the
measured value in numbers and the physical unit of the
measured value for each sample component.
If the name of the sample component flashes alternately with
the inverted display, this signals that the measured value is
outside the measuring range limits.
Status icons provide information on the operating condition of
the gas analyzer.
