74 EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C
… 4 Installation
… Position and design of the gas connections
Gas connections Magnos27 with Uras26 (model EL3020)

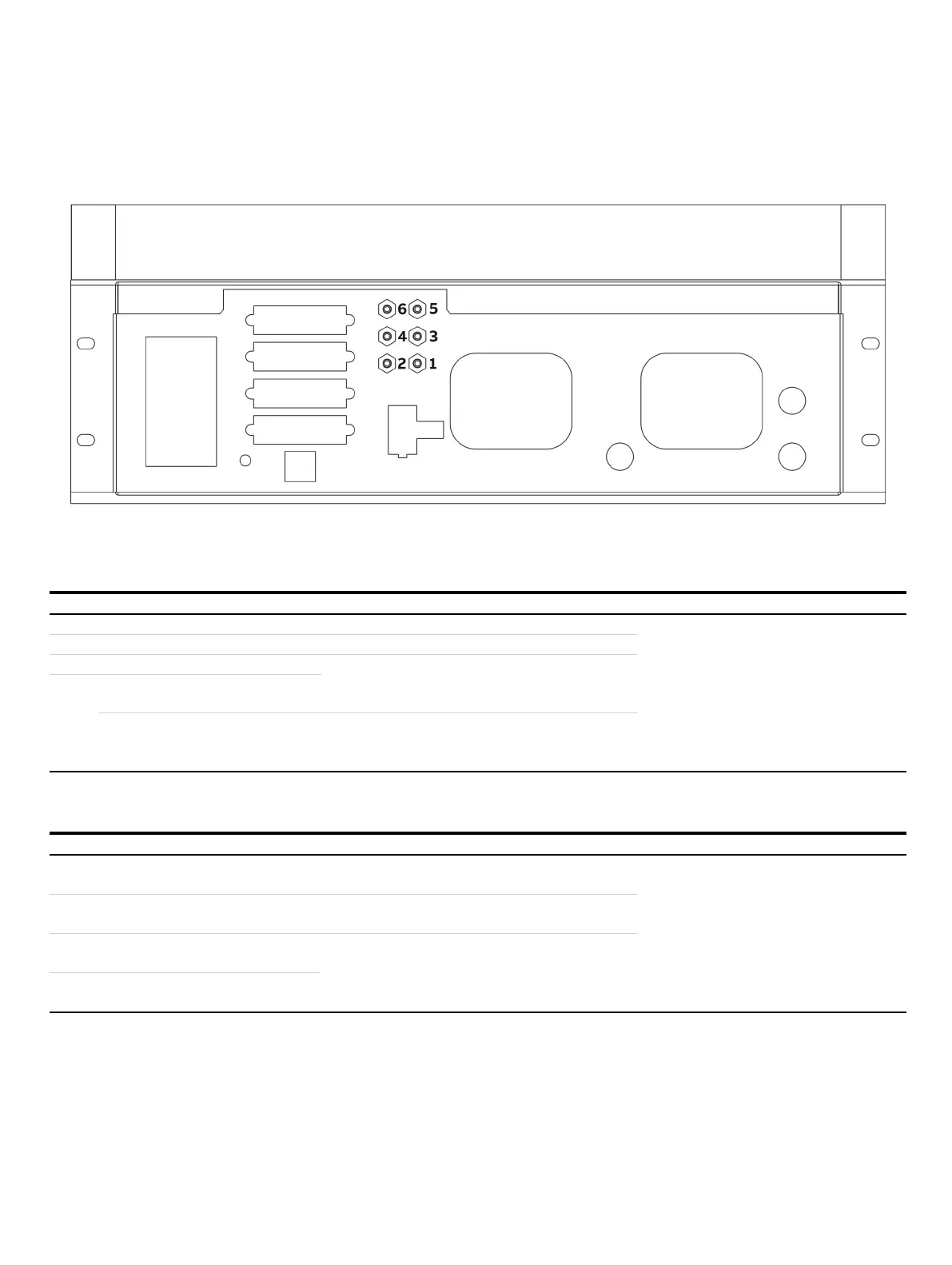

Figure 26: Gas connections Magnos27 with Uras26 (model EL3020)
Magnos27: Gas Connections
Pos.
Connection
Supplementary information
Version
3
Sample gas inlet
—
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
4
Sample gas outlet
—
5
Purge gas inlet analyzer
Not for the ‘pressure sensor connected to the outside by
hose’
option, not in combination with Uras26 with two
cells and separate gas paths
6
Purge gas outlet analyzer
Pressure sensor
For the ‘pressure sensor connected to the outside by hose’
option, not in combination with Uras26 with two cells and
separate gas paths
Uras26: Gas connections
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
(gas path 1)
—
Screwed connections with hose nozzles
(stainless steel
1.4305) for hoses with 4
mm inside
diameter
(included in scope of supply)
2
Sample gas outlet
(gas path 1)
—
5
Sample gas outlet
(gas path 2)
For optional second sample gas for Uras26 with two cells
and separate gas paths
6
Sample gas inlet
(gas path 2)
Note
The pressure sensor (standard, not for the ‘pressure sensor connected to outside by hose’ option) is internally connected as follows:
• In the output of the sample cell 1, for a sample cell and for two sample cells with separate gas paths.
• In the output of sample cell 2 for two sample cells in series.
