ABB EasyLine EL3000 - Sample Gas Inlet; Sample Gas Outlet

76 EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C
… 4 Installation
… Position and design of the gas connections
Gas connections ZO23 (model EL3040)

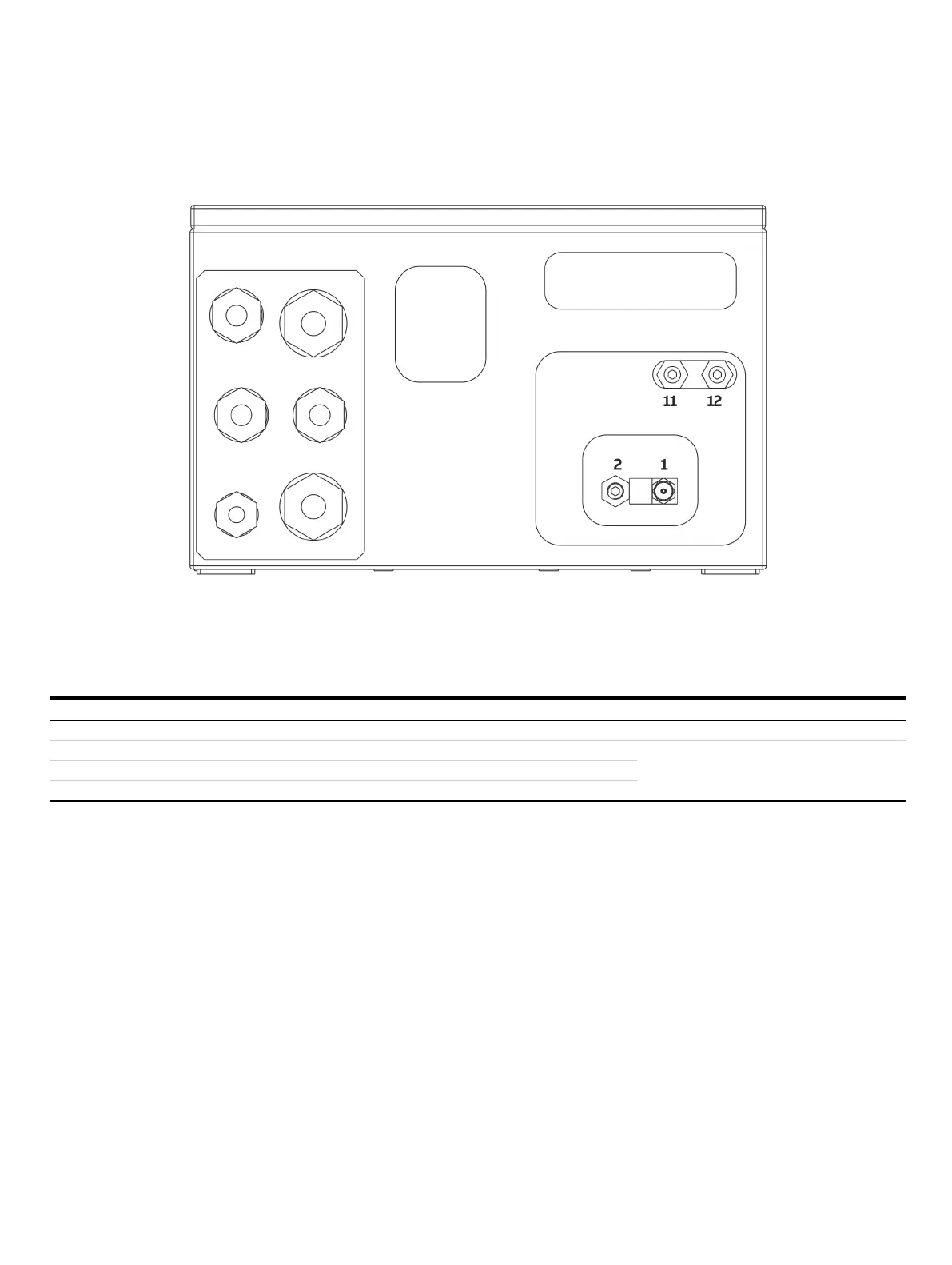

Figure 28: Gas connections ZO23 (model EL3040)
ZO23: Gas Connections
The measuring chamber is connected to the sample gas inlet connection via a stainless steel tube (inlet side) and to the sample gas
outlet connection via a FPM hose (outlet side).
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
3 mm Swagelok®
2
Sample gas outlet
—
⅛ NPT female thread for threaded connections
(not included in scope of supply)
11
Purge gas inlet (housing)
—
12
Purge gas outlet (housing)
—
