Gas connections Caldos27 (model EL3020)

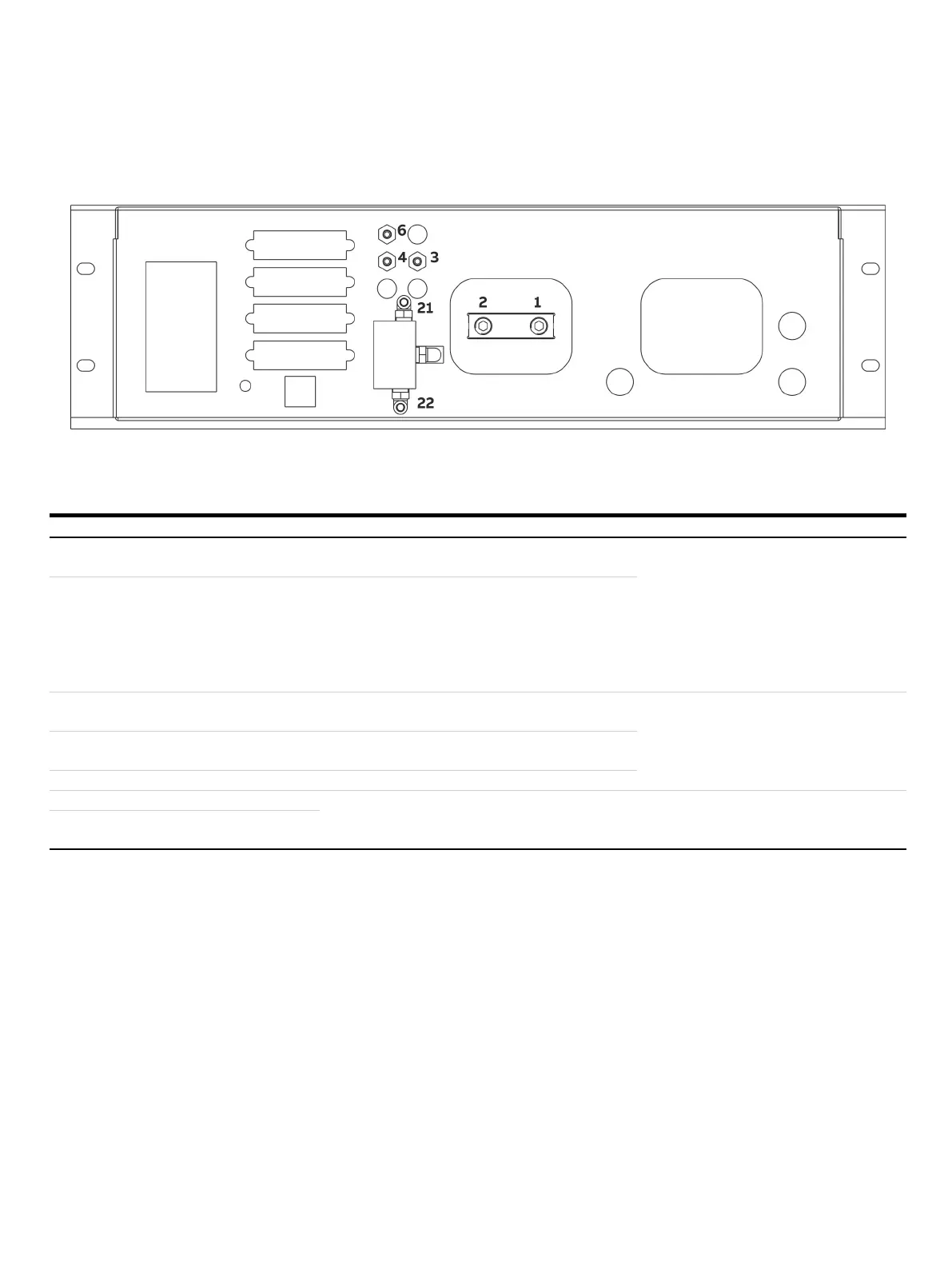

Figure 29: Gas connections Caldos27 (model EL3020)
Caldos27: gas connections
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
•
Connection of hose lines:
straight screw-
in socket (PP) with hose nozzles
for hoses with inside diameter 4 mm
(included in scope of delivery)
•
Connection of piping:
screw-in fittings
(not included in scope of delivery)
2
Sample gas outlet
—
3
Sample gas outlet
For ‘Integrated gas feed’ option, factory
-connected to
1 sample gas inlet
Screwed connections with hose nozzles (stainless
steel 1.4305) for hoses with 4
mm inside diameter
(included in scope of supply)
4
Sample gas inlet
For
‘Integrated gas feed’ option with flow sensor only
(without solenoid valve)
6
Pressure sensor
—
21
Sample gas inlet
On solenoid valve with ‘integral gas feed’ option
with
solenoid valve, pump, filter, capillary and flow sensor
Screwed fittings with hose nozzles (PVDF) for
hoses with 4
mm inside diameter
(included in scope of supply)
22
Test gas inlet
