60 EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C
… 4 Installation
… Position and design of the gas connections
Gas connections Limas23 with Magnos206 (model EL3020)

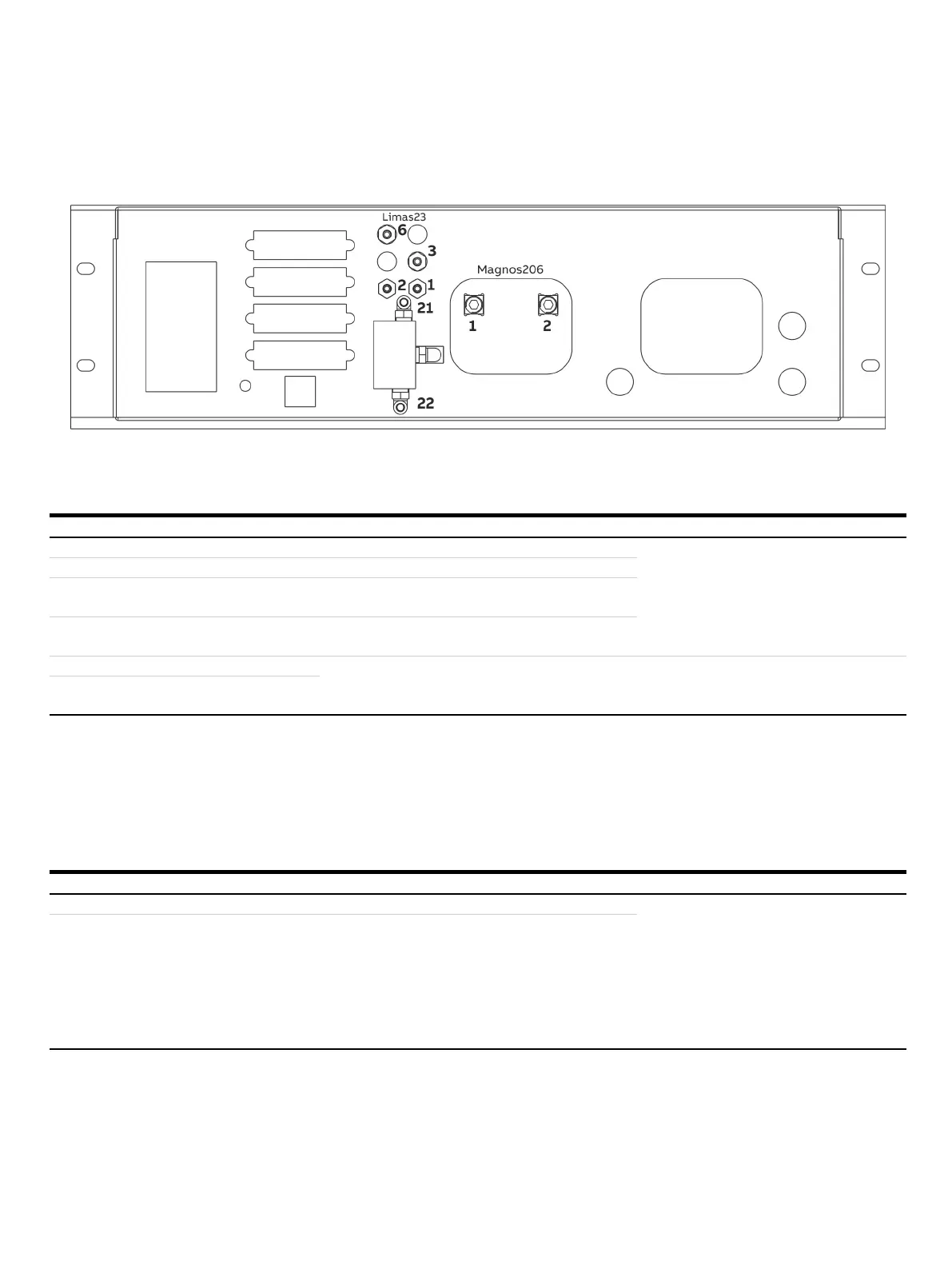

Figure 15: Gas connections Limas23 with Magnos206 (model EL3020)
Limas23: Gas connections
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
Without optional solenoid valve
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
2
Sample gas outlet
—
3
Sample gas outlet
With optional solenoid valve, factory
-connected to sample
gas inlet Pos. 1
6
Pressure sensor
For ‘Pressure sensor connected to the outside by hose’
option
21
Sample gas inlet
With optional solenoid valve
Screwed fittings with hose nozzles (PVDF) for
ho
ses with 4 mm inside diameter
(included in scope of supply)
22
Test gas inlet
Note
• The oxygen sensor is not possible in combination with Magnos206
• The pressure sensor (default, not used with the "pressure sensor outwards" option is internally connected at the output of the
sample cell.
Magnos206: Gas Connections
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
•
Connection of hose lines:
straight screw-
in socket (PP) with hose nozzles
for hoses with inside diameter 4 mm
(included in scope of delivery)
•
Connection of piping:
screw-in fittings
(not included in scope of delivery)
2
Sample gas outlet
—
Note
The sample gas inlet of Magnos206 can be connected to the sample gas output of Limas23 at the factory or have a separate sample
gas path without connection to Limas23.
